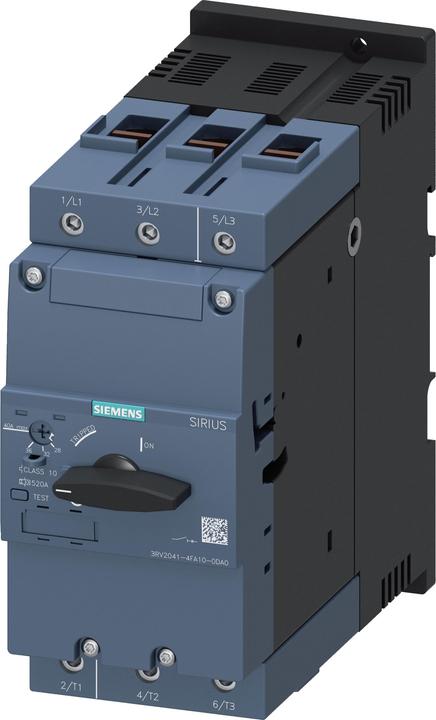

Siemens 3RV2041-4FA10-0DA0Circuit-breaker Bgr. S3
Product details
Circuit breaker size S3 for system protection without phase failure protection. A-release 28...40 A, N-release 520 A, screw connection. Standard switching capacity of SIRIUS 3RV2 circuit breakers for system protection ensures safe disconnection in case of short circuits and protects consumers and systems from overload, as well as providing safe isolation of the system from the grid. The compact and climate-resistant circuit breakers are optimized for use in consumer branches due to their low heat dissipation, naturally suitable for IE3/IE4 motors and equally for switching direct current. Worldwide approvals (e.g., IEC and UL/CSA) and applications in explosive environments (ATEX or IEC Ex) are standard. Device variants are available for motor protection (also with overload relay function), system protection, short-circuit protection of starter combinations, transformer protection, as main and emergency stop switches, and for use in IT networks. They come with screw or spring terminals for quick, maintenance-free, and vibration-resistant connections, and are optionally available with built-in auxiliary contacts. The comprehensive accessories, such as auxiliary contacts, auxiliary releases, signaling switches, etc., are uniform across all sizes. The use of various power supply options, such as the associated SIRIUS 3RV29 supply system, significantly reduces the main circuit wiring. The 3RV2 circuit breakers replace the proven series 3RV1. Simple, efficient, always up-to-date - the SIRIUS system modular concept.
Circuit breaker type | Circuit breaker |
Mounting type | Top-hat rail |
number of poles | 3 |
Length | 176 mm |
Width | 169 mm |
Item number | 36327772 |
Manufacturer | Siemens |
Category | Residual-current device |
Manufacturer No. | 3RV20414FA100DA0 |
Release date | 15.6.2023 |
Colour | Grey |
Exact colour description | Grey |
Circuit breaker type | Circuit breaker |
Mounting type | Top-hat rail |
Mounting type | Screw fastening |
number of poles | 3 |
Rated current | 40 A |
Rated voltage | 690 V |
voltage type | AC |
Protection type (IP code) | IP20 |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
Items per sales unit | 1 pcs. |
Length | 176 mm |
Width | 169 mm |
Height | 78 mm |
