Sinamics V90

Input voltage: 200-240 V 1/3-phase AC - 15 %/+ 10 % 5.0 A/3.0 A 45-66
Output voltage: 0 - input 2.6 A 0-330 Hz
Motor: 0.4 kW
Protection class: IP20

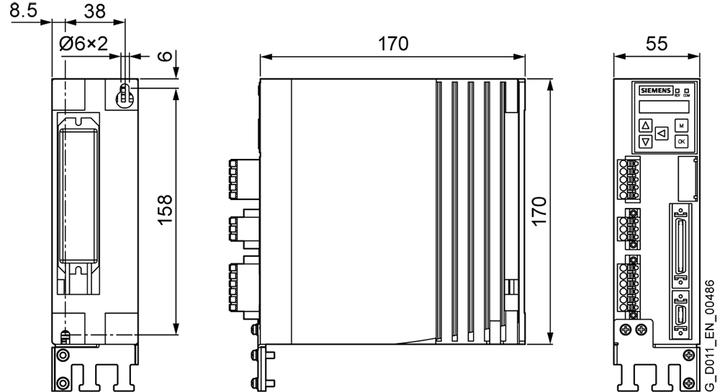

Size B, 55x170x170 (WxHxD)

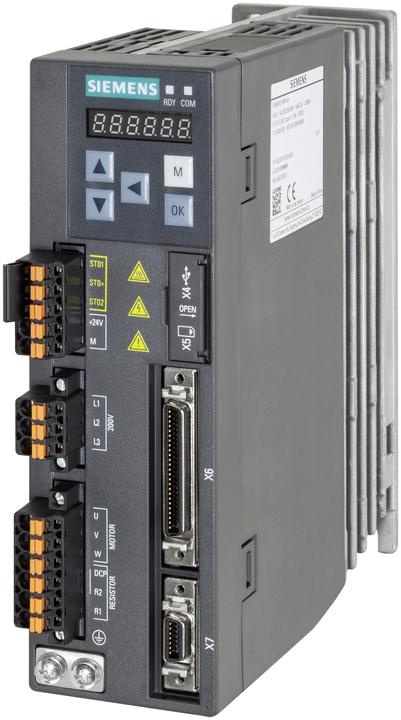

The Sinamics V90 servo drive is a performance-optimized and user-friendly servo drive system for a variety of motion control tasks, focusing on dynamic movement and processing. It is suitable for connecting the Simotics S-1FL6 servo motor, and together they form a cost-effective servo drive system. This system is characterized by reliable operation, optimized performance, and ease of use. When combined with the Simatic Controller, it creates a powerful team in the TIA Portal.

Depending on the version, the free commissioning tool Sinamics V-Assistant can be downloaded for quick and easy startup. The Sinamics V90 servo drive is suitable for operation on single-phase and three-phase networks and covers a power range from 0.1 kW to 2.0 kW with four sizes, as well as a voltage range from 200 V to 240 V. The system can be easily integrated via PTI, Profinet, USS, and Modbus RTU.

The Sinamics V90 servo drive can be customized to meet the user's requirements through various options such as connection cables, line filters, connectors, and additional accessories. Sinamics - simply my drive.
