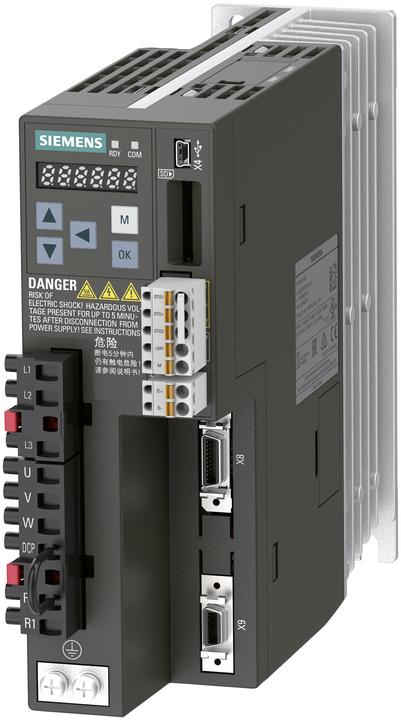

Siemens Digital Industries SINAMICS V90 Frequency Converter 6SL3210-5FE10-4UF0

Manufacturer: Siemens Digital Industries
Designation: SINAMICS V90 Frequency Converter
Type: 6SL3210-5FE10-4UF0
Mains Voltage: 380-480 V
Mains Frequency: 60 Hz
Number of Input Phases: 3
Relative Symmetrical Mains Voltage Tolerance: 10 %
Number of Digital Outputs: 2
Number of Digital Inputs: 4
With Control Element: No
Protection Class (IP): IP20
Height: 180 mm
Width: 60 mm
Depth: 200 mm

Additional Details:
SINAMICS V90 with PROFINET
Input Voltage: 380-480 V, 3 A -15 %/+10 %, 1.5 A, 45-66 Hz
Output Voltage: 0 - 1.2 A, 0-330 Hz
Motor: 0.4 kW
Protection Class: IP20
Size: AA 60x180x200 (WxHxD)

The SINAMICS V90 servo converter is a performance-optimized and user-friendly servo drive system designed for various motion control tasks with a focus on dynamic movement and processing. It is suitable for connecting the SIMOTICS S-1FL6 servo motor, creating a cost-effective servo drive system characterized by reliable operation, optimized performance, and ease of use. Together with the SIMATIC controller, it forms a powerful team in the TIA Portal.

For quick and easy commissioning, the free commissioning tool SINAMICS V-ASSISTANT can be downloaded. The SINAMICS V90 servo converter is suitable for operation on three-phase networks and covers a power range of 0.4 kW to 7.0 kW with four sizes, as well as a voltage range of 380 V to 480 V.

The system can be easily integrated via PTI, PROFINET, USS, and Modbus RTU. The SINAMICS V90 servo converter can be individually tailored to the user's requirements with various options such as connection cables, mains filters, connectors, and additional accessories.

SINAMICS - simply my drive.
EAN: 4042948671801.
