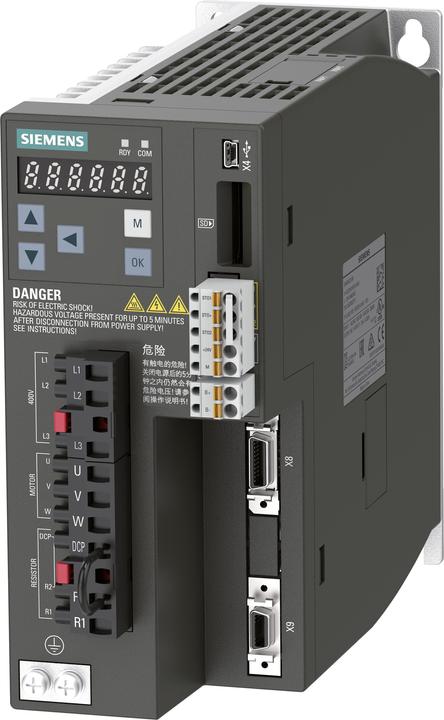

Siemens Digital Industries SINAMICS V90 Frequency Converter 6SL3210-5FE10-8UF0

Manufacturer: Siemens Digital Industries
Designation: SINAMICS V90 Frequency Converter
Type: 6SL3210-5FE10-8UF0
Mains Voltage: 380-480 V
Mains Frequency: 60 Hz
Number of Input Phases: 3
Relative Symmetrical Mains Voltage Tolerance: -15 %
Number of Digital Outputs: 2
Number of Digital Inputs: 4
With Control Element: No
Protection Class (IP): IP20
Height: 180 mm
Width: 80 mm
Depth: 200 mm

Further Details:
SINAMICS V90 with PROFINET
Input Voltage: 380-480 V, 3 A - 15 % / + 10 %, 2.6 A, 45-66 Hz
Output Voltage: 0 - 2.1 A, 0-330 Hz
Motor: 0.75 kW
Protection Class: IP20
Size A, 80x180x200 (WxHxD)

The SINAMICS V90 servo converter is a performance-optimized and easy-to-use servo drive system for a variety of motion control tasks, focusing on dynamic movement and processing. It is suitable for connecting the SIMOTICS S-1FL6 servo motor, which together form a cost-effective servo drive system characterized by reliable operation, optimized performance, and easy handling. In combination with the SIMATIC controller, it creates a powerful team in the TIA Portal.

Depending on the version, the free commissioning tool SINAMICS V-ASSISTANT can be downloaded for quick and easy commissioning. The SINAMICS V90 servo converter is suitable for operation on three-phase networks and covers a power range from 0.4 kW to 7.0 kW with four sizes, as well as a voltage range from 380 V to 480 V.

The system can be easily integrated via PTI, PROFINET, USS, and Modbus RTU. The servo converter can be individually tailored to the user's requirements with various options such as connection cables, line filters, connectors, and additional accessories.

SINAMICS - simply my drive.
EAN: 4042948671818.
