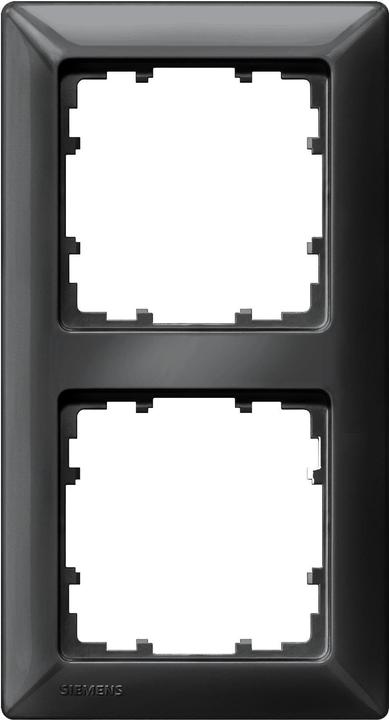

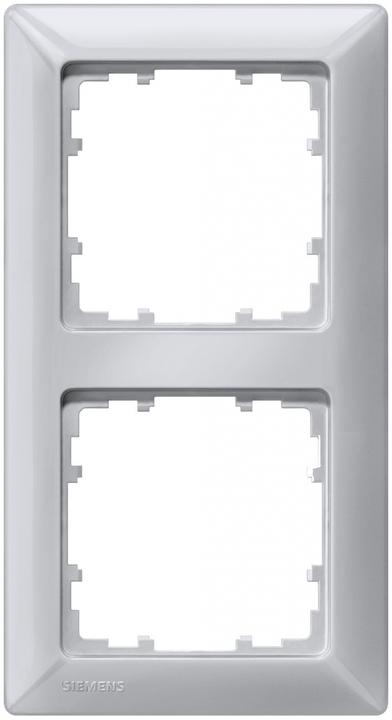

Siemens Digital Industry Profile Frame 5TG1812

Manufacturer: Siemens Digital Industry
Description: TWS Profile Frame, 2-fold
Type: 5TG1812
Number of Units: 2
Mounting Direction: horizontal and vertical
Number of Modules Horizontal (in modular design): 2
Number of Modules Vertical (in modular design): 2
Flush Mounting: yes
Suitable for Underfloor Duct Box: no
Suitable for Device Installation Channel: no
Suitable for Built-in Installation: no
Text Field/Label Area: no
Material: Plastic
Material Quality: Thermoplastic
Halogen-Free: yes
Antibacterial Treatment: no
Surface Protection: other
Surface Finish: glossy
Color: titanium white
RAL Number (similar): 9010
Transparent: no
With Hinged Cover: no
Protection Class (IP): IP20
Impact Resistance: > IK10
Mounting Type: Clamp Mounting
Width: 80 mm
Height: 151 mm
Installation Width: 151 mm
Installation Height: 80 mm
Diameter of Hole (Opening): 68 mm

Siemens Digital Industry Profile Frame 5TG1812: additional details
DELTA Profile titanium white frame 2-fold, 151x80 mm

Our extensive DELTA product range offers a wealth of individual design options through its stylish shapes and color variety, skillfully enhancing the aesthetics of any room. DELTA design components such as switches and frames are high-quality and durable, ensuring reliable function even in extreme wall conditions with the 3-mm plaster compensation. For your room design, various design surfaces made from high-quality materials like glass, wood, metal, and plastic in current colors are available. Special versions such as switches with lighting or label fields, as well as additional surfaces for multimedia and communication, are also available. DELTA switches and sockets - design and quality perfected by Siemens.
EAN: 4001869041902.
