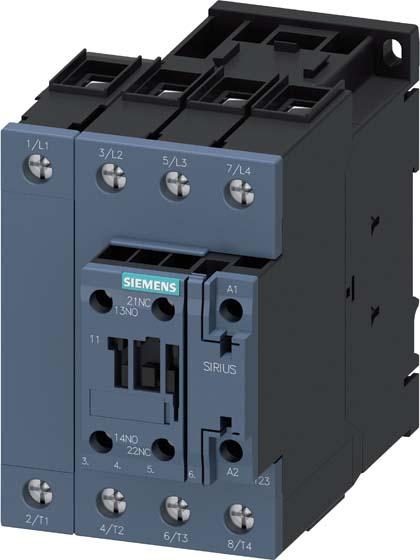

Siemens digital industrial contactor 3RT2336-1NP30

Manufacturer: Siemens Digital Industries
Designation: Contactor 4S, 60A, 175-280VAC/DC
Type: 3RT2336-1NP30
Rated control supply voltage Us at AC 50 Hz: 175-280 V
Rated control supply voltage Us at AC 60 Hz: 175-280 V
Rated control supply voltage Us at DC: 175-280 V
Voltage type for actuation: AC/DC
Rated operational current Ie at AC-1, 400 V: 60 A
Rated operational current Ie at AC-3, 400 V: 38 A
Suitable for series mounting: Yes
Number of auxiliary contacts as make contacts: 1
Number of auxiliary contacts as break contacts: 1
Connection type main circuit: Screw connection
Number of make contacts as main contacts: 4

Further details:
Contactor, AC-1, 60A/400 V/40 °C, S2, 4-pole, AC/DC 175-280V, with varistor, 1S+1Ö, screw connection. The SIRIUS 3RT23 contactor is designed for switching resistive loads. 3RT23 contactors are part of the SIRIUS modular system with optimally matched products, offering high performance combined with a compact design and high contact reliability. They can be combined in various ways with other components in the load feeder, and many device combinations are factory-tested. The contactors provide the optimum connection to the control system for every application (parallel, via ASi or IO-Link). Integrated auxiliary switches reduce the complexity of your setup, and the front connections allow for easy wiring. The 3RT23 contactors are climate-proof and approved worldwide (e.g., IEC and UL/CSA). They are available in various sizes and a wide power range for AC and DC actuation. In addition to screw connection technology, the units are also available with a spring-cage connection for fast, maintenance-free, and vibration-proof connection. The comprehensive range of accessories, such as auxiliary contacts and auxiliary releases, is standardized for all sizes. Simple, efficient, and always up-to-date - the SIRIUS modular system.
EAN: 4011209942875.
