End current circuits protect and monitor protective switching devices such as circuit breakers or residual current devices, which are used close to the consumer in end current circuits. In the event of overload, short circuit, or fault arcs, they disconnect the affected circuit from the network. Measuring and communication-capable circuit breakers 5SL6 COM and AFDD/LS switches 5SV6 COM collect information about the switch status and faults in the circuit. With the auxiliary/fault signal switches 5ST3 COM, standard circuit breakers 5SY, 5SP4, and 5SL as well as residual current devices 5SV3 and FI/LS switches 5SU1/5SV1 can be easily and compactly expanded with measurement and communication functions. Communication-capable devices can be wirelessly connected to the data transceiver 7KN Powercenter 1000. This collects the measurement data and transmits it for visualization and evaluation to mobile devices, PCs, or higher-level IoT interfaces, which make it available for cloud applications. Transparency and system safety are increased.

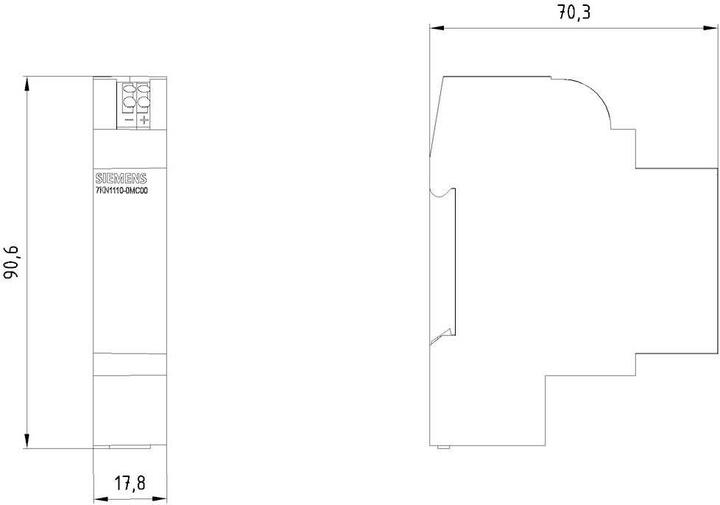

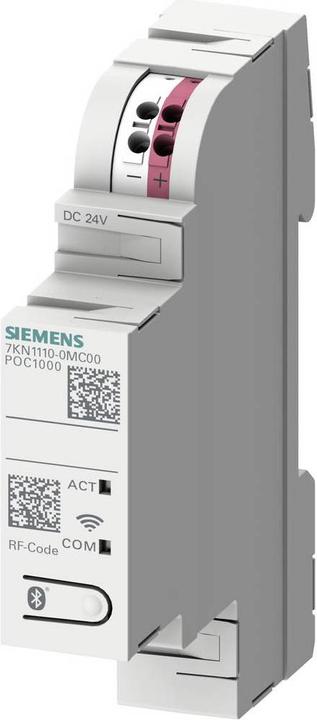

The data transceiver 7KN Powercenter 1000 collects data for communication and measurement-capable circuit breakers 5SL6 COM, AFDD/LS switches 5SV6 COM, and auxiliary/fault signal switches 5ST3 COM. It communicates wirelessly within a switchgear field or installation distributor with up to 24 end devices. The measurement data is stored in the 7KN Powercenter 1000 for a period of up to 30 days. The data can be retrieved on-site via Bluetooth with a mobile device or forwarded to higher-level systems using Modbus TCP. For example, energy flows can be visualized and optimized using the energy monitoring system SENTRON powermanager. Through the IoT data platform 7KN Powercenter 3000, the collected data can be transmitted directly to a web server or cloud applications for evaluation.
