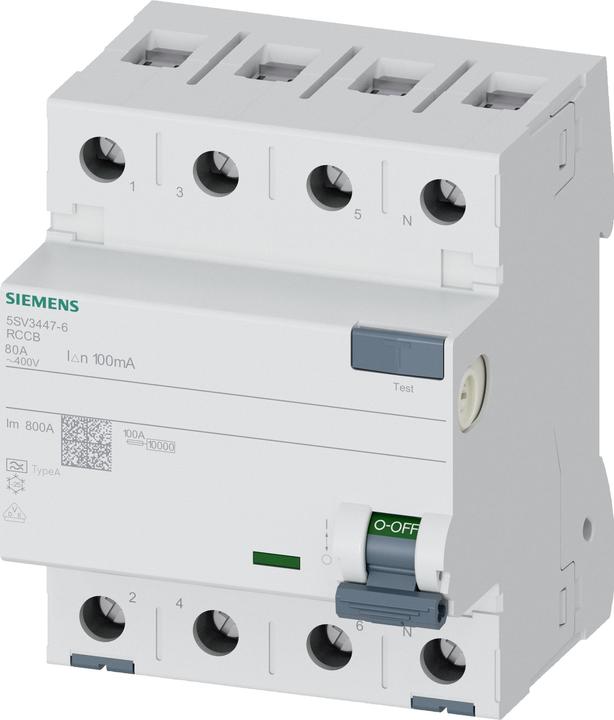

Siemens RCD type 80A Npol. 00mA 400V 4TE
Product details
Siemens Digital Industry RCD 5SV3447-6
Manufacturer: Siemens Digital Industry
Description: RCD Type A, 100mA, 80A
Type: 5SV3447-6
Number of poles: 4
Rated voltage: 400 V
Rated current: 80 A
Rated residual current: 0.1 A
Mounting type: DIN rail
Residual current type: A
Selective type: no
Time-delayed type: no
Short-circuit strength (Icw): 10 kA
Surge current strength: 1 kA
Type of voltage: AC
With locking device: yes
Frequency: 50 Hz
Additional devices possible: yes
Protection class (IP): IP20
Width in modular units: 4
Installation depth: 70 mm
Ambient temperature during operation: -25..45 °C
Connectable conductor cross-section multi-stranded: 0.75..35 mm²
Connectable conductor cross-section single-stranded: 0.75..35 mm²
Explosion-proof: no
Siemens Digital Industry RCD 5SV3447-6: additional details
RCD, 4-pole, Type A, In: 80 A, 100 mA, Un AC: 400 V
The SENTRON 5SV3 RCD provides comprehensive protection for people and property against electric shock. The RCDs offer reliable safety during installation due to the standard included touch protection. With the convenient slider manual operation, you can easily detach the RCDs from the DIN rail or busbar system without tools. The data matrix code on the device provides quick access to all technical data in the Siemens Industry Online Support App. The SENTRON protective devices can be expanded with a wide range of functions using the continuous accessories from the system modular kit. Optimal technology for your safety - exclusively from Siemens.
EAN: 4001869427836.
Circuit breaker type | Fault current circuit breaker |
Length | 70 mm |
Width | 4 mm |
mounting style | Top-hat rail |
number of poles | 4 |
Item number | 13055722 |
Manufacturer | Siemens |
Category | Residual-current device |
Manufacturer no. | 5SV3447-6 |
Release date | 8.4.2020 |
External links |
Circuit breaker type | Fault current circuit breaker |
mounting style | Top-hat rail |
number of poles | 4 |
Tripping characteristic | A |
Rated current | 80 A |
Rated current | 0.1 A |
Rated voltage | 400 V |
voltage type | AC |
Residual current (rated differential current) | 0.10 A |
Protection type (IP code) | IP20 |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 70 mm |
Width | 4 mm |
Height | 90 mm |
