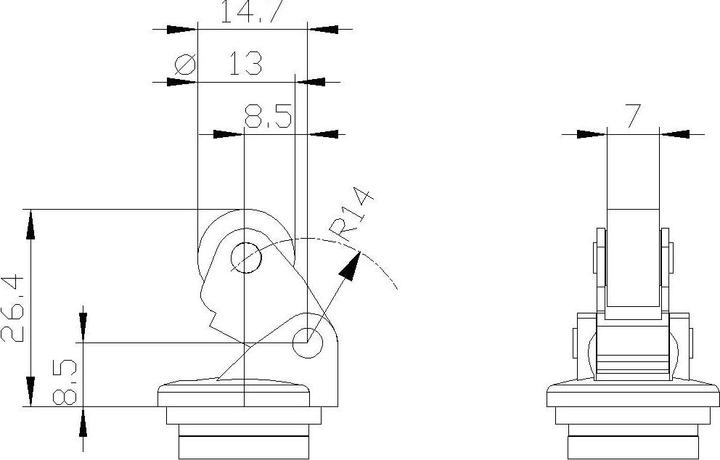

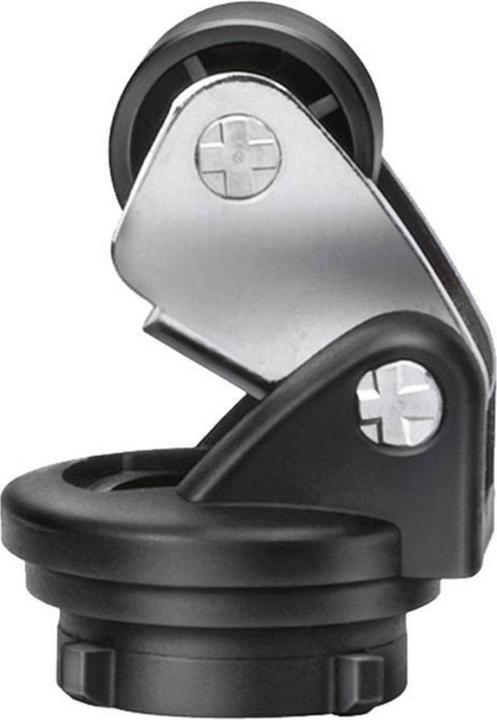

Actuator type: Roller lever
Material: Steel/plastic

End switch actuation elements 3SE5. A series of switch heads designed for use with the SIRIUS end switch series 3SE5. Due to their plug connection and standardized interface, these switch heads can be easily exchanged. Compatible with both modular switching units and complete switch units. Rounded plungers and roller plungers. Operation can be in the direction of the plunger axis or with the rod at a right angle to the plunger axis. Rounded plungers and roller plungers have an additional follow-up path, resulting in a greater operating distance. For lateral actuation and relatively long follow-up paths, the roller plunger is recommended. Roller levers and angled roller levers. Depending on the output direction (left or right), different approach angles (α = 30°) and follow-up angles (γ = 45°) are possible. For actuation elements made of finely ground steel in the form of cams, straight edges, or cam discs. Rotary levers and rod actuation elements. Designed for high starting speeds (v = 1.5 m/s). A variety of starting options available. Resistant to oil, grinding dust, ice, and coarse-grained materials. With the rotary lever, the maximum approach angle is always equal to the maximum follow-up angle. Plunger actuation element - when no actuation element with approach and follow-up angles is possible. 10° adjustment of the rotary lever is possible. Spring rods. Can be used for undefined actuations and changing starting conditions. Starting from any direction. Roller plunger for central mounting with thread M18 x 1. Quick assembly. Easy adjustment. Fork lever. Switchable in two directions. Latching actuation element for alternating movements.
