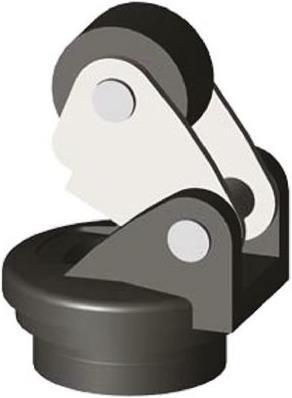

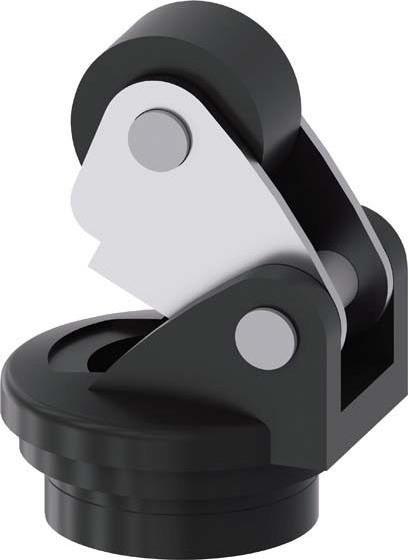

Accessory variant: Roller lever
For use with: Series 3SE5

Limit switch actuating elements 3SE5. A series of switch heads designed for use with the SIRIUS limit switch of series 3SE5. Due to their plug connection and standardized interface, these switch heads can be easily replaced. Compatible with both modular switching units and complete switch units. Rounded plungers and roller plungers. Operation can be in the direction of the plunger axis or with the rod at a right angle to the plunger axis. Rounded plungers and roller plungers have an additional follow-up path, resulting in a greater operating distance. For lateral actuation and relatively long follow-up paths, the roller plunger is recommended. Roller lever and angled roller lever. Depending on the output direction (left or right), different approach angles (α = 30°) and follow-up angles (γ = 45°) are possible. For actuating elements made of finely ground steel in the form of cams, straight edges, or cam discs. Rotating lever and rod actuating elements. For high starting speeds (v = 1.5 m/s), a selection of starting options is available. Resistant to oil, grinding dust, ice, and coarse-grained materials. With the rotating lever, the maximum approach angle is always equal to the maximum follow-up angle. Plunger actuating element when no actuating element with approach and follow-up angle is possible. 10° adjustment of the rotating lever is possible. Spring rods. Can be used for undefined actuations and changing starting conditions. Starting from any direction. Roller plunger for central mounting with thread M18 x 1. Quick assembly, easy adjustment. Fork lever. Switchable in two directions, locking actuating element for alternating movements.
