Power: 0.37 kW
Phase: 1
Supply voltage: 230 V
Rated current: 2.3 A
Output frequency: 0 to 550 Hz
Ambient temperature: -10 to +60°C
Total width: 107.8 mm
Total length: 68 mm
Total depth: 142 mm
Fieldbus communication type: USS/Modbus RTU
Mounting type: Side-by-side mounting, wall mounting

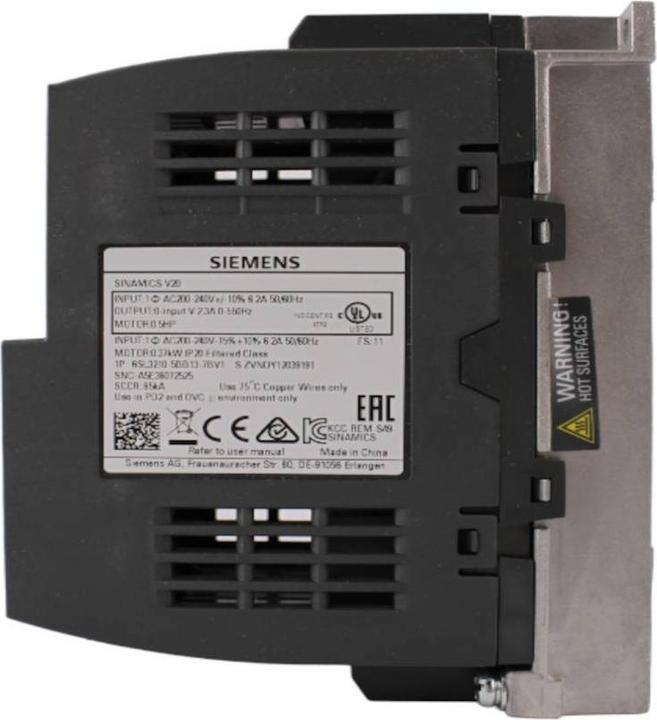

Sinamics V20 - single-phase input with filter. The SINAMICS V20 is a cost-effective, reliable, and user-friendly inverter that can cover all basic applications. It features a single-phase input with a filter, USS and Modbus RTU on terminals, a wide voltage range, ECO mode for V/F and V²/F, improved cooling design, and parameter loading without power supply. It can be mounted through holes or on walls.

Applications include centrifugal pumps, radial/axial fans, compressors, conveyors, and single drives in processes.
