Series: 3RM1
Assembly type: Reversing starter
Range: Sirius
Power: 3 kW
Control voltage: 24 V dc
Current range: 0.4 to 2 A

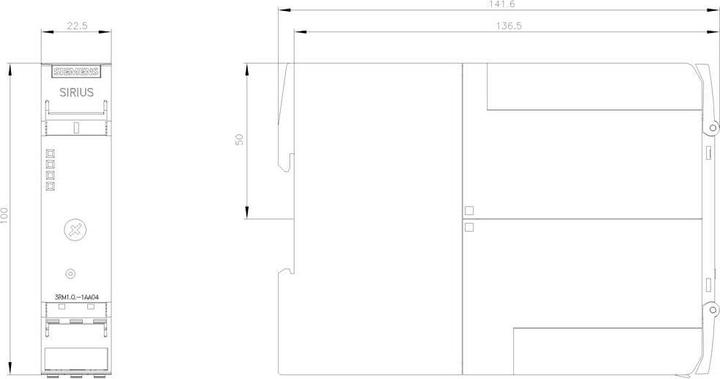

Size: 22.5 x 141.6 x 100 mm

IEC/EN 60947-4-2, IEC 61508-1: SIL 3, ISO 13849: PLe. CCC, CSA, UL, EAC, ATEX. Reversing motor starter. Sirius 3RM1 motor starters are compact devices with a width of 22.5 mm that combine various functions in a single enclosure. They consist of a combination of relay contacts, power semiconductors (in hybrid technology), and an electronic overload relay for switching induction under normal operating conditions.

Features and benefits:

• Reversing starter
• Overload protection
• Quick diagnosis with LED
• Test button/reset button
• Energy saving
• Reduced wiring
• Easy connection
• Small width: 22.5 mm

Type of electrical connection:

• Screw terminals for main and control circuits
• Spring terminals (pluggable) for main and control circuits
• Screw terminals for main circuit, spring terminals (pluggable) for control circuit.
