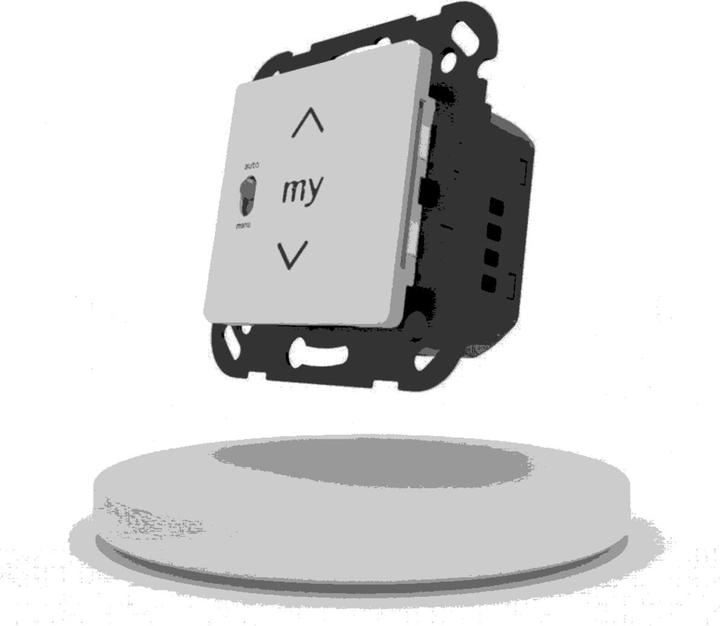

Control unit with integrated io radio receiver for a wired drive (230 V AC). This can be operated via the integrated buttons like conventional wall transmitters or centrally via a radio wall or handheld transmitter. Additionally, the drive can now be integrated into the TaHoma smart home system, utilizing all the advantages of radio technology such as if-then conditions, individual scenarios, or automation commands.

The device is compatible with all switch programs using a 50 x 50 mm adapter frame from the switch manufacturers.

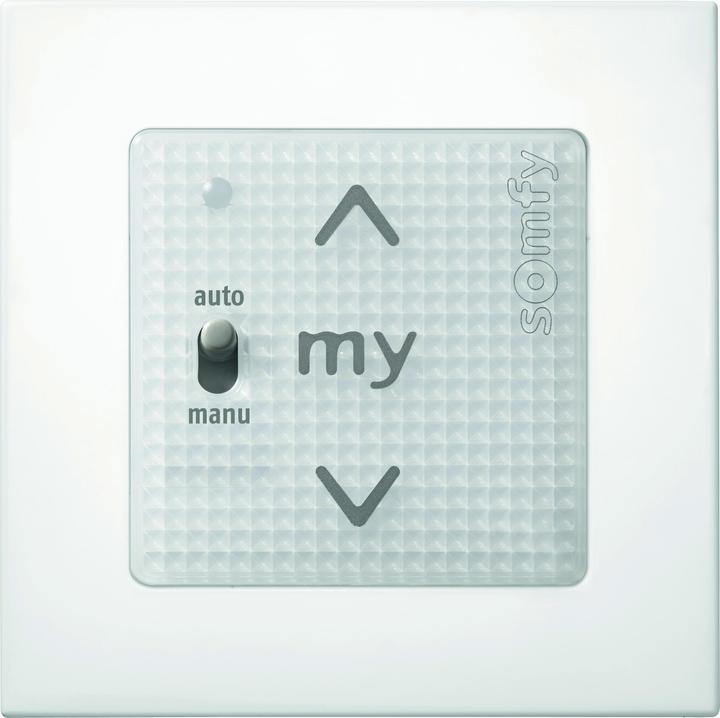

• Up button to open the selected product or retract the awning
• My button to stop the current movement or to recall the favorite position
• Down button to close the selected product or extend the awning
• Toggle switch to activate/deactivate the automation
• Dip switch to select the operating mode: awnings, roller shutters, screens, venetian blinds, indoor blinds, windows, curtains

Delivery includes: radio motor control unit, frame to be ordered separately.

Operating voltage: 220-240 V ~50/60 Hz
Relay contact load capacity: 3 A / cos phi >0.6
Operating temperature: 0 degrees Celsius to 40 degrees Celsius
Environmental conditions: dry living spaces
Protection class: IP30
Drive runtime: max. 4 minutes
Radio frequency: 868-870 MHz
Number of learnable io 1W transmitters: up to 9
Number of learnable io sensors: up to 3

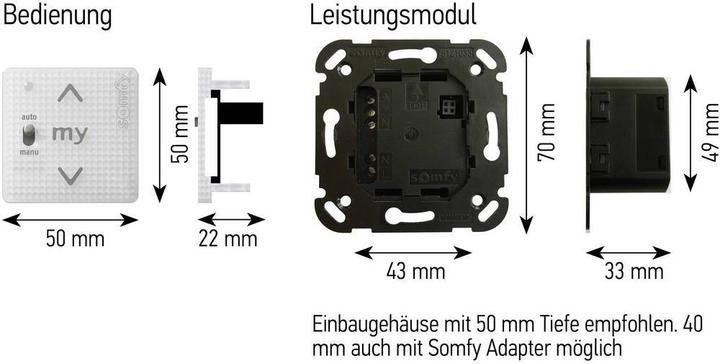

Dimensions (WxHxD): 50 x 50 x 22 mm

The product you have chosen is Smart Home Ready by Somfy and can be directly integrated into the Somfy home control TaHoma Switch – the flexible and compatible smart control for networking building technology with numerous manufacturers. The Somfy Pro App (iOS & Android) guides you step by step through the commissioning process. Access to the home control is also possible via remote maintenance after customer approval.
