Spax Chipboard screws

500 Screws per piece
Price in EUR including VAT, plus shipping
EUR0,05/1pcs.
Delivered between Wed, 21.5. and Fri, 23.5.
6 items in stock at third-party supplier
Supplied by

Diameter

Length

Product details

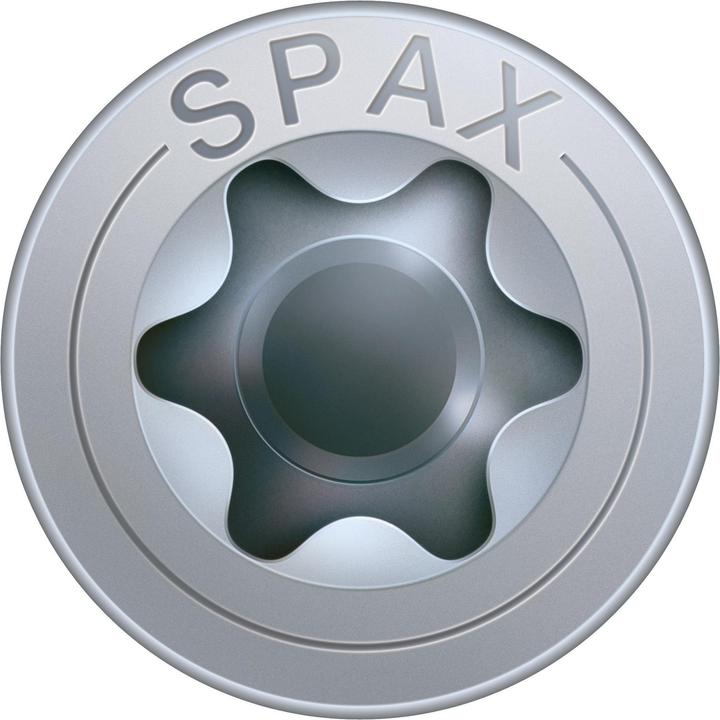

The SPAX typical drive T-STAR plus is a so-called internal hexagon. This shape increases the contact surface of our T-STAR plus, allowing the T-STAR plus bits to fit perfectly into the screw head. The optimal power transfer from the screwdriver to the screw through T-STAR plus enables quick work, significantly more efficient than with any other drives.

The countersunk head (or flat countersunk head) mills a recess into the wood with its polygonal underside ("pockets") and can therefore be sunk without additional countersinking of the screw hole. The countersunk head sits flush with the surface.

In contrast to partial thread screws, the full thread extends over the entire length of the screw. The more threads a screw has, the greater the tensile and compressive forces that can be transferred from the screw to the wood. Our full-thread screws are primarily used for highly stressed wood connections.

The term 4CUT refers to the square shape of the screw tip. These edges displace the wood fibers during insertion and create space for the screw's core diameter. This reduces the spreading pressure exerted by the core in the wood and prevents splitting of the wood near the edges. The necessary torque of the cordless screwdriver is also reduced, as the core of the screw does not have to "squeeze" into the wood.

With WIROX, SPAX has developed a coating that far surpasses galvanization in terms of corrosion protection. WIROX does not use chromium (VI), and the screws remain just as load-bearing even after years in outdoor areas not directly exposed to the elements, and they are also environmentally friendly. WIROX screws are the first choice for all open structures without direct exposure to the weather, such as carports or pergolas; for direct weather exposure, such as in terraces, we recommend our screws in stainless steel.

Key specifications

type of screw
Chipboard screw
bolt diameter
4.5 mm
head shape
Countersunk head
Screw length
40 mm
Version
Unique specimen
Size (D x L)
M4.5 x 40
Item number
15880564

General information

Manufacturer
Spax
Category
Screws
Manufacturer no.
880910100045040
Release date
24.5.2021
External links

Colour

Colour
Silver
Exact colour description
Wirox silver

Material

Metal type
Steel
Material group
Metal
Material
Steel
surface finish
Slide coatedWirox coated

Screw Properties

type of screw
Chipboard screw
Version
Unique specimen
thread type
Full thread
head shape
Countersunk head
impetus
Pin-torx
Output size
T20
Suitable for
Chipboard

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
500 pieces
Items per sales unit
500 Screws per piece

Product dimensions

Size (D x L)
M4.5 x 40
bolt diameter
4.5 mm
Screw length
40 mm
thread length
34 mm

Package dimensions

Length
17 cm
Width
10.20 cm
Height
8.20 cm
Weight
1.47 kg
