Technical data

Output current (TIG/MMA/MIG/CUT): TIG,MMA: 10-200A / MIG: 40-200A / CUT: 15-50A
Protection class: IP21S
Mains voltage: 1 x 230V AC (+- 15%)
Mains frequency: 50/60 Hz
Maximum mains current (l1max) (TIG/MMA/MIG/CUT): 26.8A / 41.7 A / 35.7 A/ 37.2A
Maximum effective mains current (l1err) (TIG/ MMA/MIG/ CUT): 10.4A I 13.2A I 13.8A I 14.4A
Air pressure CUT: max. 4Bar
Air flow CUT: min. 100L/min
Dimensions Lx W x H (mm): 440 X 255 X360

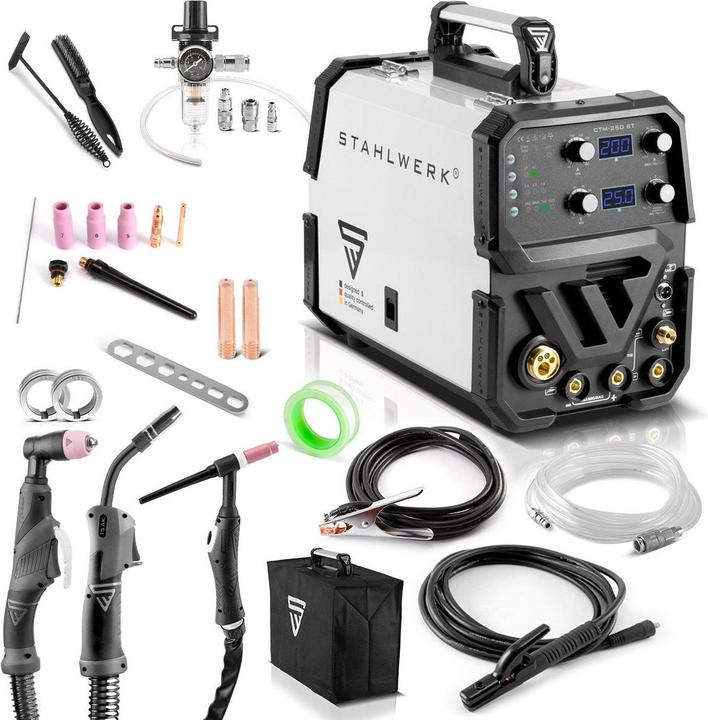

Scope of delivery

1 x The CTM-250 ST steelworks combi welding machine
1 x Professional TIG welding torch WP-26F / hose package 3 metres
1 x TIG TIG accessory set 8 pieces
1 x Professional plasma hose package AG-60/SG-55 3 metres
1 x Plasma accessory set 3-piece (this is already pre-assembled on the plasma torch)
1 x water separator with pressure gauge and snap-on quick couplings
1 x connecting hose with snap-on quick-release couplings from the device to the water separator, incl. 6-piece connection set
1 x AK-15 professional MIG welding torch / 3 metre hose package with Euro central connection
1 x 3-piece MIG accessory set (this is already pre-assembled on the MIG/MAG torch): 1 x gas nozzle, 1 x contact tip 0.8 mm, 1 x gas nozzle holder
1 x earth cable 3 metres
1 x electrode holder 3 metres
1 x wire brush
1 x gas connection hose with quick coupling 5 metres
1 x contact tip M6 x 28 - ø 0.8 mm
1 x contact tip M6 x 28 - ø 1.0 mm

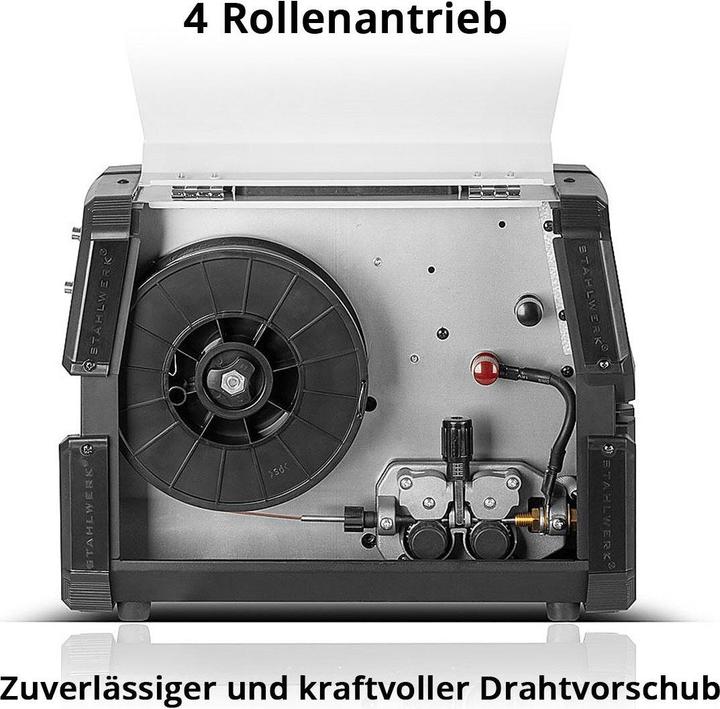

2 x wire guide rollers 0.8 mm & 1.0 mm with V profile (already installed in the device)
2 x wire guide roller 0.6 mm & 0.8 mm with V profile
1 x assembly spanner
1 x Teflon tape
1 x protective cover
