Properties

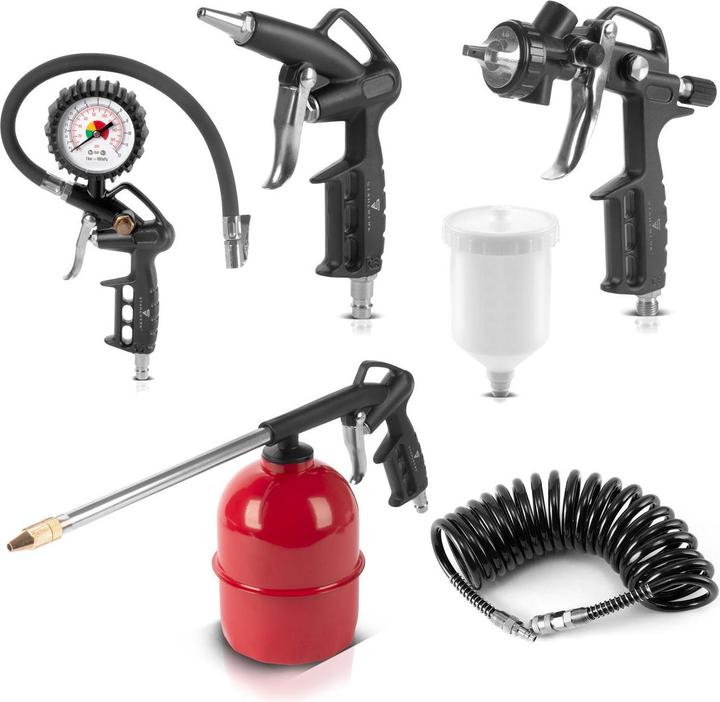

The 5-piece Stahlwerk compressed air set consists of a paint spray gun with 1.5 mm nozzle including flow cup, a blow-out gun, a cleaning gun with fluid container, a tyre inflator with pressure gauge and a 5 metre spiral hose with a diameter of 8 mm.
The spray gun impresses with its first-class atomisation properties and clean painting results with low compressed air consumption. The spray jet can be precisely adjusted from round to wide jet to enable precise application of the material. Thanks to its compact design and low weight, the spray gun sits comfortably in the hand and offers optimum working comfort.

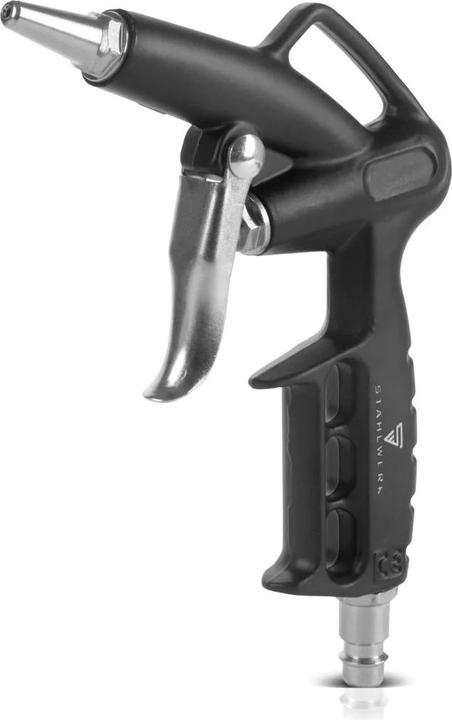

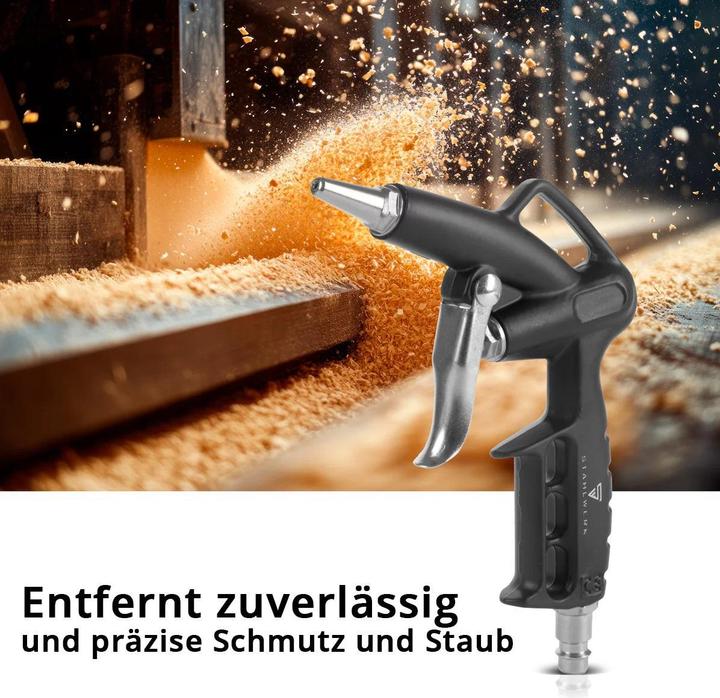

In combination with a compressor, the powerful blow-out gun is the perfect tool for thorough cleaning of dirty surfaces.

Technical data

Model: Stahlwerk compressed air set 5-piece
Blow-out gun dimensions: 120 x 165 x 25 mm (LxHxW)
Cleaning gun dimensions: 380 x 170 x 95 mm (LxHxW)
Paint spray gun dimensions: 160 x 155 x 20 mm (LxHxW)
Dimensions: 235 x 85 x 35 mm (HxLxW)

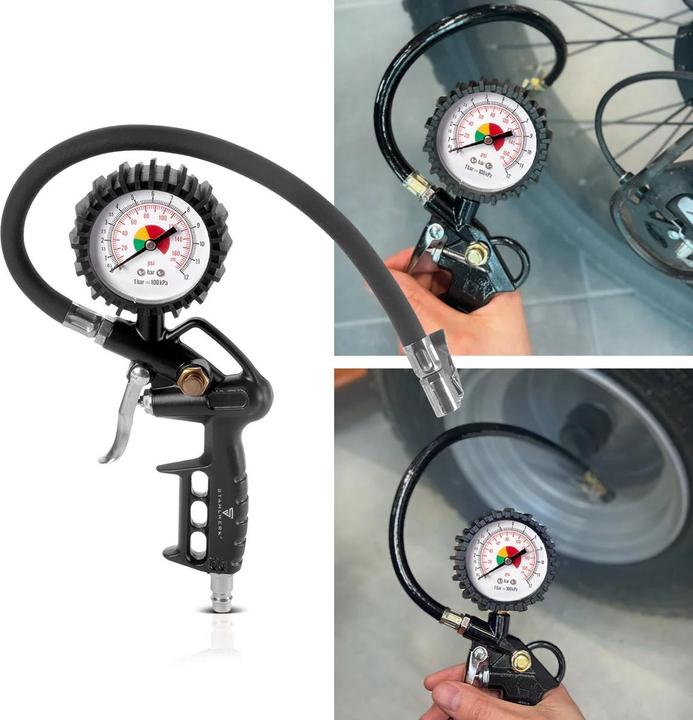

Measuring/filling range tyre inflator: 0 to 12 bar / 0 to 170 PSI
Length of the inflation hose: 330 mm
Integrated coupling plug: according to EU standard nominal width 7.2 mm
Paint spray gun connection G1/4"

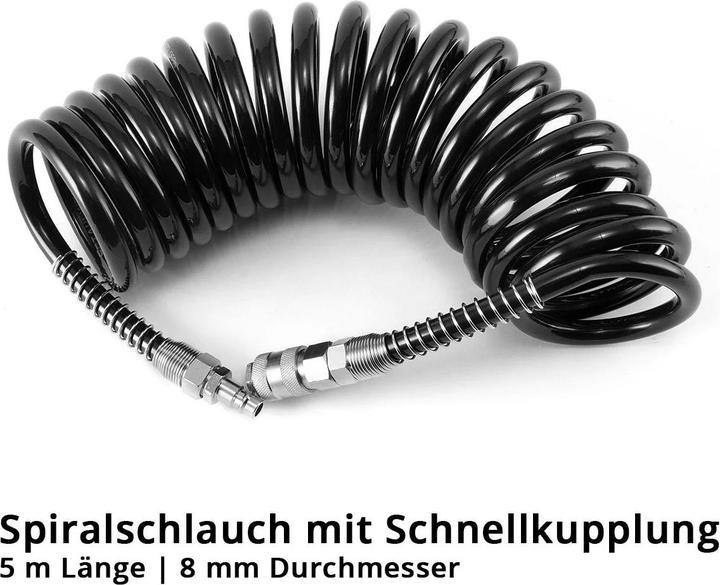

Spiral hose dimensions: 5 m length | 8 mm diameter
Weight: 1.9kg
Material: Metal / plastic

Scope of delivery

1 x paint spray gun, 1.5 mm incl. 600 ml plastic flow cup with lid
1 x blow gun

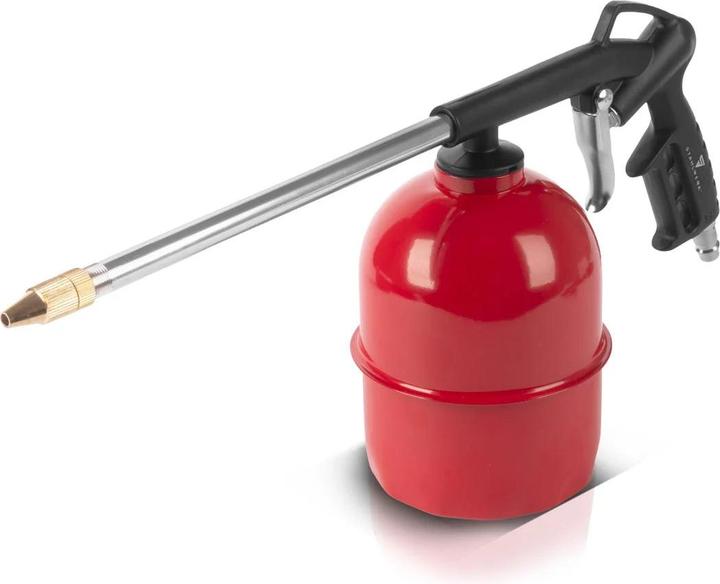

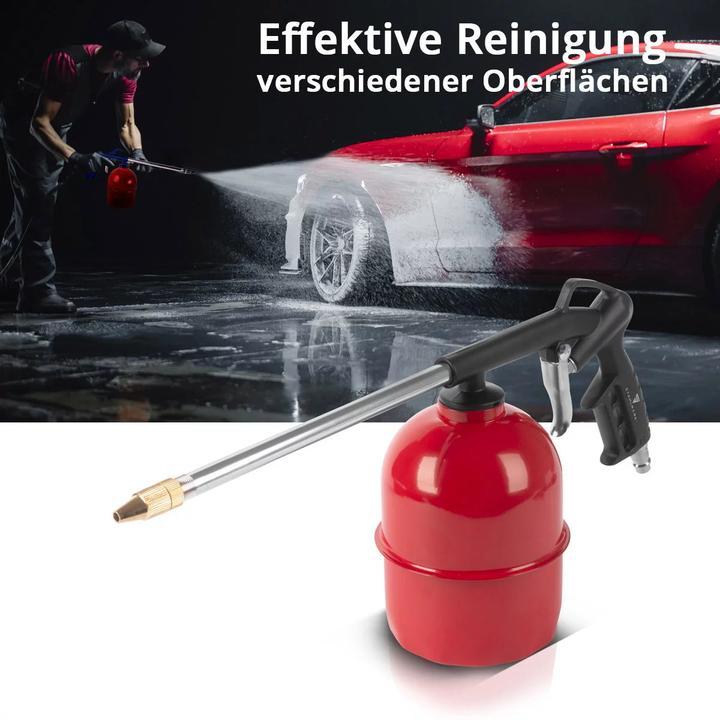

1 x cleaning gun incl. metal container for cleaning fluids
1 x tyre inflator
1 x spiral hose 5 m long | 8 mm diameter
