Properties

DC TIG welding - direct current (DC). Welding of almost all metals, such as steel, stainless steel, copper, brass and many more. Note: Not suitable for aluminium - an AC/DC device is required for this.
2 in 1 combination device - TIG & MMA welding is possible up to 200 A.

Technical data

Output current (TIG / MMA): 10-200 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+- 15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max) (TIG / MMA): 27.7 A / 39.7 A
Maximum effective mains current (I1eff) (TIG / MMA): 14.5 A / 13.5 A
Weight: 7.6 kg

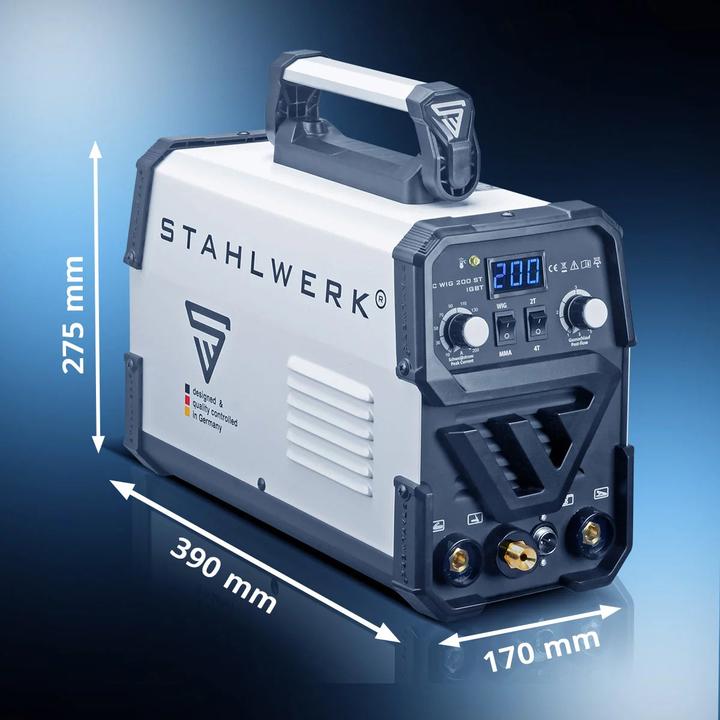

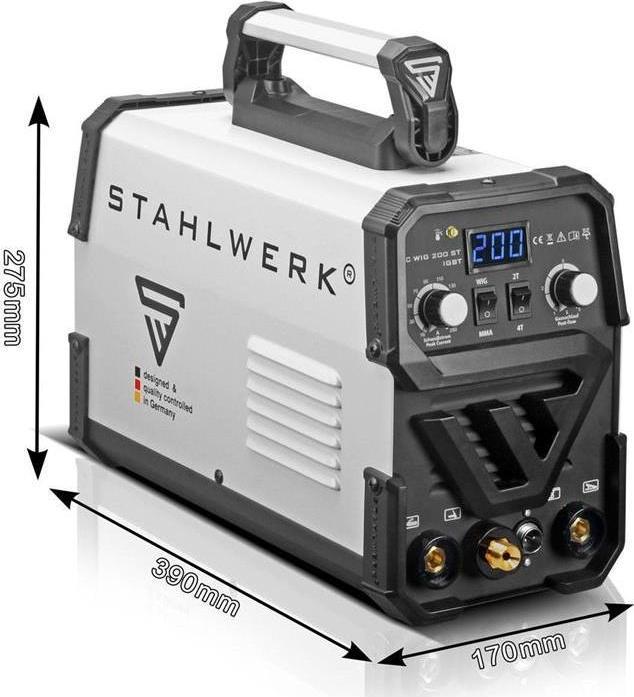

Dimensions L x W x H (mm): 390 x 170 x 275

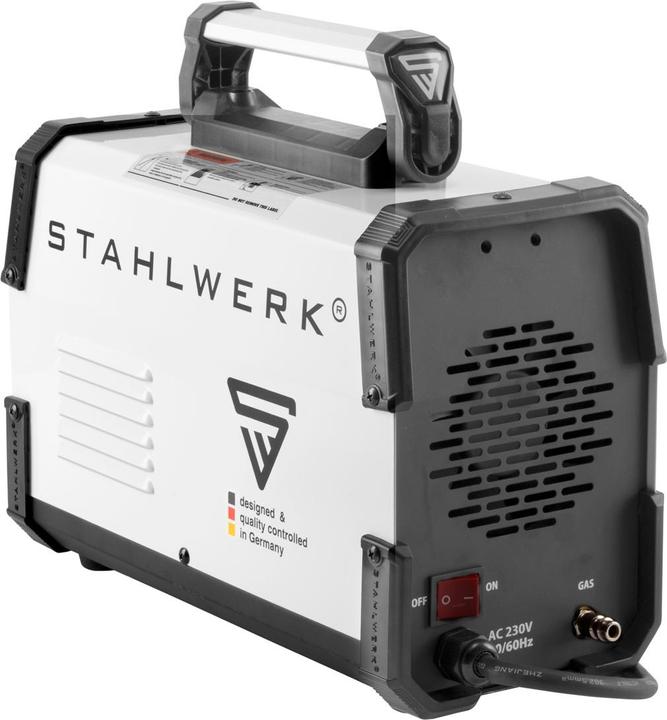

Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)

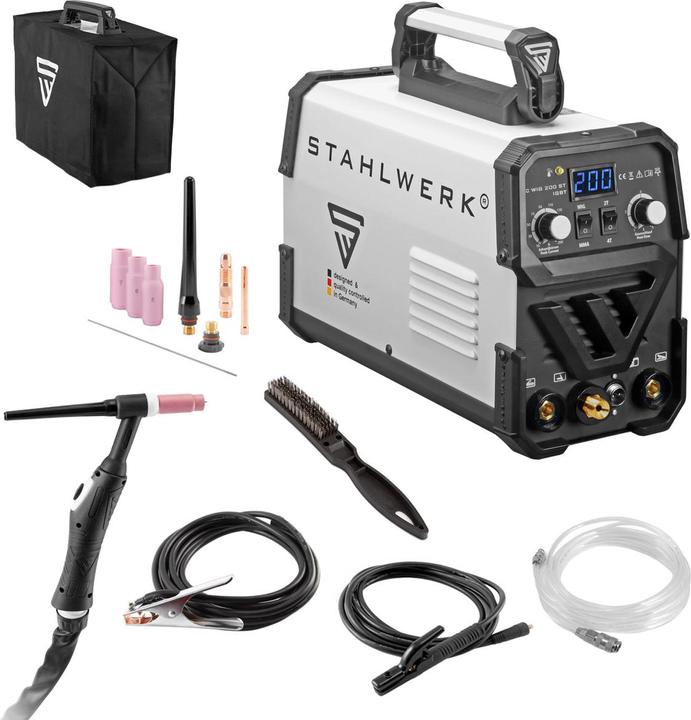

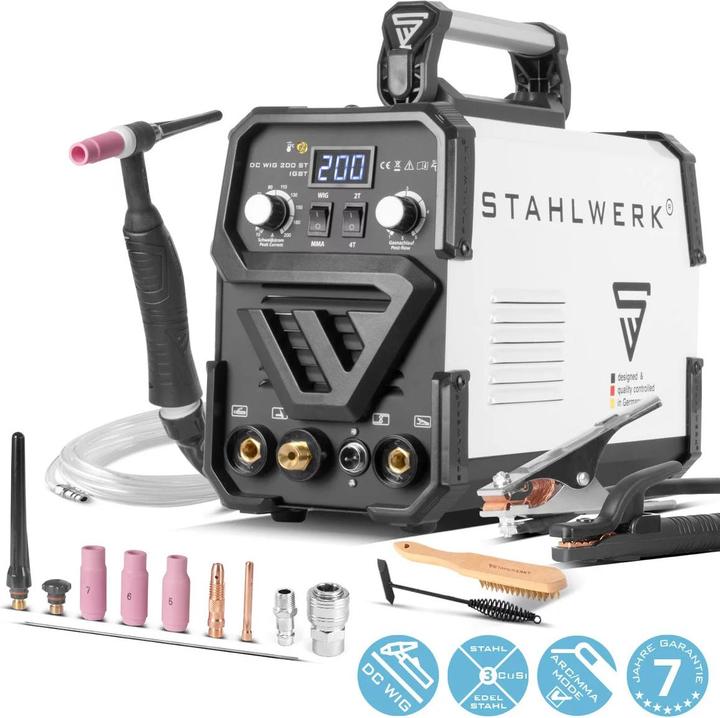

Scope of delivery

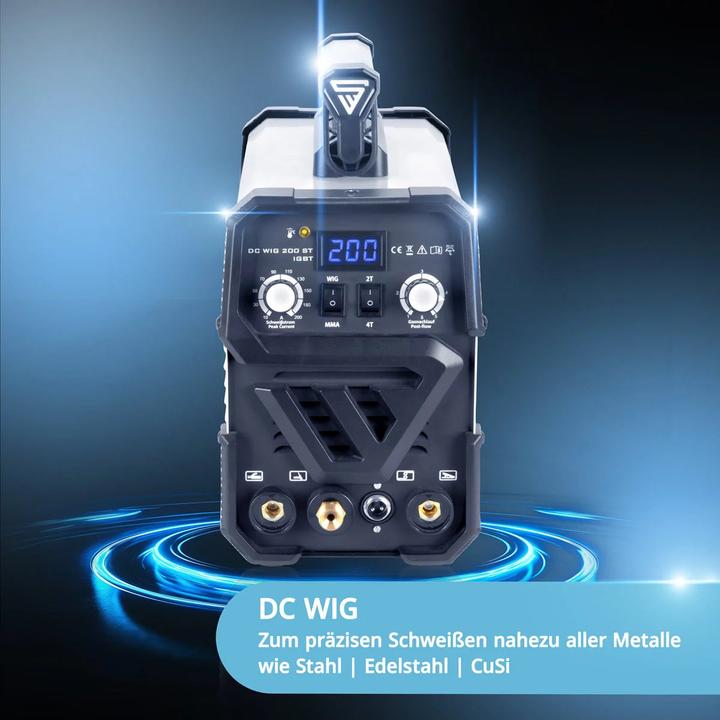

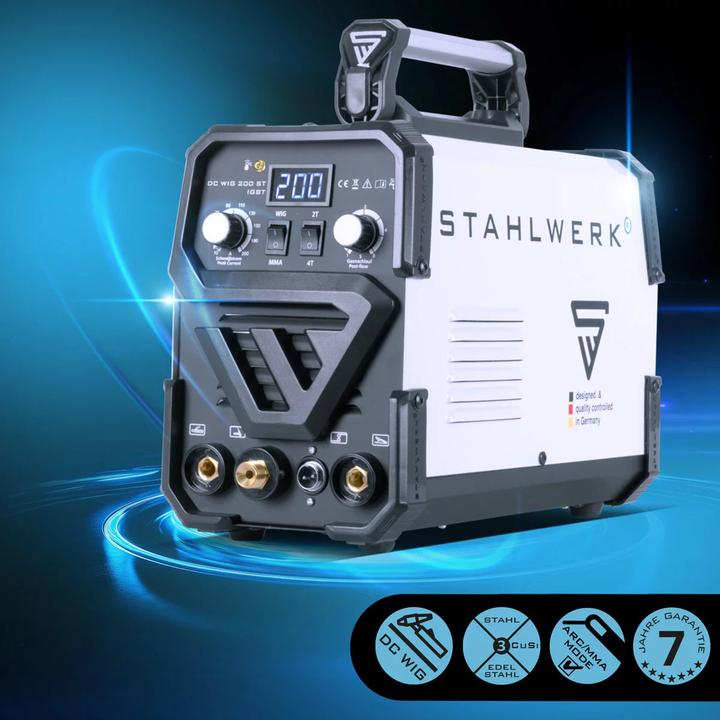

1 x The DC TIG 200 ST IGBT steelwork welding machine
1 x Professional TIG welding torch WP-26F / hose package 3 metres* with flexible torch head and kink protection on the gas connection
1 x TIG TIG accessory set 8 pieces:

3 x gas nozzles sizes: 5, 6, 7
1 x clamping sleeve size 1.6
1 x clamping sleeve housing size 1.6
2 x burner caps - one short and one long
1 x universal tungsten electrode
(*Pre-assembled accessories from the picture of the welding torch are part of the 8-piece set)

1 x earth cable 3 metres
1 x welding cable with electrode holder 3 metres
1 x wire brush
1 x slag hammer
1 x Quick coupling gas pressure reducer incl. O-seal
1 x Gas connection hose with quick coupling 5 metres
1 x protective cover
