Technical data

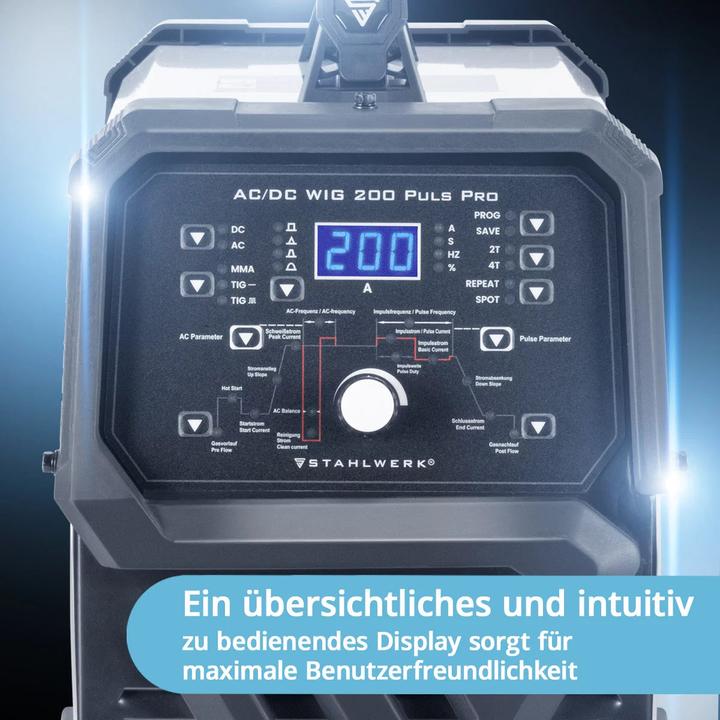

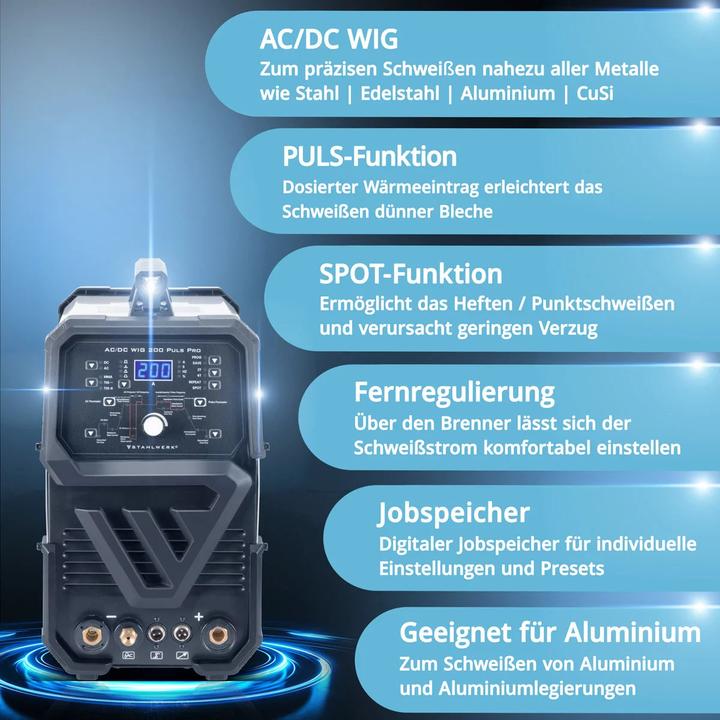

Model: AC/DC TIG 200 Pulse Pro welding machine
Output current (TIG / MMA): 5 - 200 A / 30 - 160 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC
Mains frequency: 50 Hz
Maximum mains current (I1max) / (TIG / MMA): 28 A
Maximum effective mains current (I1eff) / (TIG / MMA): 15.6 A
Weight: 17.5 kg
Dimensions L x W x H (mm): 450 x 235 x 440
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: TÜV Rheinland

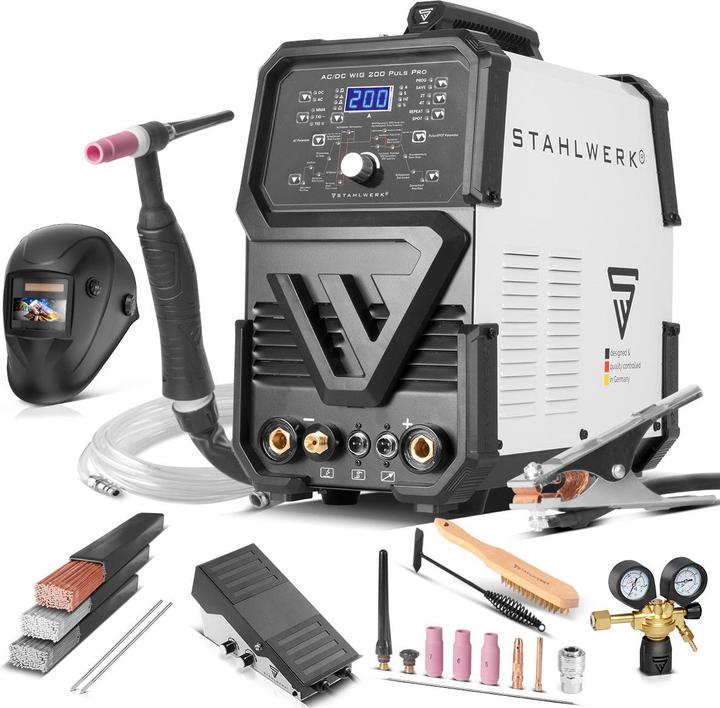

Scope of delivery

1 x Steelworks AC/DC TIG 200 Puls Pro welding machine
1 x Professional TIG welding torch WP-26F / hose package 3 metres* with flexible torch head and kink protection on the gas connection.
1 x TIG TIG accessory set 8 pieces:

3 x gas nozzles sizes: 5, 6, 7
1 x clamping sleeve size 1.6
1 x clamping sleeve housing size 1.6
2 x burner caps - one short and one long
1 x universal tungsten electrode 1.6 mm
* Pre-assembled accessories from the illustration of the welding torch are included in the 8-piece set.

1 x earth cable 3 metres
1 x wire brush
1 x Gas connection hose with quick coupling 5 metres
1 x TIG welding rods ER70S G3 steel
1 x Welding rods TIG ER307Si high-alloy stainless steel
1 x TIG welding rods ER4043Si5 Aluminium
1 x Tungsten electrodes / welding electrodes
1 x TIG foot pedal Puls Pro with 4 m cable
1 x protective cover
1 x pressure reducer
1 x Professional welding helmet
