Properties

Plasma: conductive metals e.g. standard steel, copper, stainless steel, brass, aluminium, titanium can be cut without problems.
Cutting capacity up to 14 mm (depending on material): mild steel ST37 up to 14 mm / V2A or V4A up to 8 mm, - aluminium up to 5 mm
CUT contact: smooth-running HF ignition, one stroke is enough.

Technical data

Output current: 15-50 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+- 15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 33 A
Maximum effective mains current (I1eff): 13,1 A
Weight: 7.2 kg
Dimensions L x W x H (mm): 390 x 170 x 275
Mains connection: CEE 7/7 Schuko plug
Air pressure: 3.5 - 4 bar
Air flow: min. 100 L / min
Standards: IEC 60974-1; EN 60974-10 (Class A)

Scope of delivery

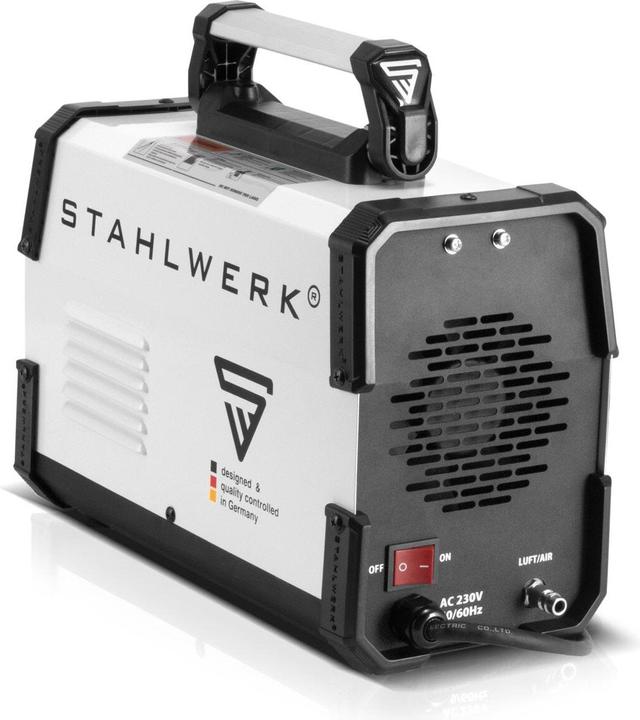

1 x Stahlwerk plasma cutter CUT 50 ST
1 x professional plasma hose package AG-60/SG-55, 3 metres
1 x 3-piece plasma accessory set (this is already pre-assembled on the plasma torch):

1 x plasma nozzle
1 x plasma electrode
1 x ceramic cap

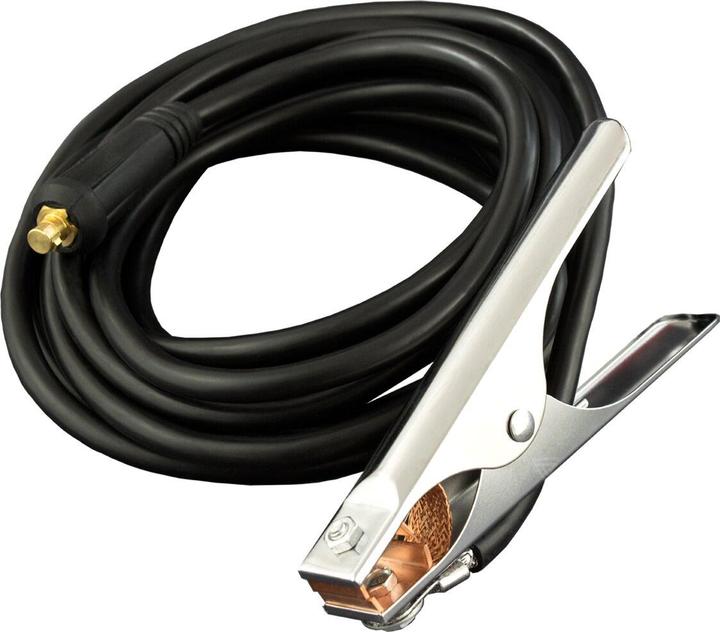

1 x earth cable 3 metres

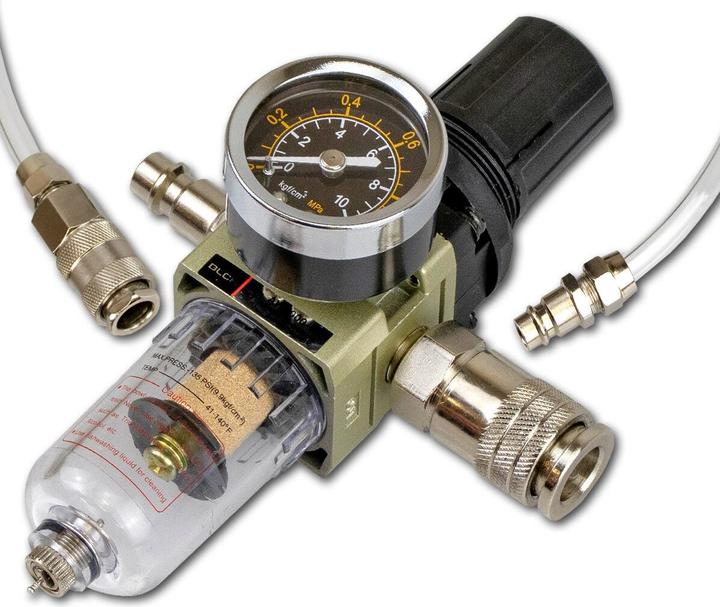

1 x water separator with pressure gauge and snap-on quick-release couplings
1 x Connecting hose with snap-on quick-release couplings from the appliance to the water separator, incl. 6-piece connection set

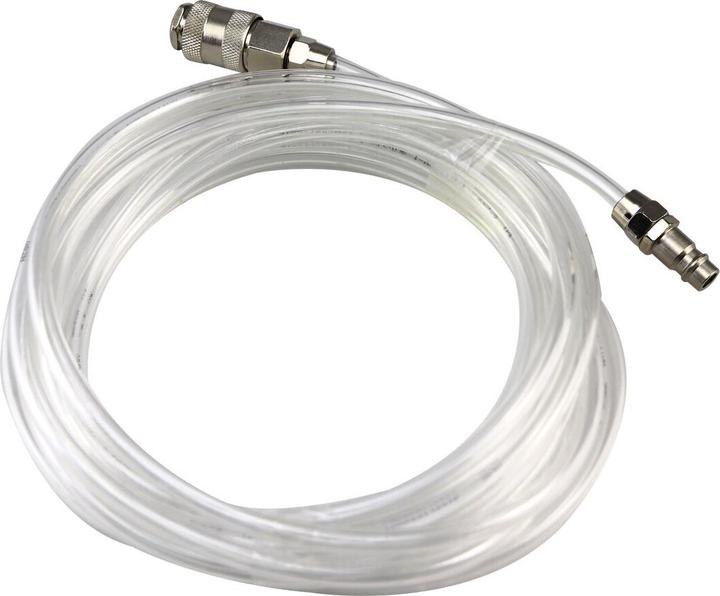

1 x Air connection hose with Snap-on quick-release coupling 5m
1 x protective cover
1 x Teflon tape
1 x Original wear parts set 25 pieces for plasma cutting torch AG-60 / SG-55
1 x WORKER 3-in-1 automatic welding helmet Welding shield
