Properties

Plasma: conductive metals e.g. standard steel, copper, stainless steel, brass, aluminium, titanium can be cut without problems.
Cutting capacity up to 24 mm (depending on material): Mild steel ST37 up to 20 mm, V2A or V4A up to 16 mm, aluminium up to 13 mm
CUT Pilot: smooth-running pilot HF ignition, no contact with the workpiece necessary.

Technical data

Output current: 20-60 A
Protection class: IP21S
Mains voltage: 400 V AC (+-15%) / 3 Ph
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 11.4 A
Maximum effective mains current (I1eff): 3,6 A
Weight: 11.5 kg
Dimensions L x W x H (mm): 460 x 230 x 365
Mains connection: CEE16 plug
Air pressure: 4 - 6 bar
Air flow: min. 140 L / min
Standards: IEC 60974-1; EN 60974-10 (Class A)

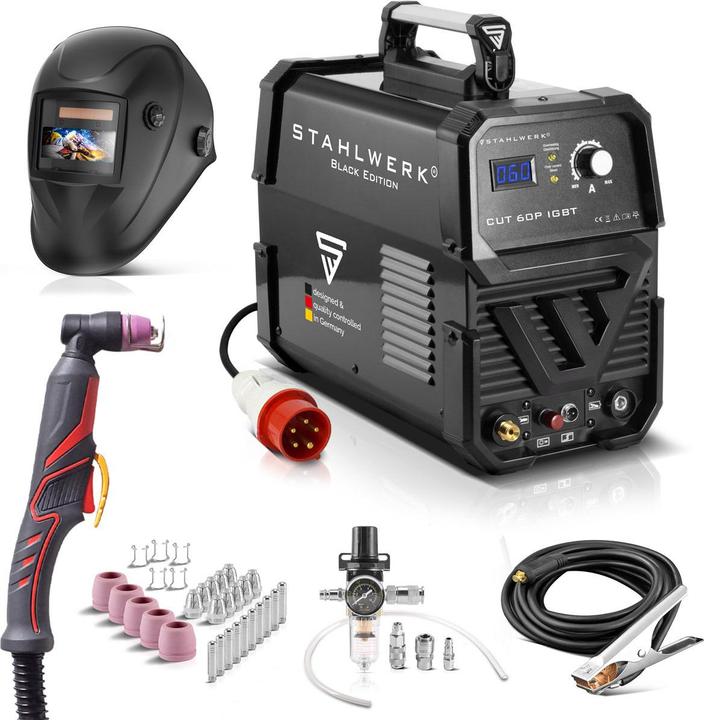

Scope of delivery

1 x Stahlwerk plasma cutter CUT 60 P

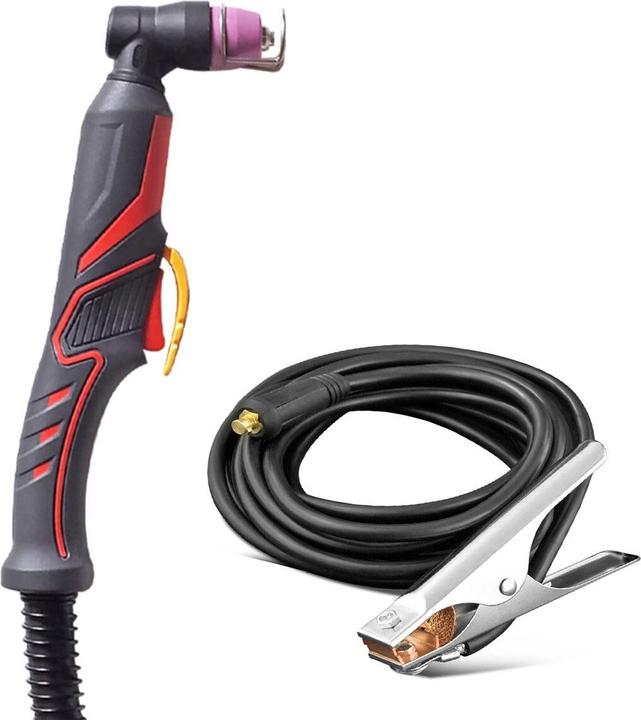

1 x professional plasma hose package P-60 3 metres
1 x 4-piece plasma accessory set (this is already pre-assembled on the plasma torch):

1 x plasma nozzle
1 x plasma electrode
1 x ceramic cap

1 x spacer
1 x earth cable 3 metres
1 x water separator with pressure gauge and snap-on quick-release couplings
1 x Connecting hose with snap-on quick-release couplings from the appliance to the water separator, incl. 6-piece connection set
1 x Air connection hose with Snap-on quick-release coupling 5 m
1 x Teflon tape
1 x protective cover

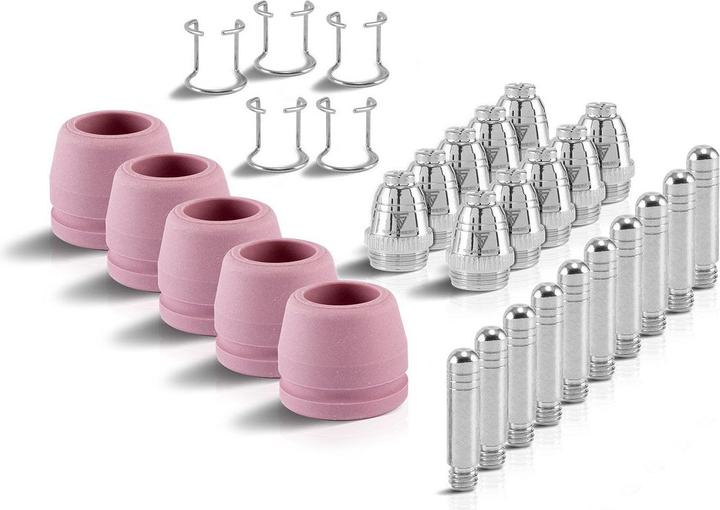

1 x Original 30-piece wear parts set for plasma cutting torch P-60
1 x WORKER 3-in-1 automatic welding helmet Welding shield
