Properties

Note: The device is not intended for use in residential areas where the power supply is provided by a public low-voltage power supply system.
It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.

Technical data

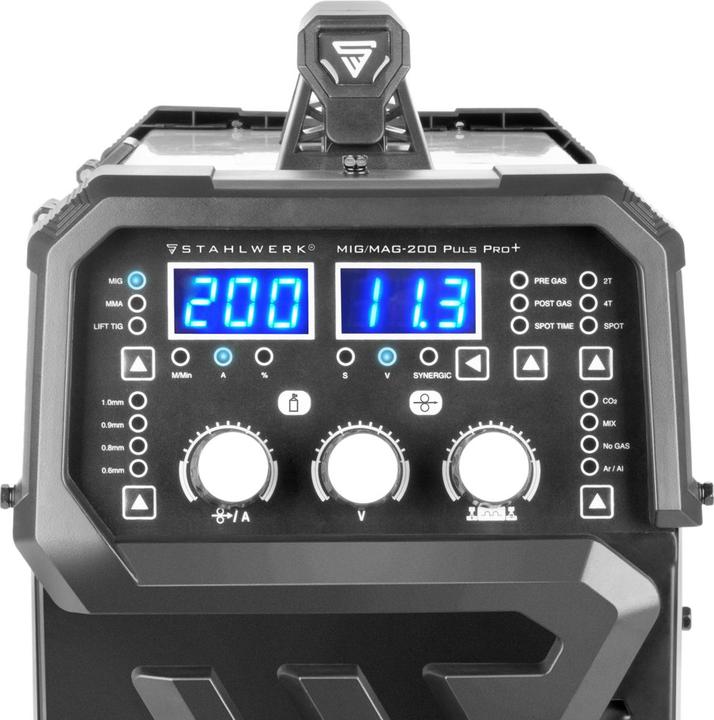

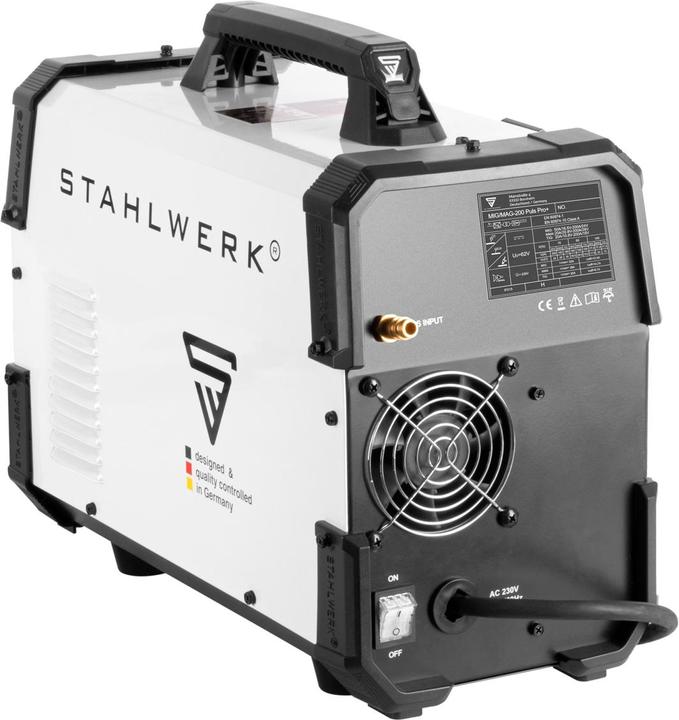

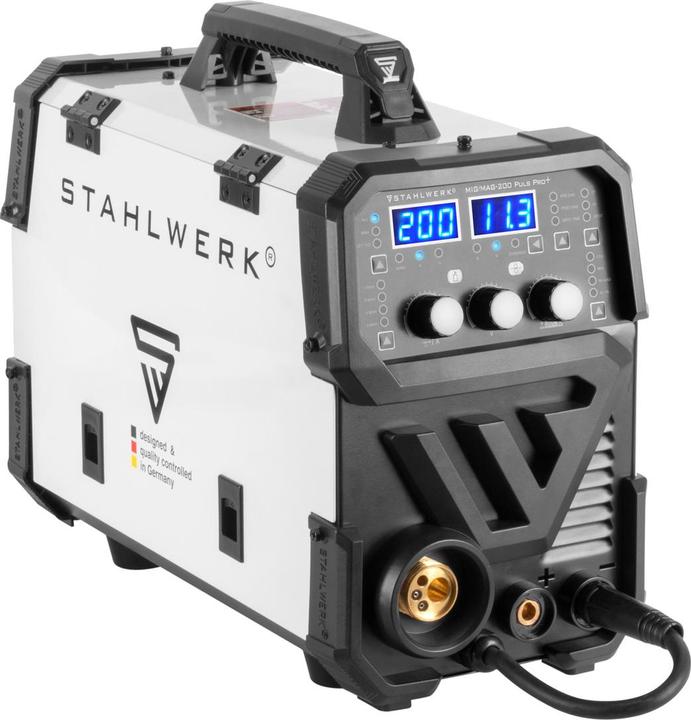

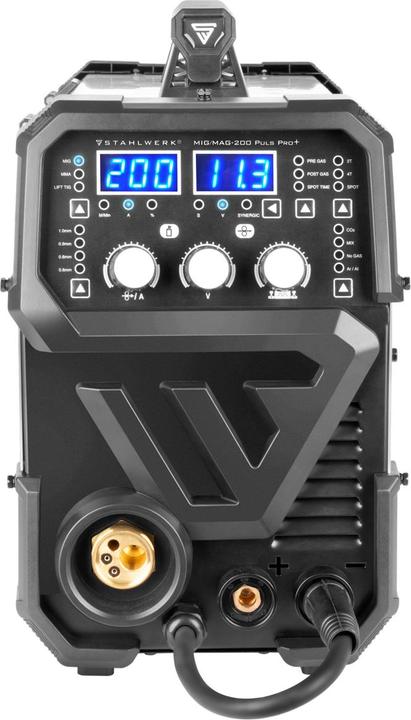

Model: MIG MAG-200 Puls Pro Plus
Output current Lift-TIG / MMA: 20-180 A
MIG duty cycle (40°C): 15% at 200 A / 100% at 77 A
Duty cycle Lift-TIG / MMA (40°C): 15% at 180 A / 100% at 70 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+-15%)
Maximum mains current (I1max) MIG / Lift-TIG / MMA 32 A / 22 A / 34 A
Maximum effective mains current (I1eff) MIG / Lift-TIG / MMA 12.4 A / 8.5 A / 13.2 A
Weight: 10.8 kg

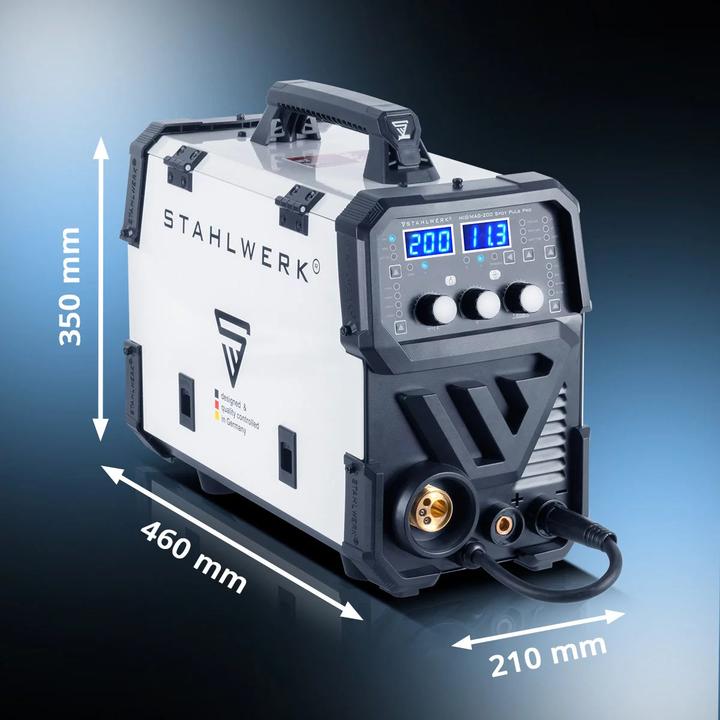

Dimensions L x W x H (mm): 460 x 210 x 350
Mains connection: CEE 7/7 Schuko plug
Mandrel connection: 9 mm
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: SGS Standards Technical Services Co., Ltd.

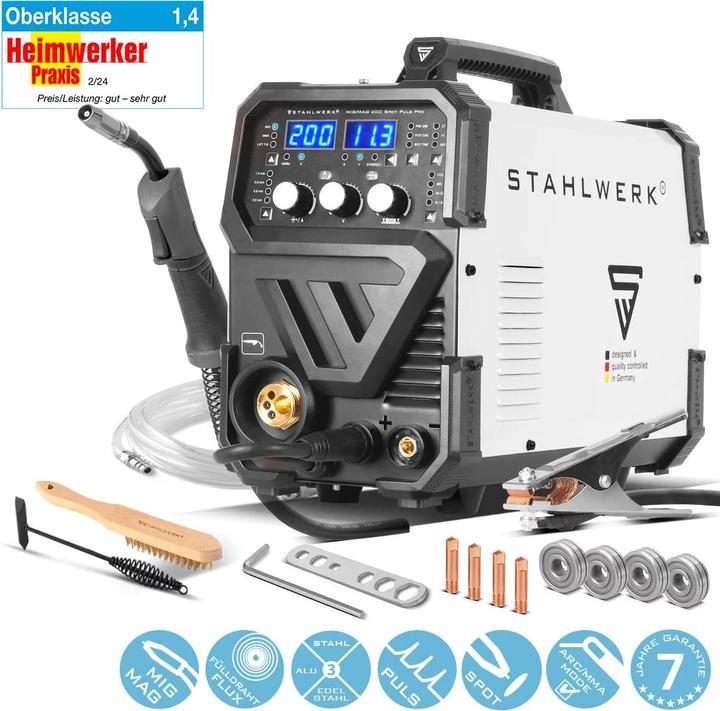

Scope of delivery

1 x MIG MAG-200 Puls Pro Plus welding machine
1 x AK-15 professional MIG welding torch / 3 m hose package
1 x earth cable 3 m
2 x wire guide rolls 0.8 mm & 1.0 mm with 'V' profile (already installed in the device)
2 x wire guide rolls 0.6 mm & 0.8 mm with 'V' profile
2 x wire guide rollers 1.0 mm & 1.2 mm with 'U' profile (for aluminium wire)
1 x wire brush
1 x slag hammer
1 x gas connection hose with quick coupling 5 m
4 x contact tips: M6 x 28 - ø 1.0 mm for aluminium, ø 0.6 mm for steel, ø 0.8 mm for steel, ø 1.0 mm for steel
1 x assembly spanner
1 x protective cover
