Features

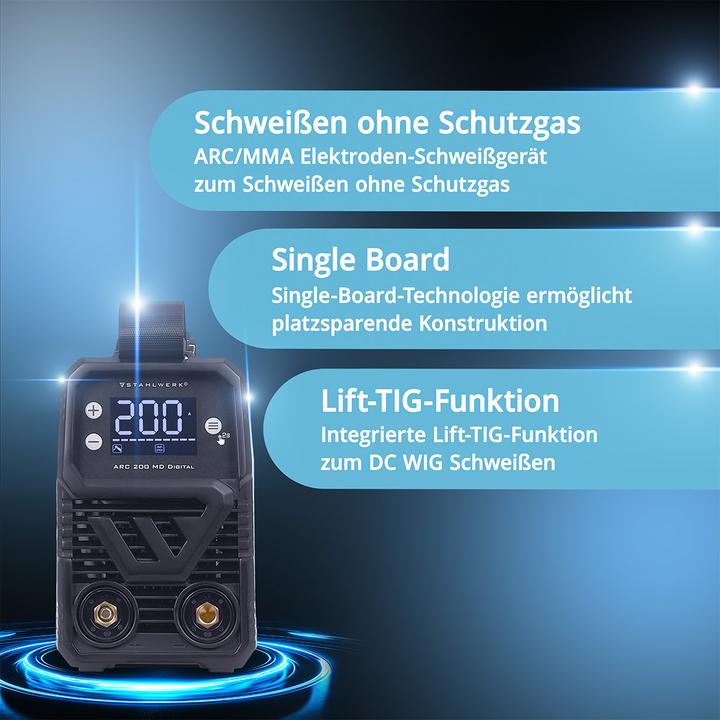

MMA electrode welding / ARC welding as a universal welding process. An arc melts the electrode, forming the weld seam. No shielding gas is required, making it flexible for use anywhere. The practical reference current function allows for the selection of a current recommendation (material thickness 1.0–10.0 mm and electrode diameter 1.6–5.0 mm). The device then automatically adjusts the appropriate welding current strength – this function is disabled during manual readjustment. The ARC 200 MD Digital features a lift-TIG mode (DC TIG) and can quickly be converted into a DC TIG welding machine with the optionally available WP-17V universal lift-TIG torch.

Technical Data

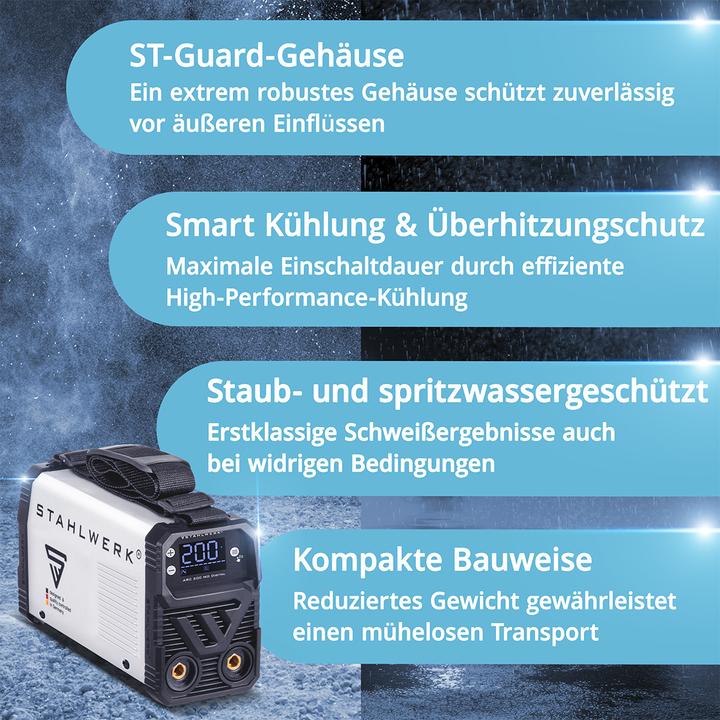

Model: ARC 200 MD Digital
Process: MMA / manual, optional DC lift-TIG
Output current MMA: 10–200 A
Duty cycle MMA (40 °C):
10% at 200 A
60% at 82 A
100% at 63 A
Mains voltage: 1 x 230 V AC (±15%)
Mains frequency: 50 / 60 Hz
Max. mains current (I₁max): MMA 40 A, TIG 28 A
Largest effective mains current (I₁eff): MMA 12.6 A, TIG 8.8 A
Protection class: IP21S
Dimensions (L x W x H): 269 x 116 x 187 mm
Weight: approx. 3.4 kg
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
WEEE Reg. No. DE: 85577200

Scope of Delivery

1 x STAHLWERK ARC 200 MD Digital
1 x Ground cable 3 meters
1 x Electrode holder 3 meters
1 x Protective cover
1 x Slag hammer
1 x Wire brush
1 x Professional welding helmet
1 x Stick electrodes AWS E6013RR thick rutile-coated 2 mm x 300 mm
1 x STAHLWERK tool and equipment cart.
