Properties

MIG/MAG - gas metal arc welding with direct current (DC). Welding can be carried out with inactive/inert (MIG, e.g., argon) or active (MAG, e.g., CO2) gases.

Technical data

Output current MIG/MAG | TIG | MMA: 40-160 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+-15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max) MIG/MAG | TIG | MMA: 26.3 A | 19.5 A | 31.5 A
Maximum effective mains current (I1eff) MIG/MAG | TIG | MMA: 8.3 A | 6.2 A | 10 A
Weight: 4.5 kg
Dimensions L x W x H (mm): 320 x 140 x 260
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)

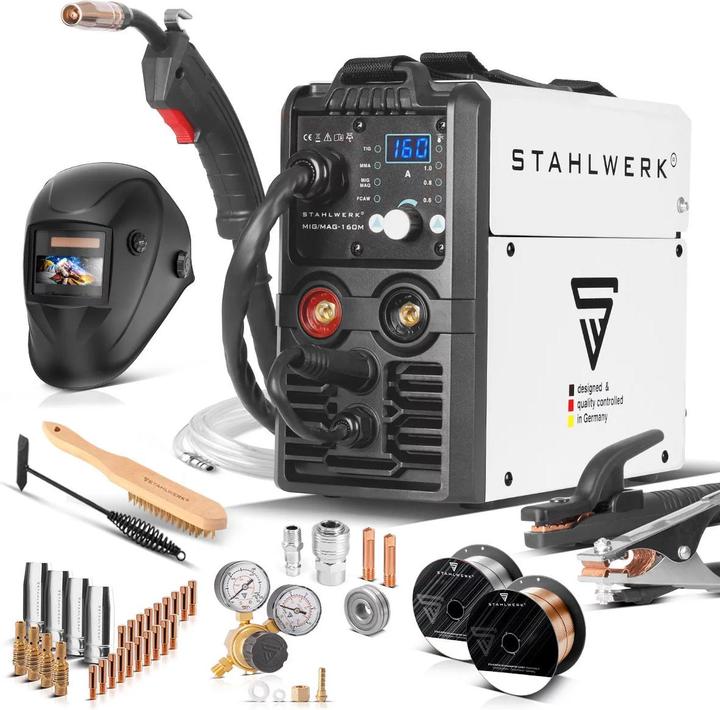

Scope of delivery

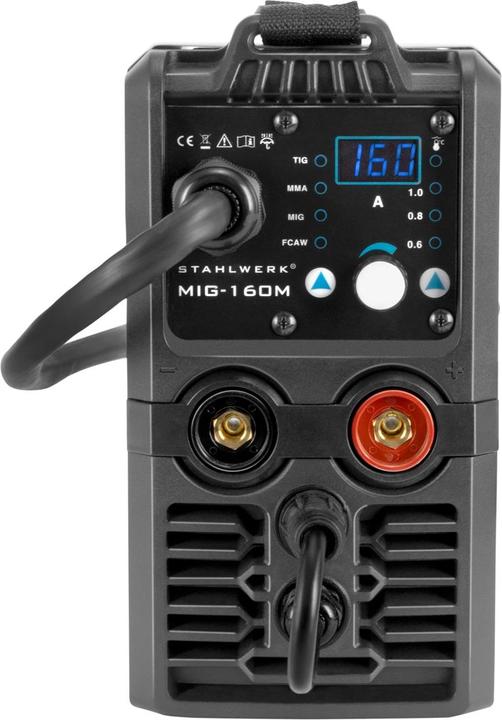

STAHLWERK MIG 160 M IGBT welding machine
Professional MIG welding torch AK-15 / 2 metre hose package (permanently installed on the device)
3-piece MIG accessory set (pre-assembled on the MIG/MAG torch):

• 1 x gas nozzle
• 1 x contact tip 0.8 mm
• 1 x gas nozzle holder
• 1 x contact tip M6 x 28 - ø 0.8 mm
• 1 x contact tip M6 x 28 - ø 1.0 mm
• 0.5 kg flux-cored wire roll 0.8 mm
• Earth cable 3 metres
• Electrode holder 3 metres
• Gas connection hose with quick coupling 5 metres
• Wire guide roll 0.6 mm & 0.8 mm (0.8 mm & 1.0 mm is already installed in the device)
• Protective cover
• MIG MAG 15AK wear parts set 28 pieces
• Mini pressure reducer for argon / CO2 / mixed gas / shielding gas up to 200 bar
• 1 x STAHLWERK MIG MAG premium welding wire - cored wire E71T-GS Ø 0.8 mm S100/D100 wire reel with 1 kg
• 1 x STAHLWERK MIG MAG premium welding wire ER70S-6 SG2 Ø 0.8 mm S100/D100 wire spool 1 kg
• 1 x STAHLWERK fully automatic welding helmet ST-900X black matt.
