Properties

MIG MAG - gas metal arc welding with direct current (DC). Welding can be carried out with inactive/inert (MIG, e.g. argon) or active (MAG, e.g. CO2) gases. Gas and welding wire come from one torch head and enable welding work to be carried out with just one hand.

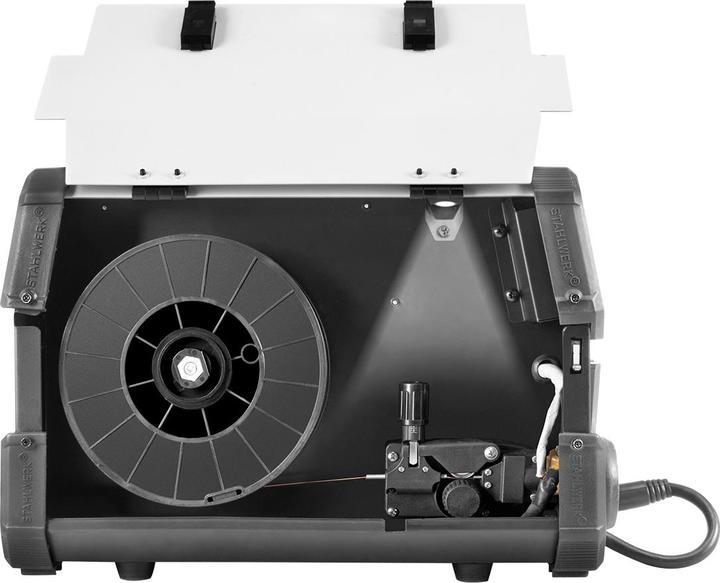

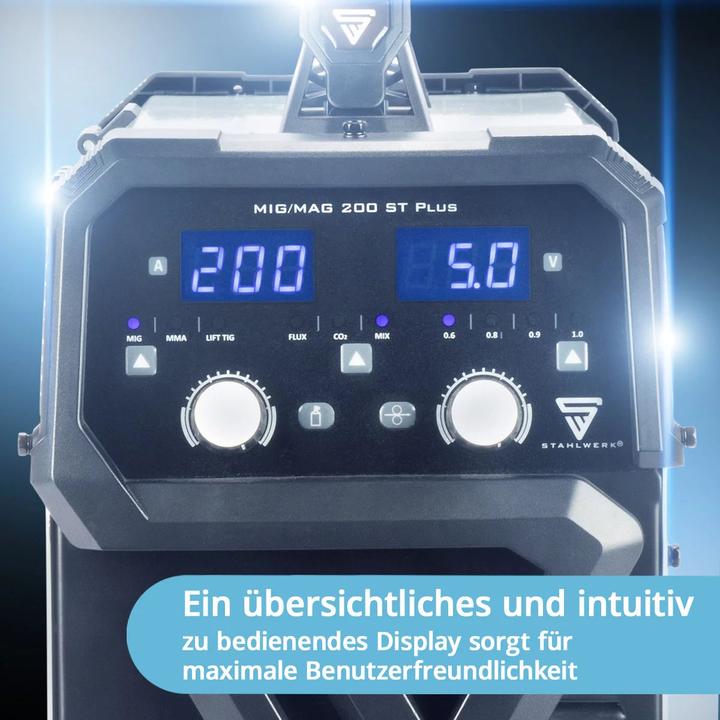

Synergic wire feed

Technical data

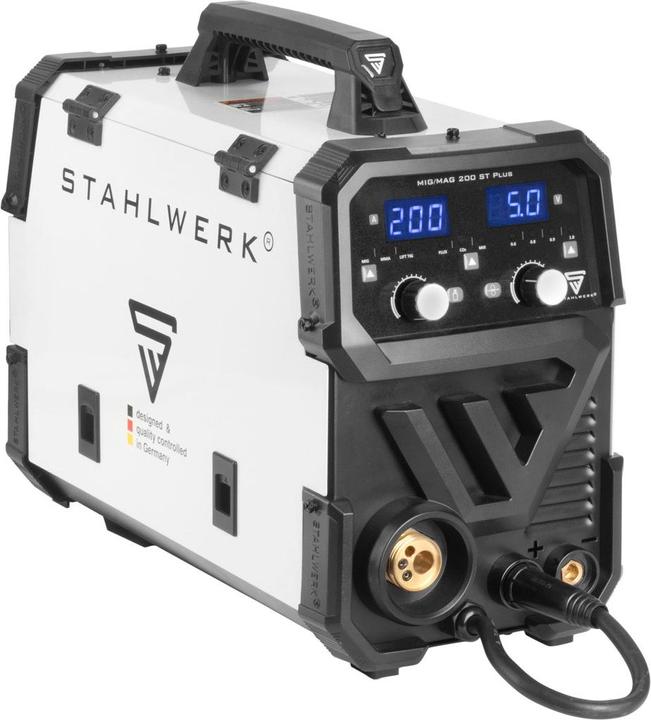

Model: Steelworks welding machine MIG MAG 200 ST PLUS
Output current MIG/MAG (0.6 / 0.8 / 1.0): 20 - 100 A / 40 - 200 A / 50 - 200 A
FLUX output current (0.6 / 0.8 / 0.9 - 1.0): 20 - 160 A / 40 - 200 A / 50 - 200 A
Output current MMA/LIFT-TIG: 20 - 200 A
Duty cycle (40°C): 15% at 200 A / 60% at 100 A / 100% at 77 A
Protection class: IP21S

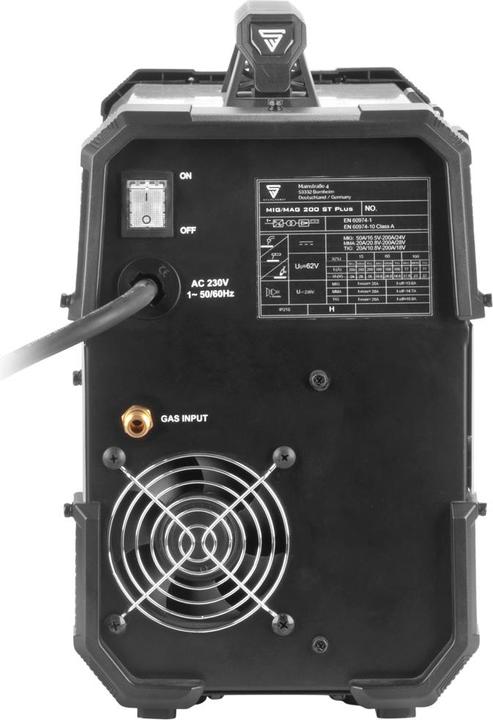

Mains voltage: 1 x 230 V AC (+-15%)
Mains frequency: 50/60 Hz
Open-circuit voltage: 62 V
Maximum mains current (I1max) MIG / LIFT-TIG / MMA: 35 A / 28 A / 38 A
Maximum effective mains current (I1eff) MIG / LIFT-TIG / MMA: 13.6 A / 10.8 A / 14.7 A
Weight: 10 kg

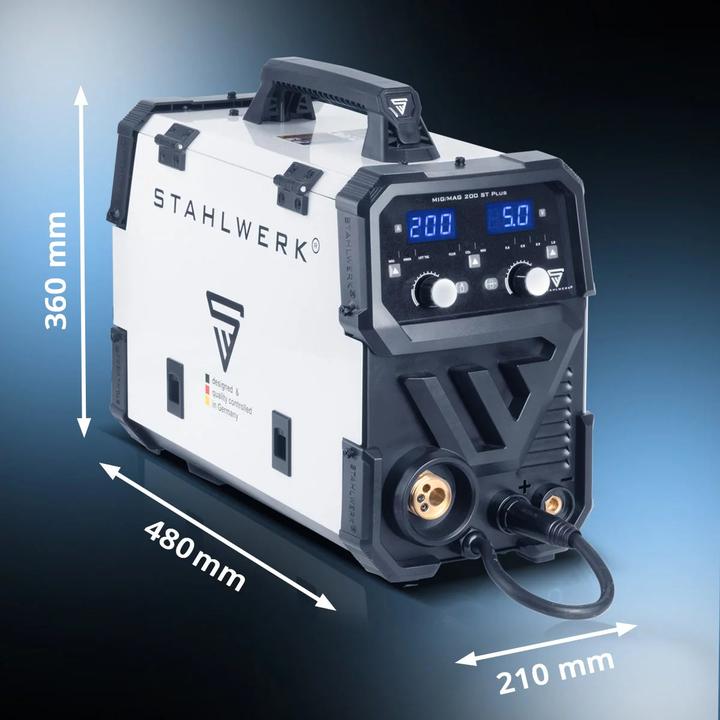

Dimensions L x W x H (mm): 480 x 210 x 360
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: SGS Standards Technical Services Co, Ltd

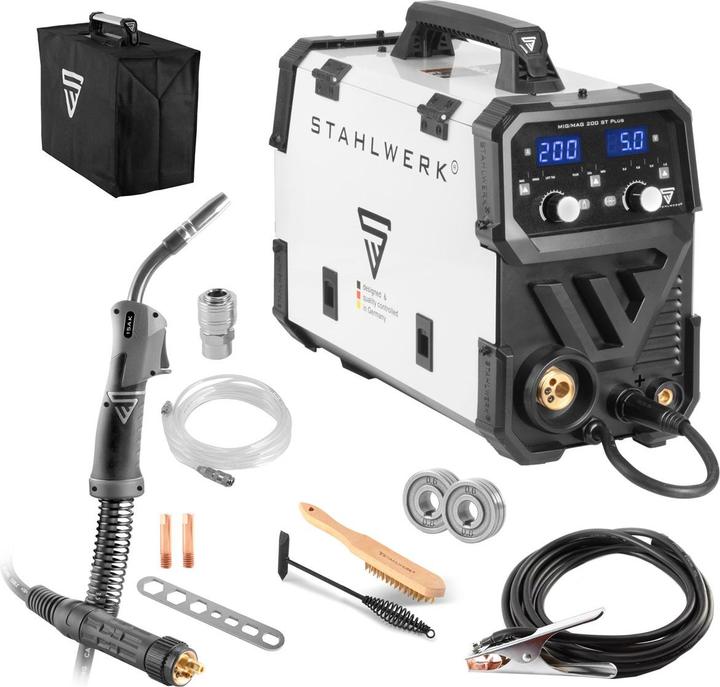

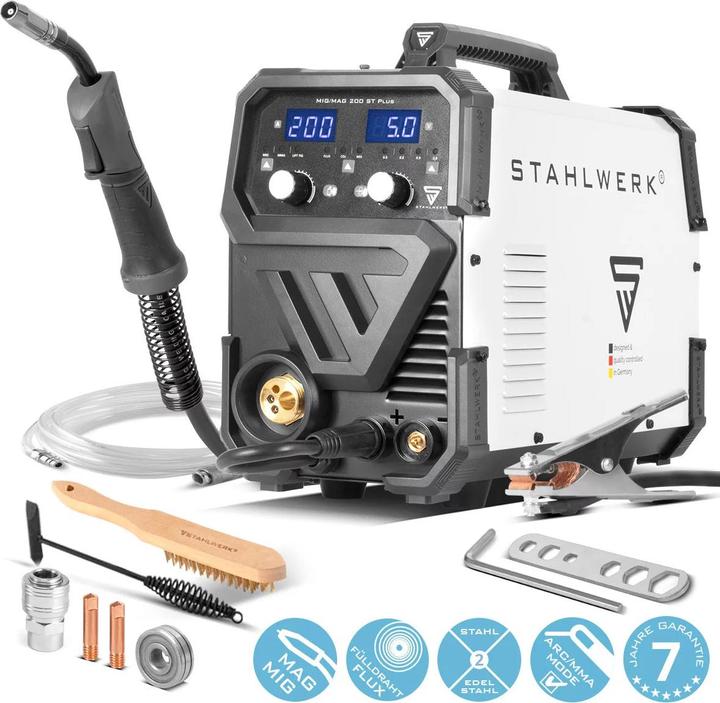

Scope of delivery

1 x MIG MAG 200 ST PLUS steelwork welding machine
1 x AK-15 professional MIG welding torch / 3 m hose package with Euro central connection
1 x gas connection hose with quick-release coupling 5 m
2 x wire guide rolls 0.8/1.0 mm (one is already pre-assembled)
1 x quick coupling gas pressure reducer incl. O-seal
1 x Allen key
2 x contact tips 0.8 mm (one pre-assembled)
1 x contact tip 1.0 mm
1 x earth cable 3 m
1 x slag hammer
1 x wire brush
1 x assembly spanner
1 x protective cover
