Technical data
Model: STAHLWERK MIG MAG 270 digital welding machine
Output current MIG / MMA: 40 - 270 A
Duty cycle MIG / MMA (40°C): 10% at 270 A / 100% at 85 A
Protection class: IP21S
Mains voltage: 400 V AC (+-15%) 3~
Mains frequency: 50/60 Hz
Maximum mains current (I1max) MIG / MMA: 13.6 A / 15.2 A
Maximum effective mains current (I1eff) MIG / MMA: 4.3 A / 4.8 A
Weight: 16.6 kg

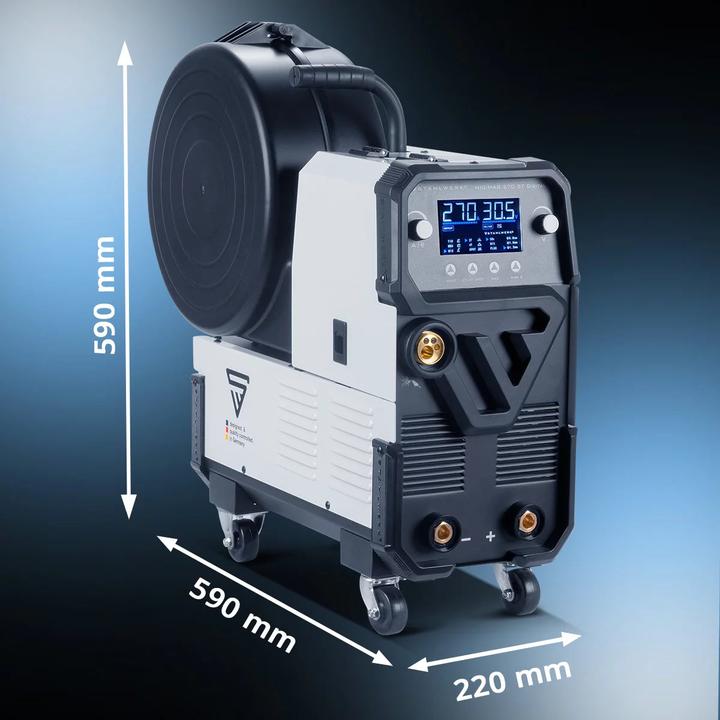

Dimensions L x W x H (mm): 590 x 220 x 590
Mains connection: CEE 16 plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: TüV Rheinland LGA Products GmbH

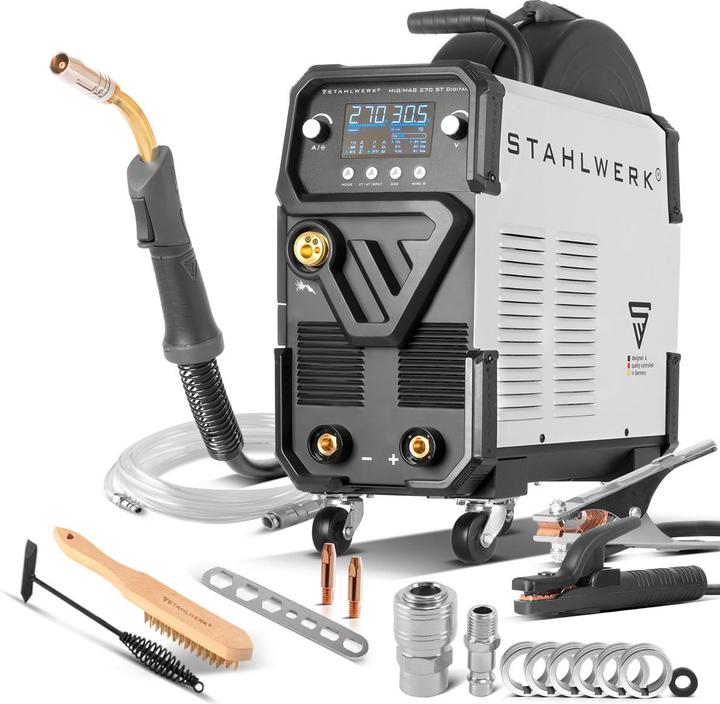

Scope of delivery
1 x STAHLWERK MIG MAG 270 digital welding machine
1 x professional MIG welding torch AK-25 / hose package 4 metres with Euro central connection
1 x 3-piece MIG accessory set (pre-assembled on the MIG/MAG torch): 1 x gas nozzle, 1 x contact tip 1.0 mm, 1 x contact tip holder
2 x contact tips (1 x 1.0 and 1 x 1.2)
1 x installation spanner
1 x 5 m earth cable with 13 mm mandrel connection, 35 mm² cross-section
1 x electrode holder 5 m with 13 mm mandrel connection, 35 mm² cross-section
2 x wire guide rolls each 0.8 & 1.0V (already installed in the device), 1.0 & 1.2V
1 x gas connection hose with quick coupling 5 m
1 x snap-on connection set
1 x wire reel adapter
1 x slag hammer.
Voltage | 400 V |
Welding device Type | Inverter welder |
Max. Welding current | 270 A |
Min. welding current | 40 A |
Item number | 46785799 |
Manufacturer | Stahlwerk |
Category | Welding machines |
Release date | 24.6.2024 |
Colour | White |
Exact colour description | White |
Welding device Type | Inverter welder |
Max. Welding current | 270 A |
Min. welding current | 40 A |
Power source | 400V |
Voltage | 400 V |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 0.59 m |
Width | 0.22 m |
Height | 0.59 m |
Weight | 16.60 kg |
Length | 71 cm |
Width | 43 cm |
Height | 67.50 cm |
Weight | 32.46 kg |
How often does a product of this brand in the «Welding machines» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «Welding machines» category returned?
Source: GalaxusThe MIG MAG 270 ST Digital welding machine is comprehensively equipped, has very good performance parameters and is also easy to use for trainees. It achieves an overall score of 1.5 in the upper class for professionals and, with a price of "only" 700 euros, a very good value for money.
