Properties
MMA electrode welding / ARC welding - a universal welding process. An electric arc melts the electrode to form the weld seam. No shielding gas is required and can therefore be used flexibly at any location.
Can be expanded to a DC TIG welding unit with our optionally available WP-17V universal lift TIG torch.
IGBT technology - The latest and most modern transistor technology enables maximum power and duty cycle! No transformer, no MOSFET, state-of-the-art IGBT!

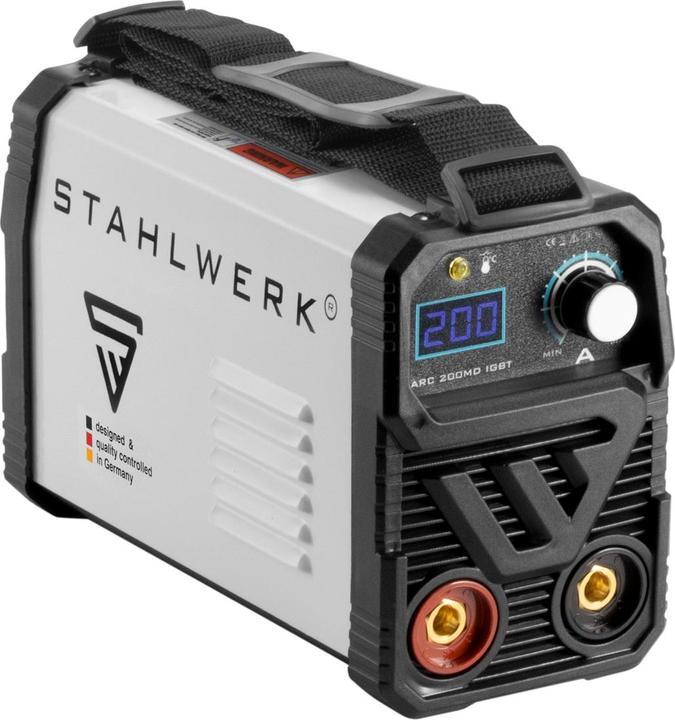

Lightweight & compact design - only 3.2 kg weight and dimensions of 245 x 100 x 160 mm. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more heavy carrying!
Highest efficiency & performance - single-phase alternating current (230V) supplies the device and allows an output power of real 200 amps.
Technical data
Output current MMA: 30-200A
Protection class: IP21S
Mains voltage: 1 x 230VAC (+-15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 40.3A
Maximum effective mains current (I1eff): 13,3A
Weight: 3.2 kg

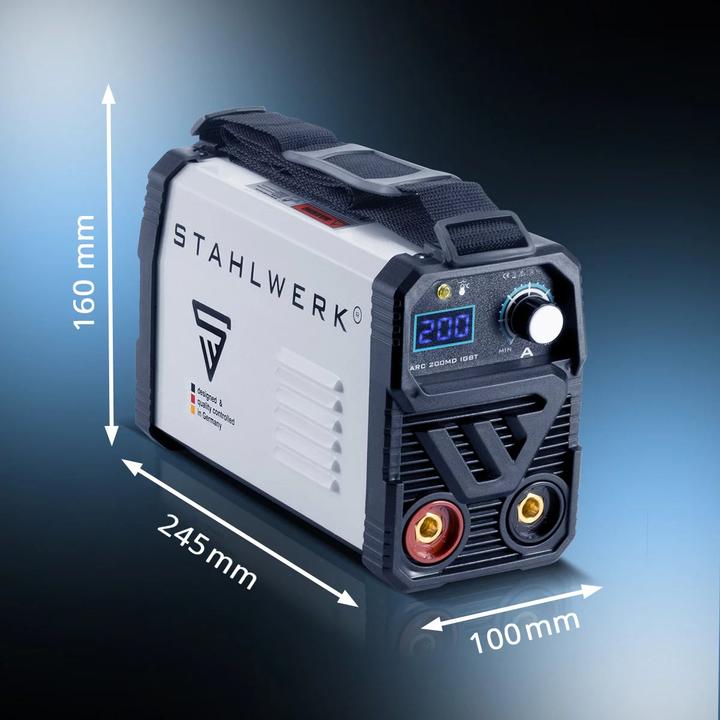

Dimensions L x W x H (mm): 245 x 100 x 160
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
IGBT board type: Single board

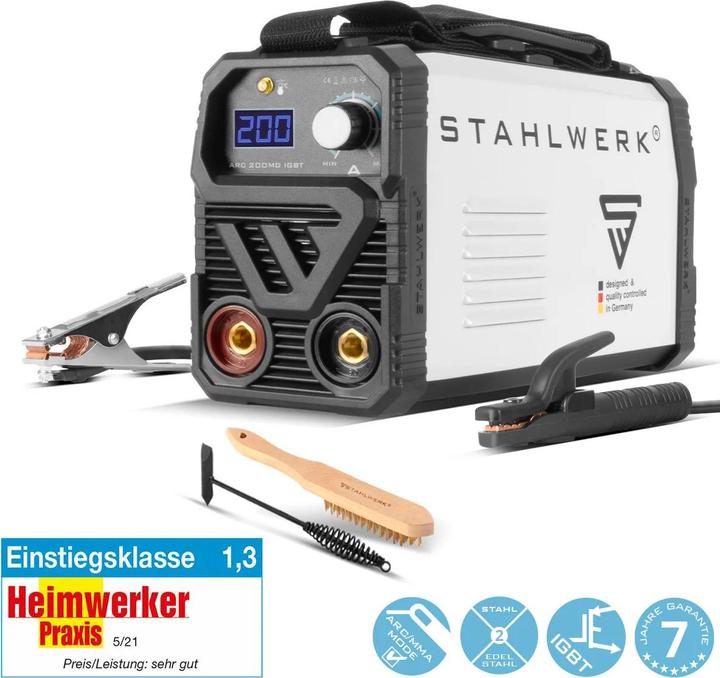

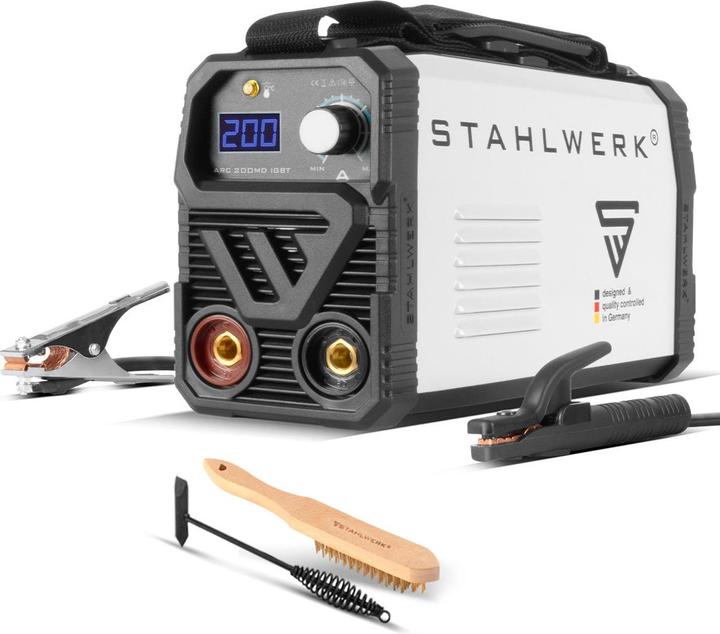

Scope of delivery

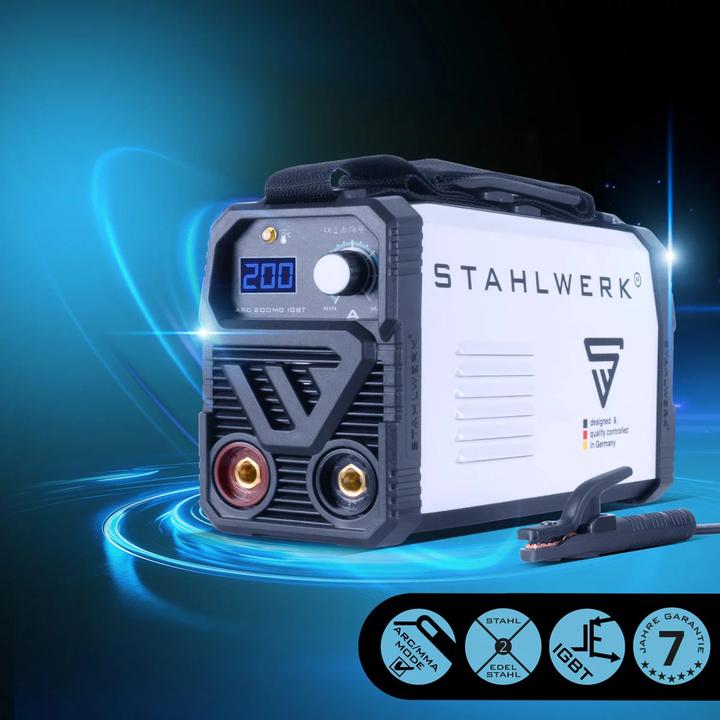

1 x The ARC 200 MD IGBT steelwork welding machine
1 x earth cable 3 metres
1 x electrode holder 3 metres
1 x protective cover
1 x wire brush
Voltage | 230 V |
Welding device Type | Inverter welder |
Max. Welding current | 200 A |
Min. welding current | 30 A |
Item number | 34282020 |
Manufacturer | Stahlwerk |
Category | Welding machines |
Manufacturer no. | 1798-001 |
Release date | 17.5.2023 |
Colour | Multicoloured |
Exact colour description | White |
Welding device Type | Inverter welder |
Max. Welding current | 200 A |
Min. welding current | 30 A |
Power source | Electrical connection |
Voltage | 230 V |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 0.25 m |
Width | 0.10 m |
Height | 0.16 m |
Weight | 3.20 kg |
Length | 40.50 cm |
Width | 35 cm |
Height | 31.50 cm |
Weight | 6.98 kg |
