The powerful plasma cutter from Stamos, with a cutting depth of 34 mm, is equipped for demanding tasks in repair and renovation as well as for efficient use in production. The high performance is made possible by the particularly reliable IGBT inverter technology. With a duty cycle of 60%, the cutting current is 125 A. Even at a 100% duty cycle, a high 96.8 A is still achievable. With a working range between 30 and 125 A, the Stamos provides the necessary flexibility in choosing the cutting current.

Technical details:
Function: Plasma cutting
Input voltage: 400 V 3-phase
Input frequency: 50 Hz
Nominal input current: 22 A
Maximum input current: 31 A
Nominal input power: 15.4 kVA
Maximum input power: 21.8 kVA
No-load voltage: 300 V
Cutting current: 30 - 125 A
Duty cycle: 60%
Cutting current at 100% duty cycle: 96.8 A
Cutting current at 60% duty cycle: 125 A
Air post-flow time: 5, 10, 60 s
Housing cooling: Fan
Torch cooling: Air
Ignition: Pilot
Length of grounding cable: 4 m
Length of plasma hose package: 5 m
Length of compressed air hose: 4 m
Length of electrical supply line: 3.8 m
Maximum cutting depth: 34 mm
Cutting width: 1.4 mm
Air flow rate: 250 l/min
Required air pressure: 7 bar
Insulation class: F
Protection class: IP21s

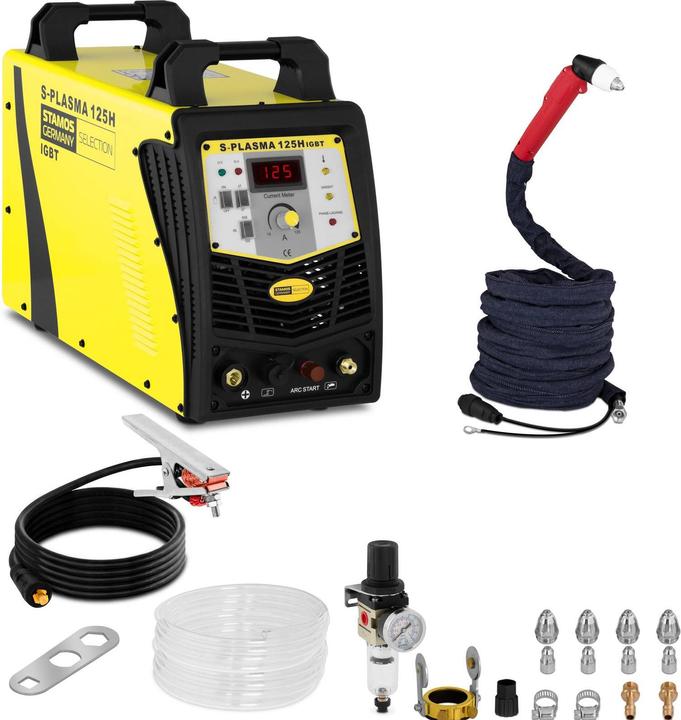

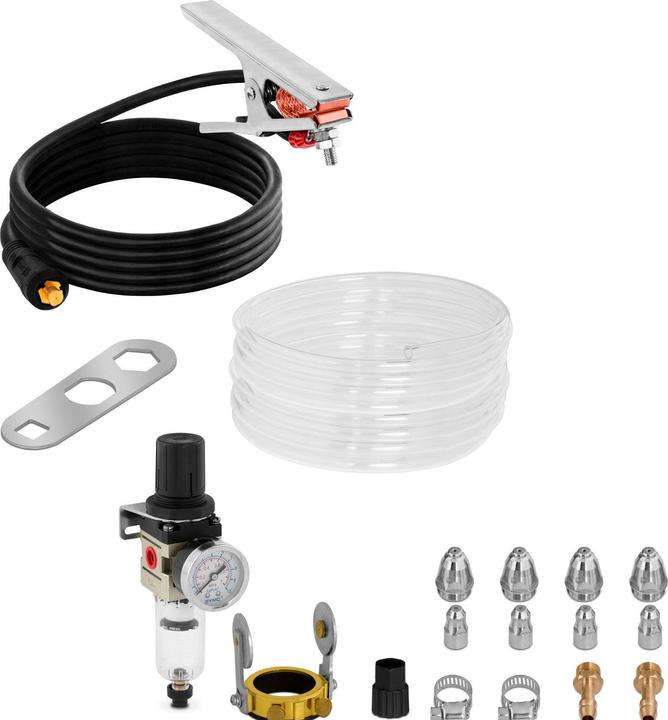

Scope of delivery:
Plasma cutter S-Plasma 125H, plasma hose package 5 m, air hose 4 m, grounding cable 4 m, ceramic nozzle, 5 cutting nozzles, 5 plasma electrodes, pressure gauge and pressure reducer, 2 clamping rings, wrench, hose cover, operating manual.
