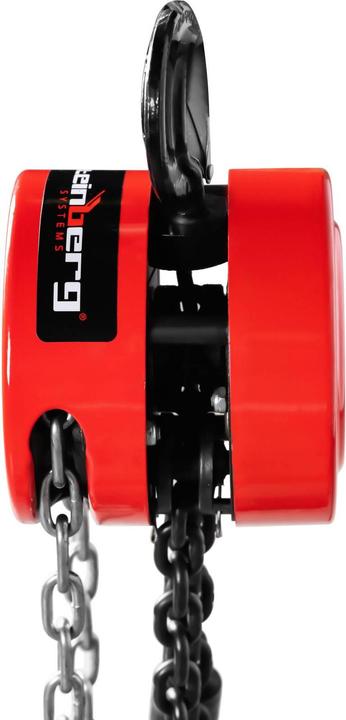

Chain Hoist - 1,000 kg - 6 m

A steel beam, a motor block, or a scaffolding – there are many objects whose weight is simply too heavy to lift without assistance. The SBS-FZ 1000/6M chain hoist from Steinberg Systems multiplies your strength and makes lifting heavy loads easier. Thanks to its flexible design, it is extremely useful both on construction sites and in workshops or warehouses.

The chain hoist from Steinberg Systems has a lifting capacity of up to 1 ton. This high load capacity is made possible by the robust steel construction of the device. Equally stable is the steel chain used for lifting, which features 6 mm thick links. Additionally, the chain is hardened, and the screws, washers, and bolts are galvanized. This protects the device from corrosion and meets the highest industrial standards.

The manual chain hoist allows you to lift objects up to a height of 6 m, giving you maximum mobility and freedom of movement. The chain hoist is operated manually and does not require an additional power source. Three gears inside the device ensure optimal power transmission, making it extremely versatile.

The chain block can be attached to a stable hook on the ceiling or a scaffolding. A second hook is designated for the load and can be secured with a safety latch to prevent the object from slipping. You can block the chain while lifting or lowering as needed, giving you full control when working with the chain hoist.

Technical details:
Model: SBS-FZ 1000/6M
Chain length: 6 m
Chain diameter: 6 mm
Max. lifting load: 1,000 kg
Gear ratio: 1/8
Hook material: Chrome-plated carbon steel
Brake: Friction brake
Clutch: Gear
Gears: 3
Motor: Manual
Material: Housing - Low-alloy steel; Chain - black, hardened steel
Max. load: 1,000 kg

Delivery includes:
Chain hoist SBS-FZ 1000/6M
Operating manual.
