The Pipe Camera for Deep Insights

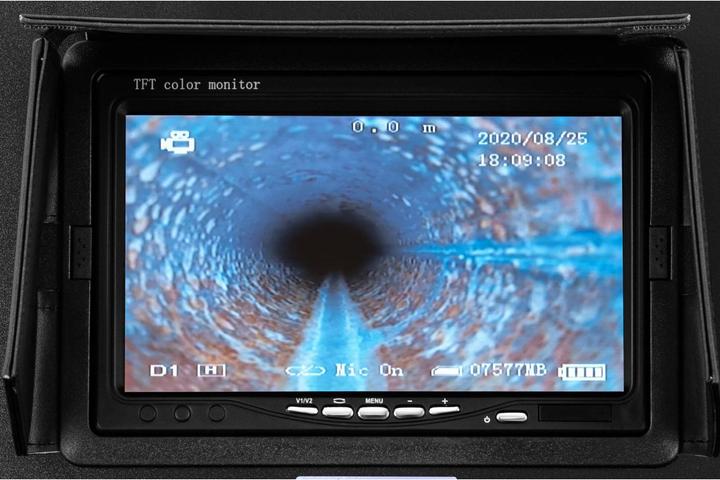

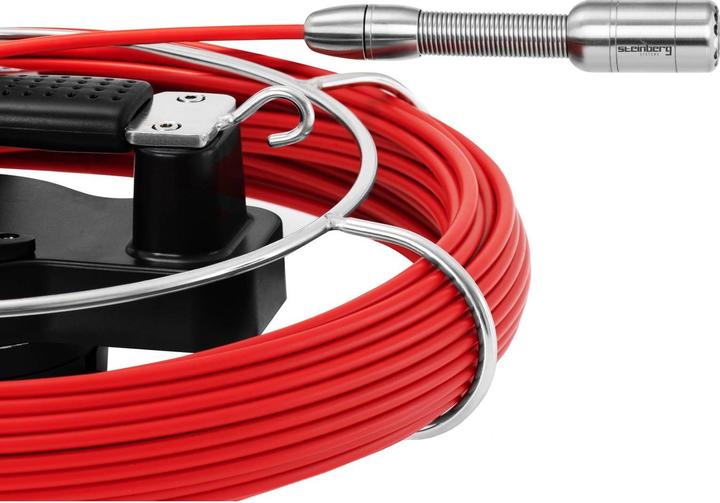

To give you an impression of pipelines and to inspect damaged areas accurately, the pipe camera from Steinberg Systems is the top choice. The camera head is guided into the pipe using a 30 m fiberglass cable. Both the camera head and cable are waterproof (IP68). The flexible camera head can be rotated 90° and has a viewing angle of 105°. Twelve integrated LED lamps provide the necessary illumination. The high-quality sapphire lens delivers crystal-clear images on the LCD TFT monitor.

Technical Details:

• Display: LCD
• Digital Zoom: x10
• Viewing Angle: 105°
• Head Rotation: 90°
• LED Light: Yes
• USB Interface: Yes
• Carrying Case Included: Yes
• Storage: 8 GB SD card (supports a maximum of 256 GB SD card or USB stick)
• Batteries: Built-in lithium-ion battery 4,400 mAh / 12.6 V
• Material: Control box: ABS; Camera head: Stainless steel 304; Cable: PP, fiberglass, copper; Case lining: EPE; Cable grip: PVC; Guide stars: PC; Sunshade: PU; Charger: ABS; Connection cable: TPU
• Lens Type: Sapphire glass
• Power Supply: 100 - 240 V / 50/60 Hz 1.5 A
• Probe Length: 30 m
• Head Diameter: 23 x 120 mm
• Number of LEDs: 12
• Display Type: 7-inch TFT color monitor
• Housing Material: Fiberboard and aluminum alloy
• Sensor Resolution: 1/4 inch
• Photo/Video Format: One-touch
• Signal Transmission: Cable
• Protection Class IP: IP68

Delivery Contents:
Pipe camera SBS-EC-300, TFT monitor (7"), base unit, control box, connection cable, cable, camera head (23 mm), 2 guide stars (40, 80 mm), battery with charger, SD card (8 GB), USB stick, microphone, 2 screwdrivers, remote control, cable (30 m), cable reel, user manual.
