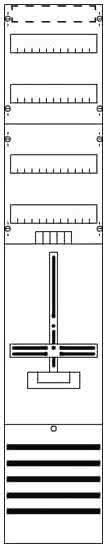

The complete meter panels of the DF series with three-point mounting are designed for installation in the Comfortline cabinet. The panels are pre-wired, ensuring quick and easy assembly in the cabinet. The integrated main circuit branch terminals provide maximum space availability in the AAR, which can be used for up to three circuits as desired. Furthermore, the cable routing, for example for the intelligent metering system, has been optimized with new cable routing channels, making installation a breeze. With the optional busbar connector, cross-wiring of multiple panels can be easily implemented. Applicable standards: DIN VDE 0603-1, DIN 43870-1, DIN 43870-2, DIN 43870-3, VDE-AR-N 4100.

Type: DF19C1V

Meter panels disassembled meter panel.
