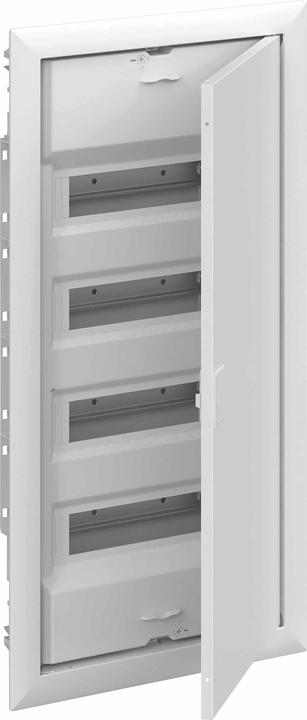

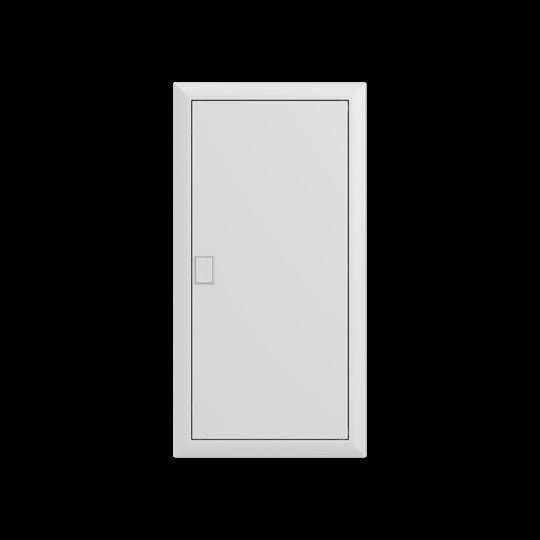

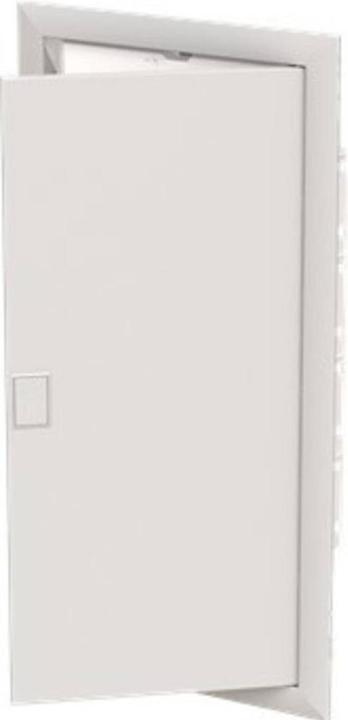

Striebel&John Flush-mounted distribution board UK648N3 Manufacturer: Striebel&John Designation: Flush-mounted distribution board 48PLE IP30 with door Type: UK648N3 Mounting type: flush-mounted Number of rows: 4 Width in pitch units: 12 Type of cover: door Design of cover: closed Transparent cover/door: no Material of housing: plastic Height: 747 mm Width: 384 mm Depth: 97 mm Installation depth: 75 mm Installation height: 605 mm Installation width: 280 mm Internal depth: 75 mm Grounding terminal block: yes Neutral conductor terminal block: yes DIN rail: yes With mounting plate: no Mounting option: yes EMC design: no Color: white RAL number: 9016 Protection class (IP): IP30 With lock: yes Type of lock: push button Signal passing door: noStriebel&John UK648N3 flush-mounted distribution boards: further detailsThe UK600 series of circuit distribution boards are designed for flush mounting. They convince with many new and unique technical features. For example, a connection space that is up to 200% larger enables simple and efficient installation of the devices. The removable device carrier can be placed in the distribution board according to requirements, thus also guaranteeing easy installation. Clever details such as the cable entry slides with integrated terminal receptacle and the variable use in solid or drywall underline the high flexibility of the distribution boards. An optionally available interchangeable picture frame turns the UK600 into an eye-catcher in no time at all and integrates it into any environment. The distributors can be used in flush-mounted and cavity wall mounting and have a VDE mark. Applicable standards: DIN 43871, DIN EN 60670-24, VDE 0606-24 EAN: 4011617313724 Supplied with: Striebel&John flush-mounted distribution board 48PLE IP30 with door UK648N3, Packaging unit: 1 piece, EAN: 4011617313724.
