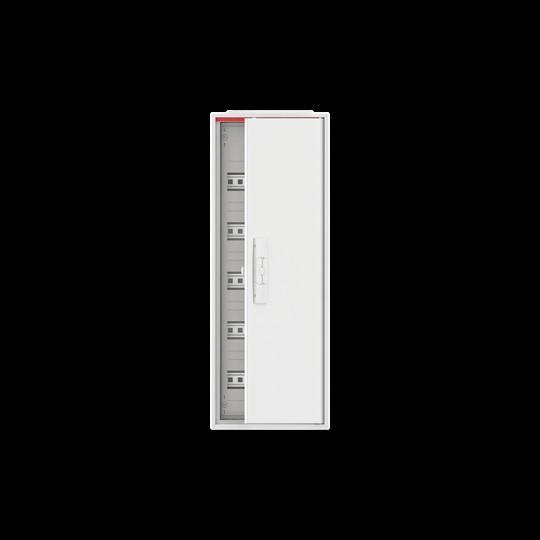

Striebel & John Surface-Mounted Mini Distribution Board CA15V

Manufacturer: Striebel & John
Description: Surface-Mounted Mini Distribution Board 1FB, 5-row
Type: CA15V
Mounting Type: Surface-mounted
Number of Rows: 5
Width in Division Units: 12
Type of Cover: Door
Cover Design: Closed
Transparent Cover/Door: No
Material of Housing: Steel
Height: 800 mm
Width: 300 mm
Depth: 160 mm
Installation Depth: 0 mm
Installation Height: 0 mm
Installation Width: 0 mm
Internal Depth: 152 mm
Ground Terminal Block: Yes
Neutral Terminal Block: Yes
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: White
RAL Number: 9016
Protection Class (IP): IP44
With Lock: Yes
Type of Locking: Other
Signal-Passing Door: No

The mini distribution boards of the ComfortLine Compact-A series are designed for surface mounting. They are used, for example, in the interior of residential, commercial, or industrial buildings. The housings are delivered with a frame and door and feature upper, lower, and side cable entry options. Each field also includes a cable catch option at the top and bottom, which significantly simplifies cable installation. Thanks to the QMS snap-in technology, the expansion with distribution fields and combo sets can be customized according to customer requirements. The housings meet the IP44 protection class and have a VDE test mark. Color is white RAL 9016 and powder-coated.
