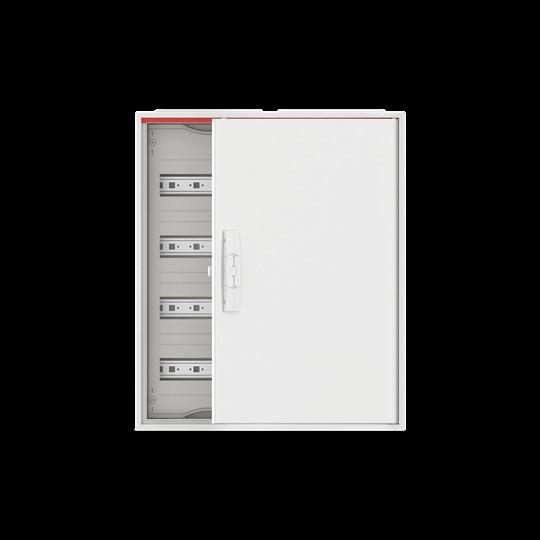

Striebel&John Surface-Mounted Distribution Board CA24V

Manufacturer: Striebel&John
Description: Surface-Mounted Distribution Board 2FB, 4-row
Type: CA24V
Mounting Type: Surface-Mounted
Number of Rows: 4
Width in Division Units: 24
Type of Cover: Door
Cover Design: Closed
Transparent Cover/Door: No
Material of Housing: Steel
Height: 650 mm
Width: 550 mm
Depth: 160 mm
Installation Depth: 0 mm
Installation Height: 0 mm
Installation Width: 0 mm
Internal Depth: 152 mm
Ground Terminal Block: Yes
Neutral Terminal Block: Yes
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: White
RAL Number: 9016
Protection Class (IP): IP44
With Lock: Yes
Type of Locking: Other
Signal-Passing Door: No

The distribution boards of the ComfortLine Compact-A series are designed for surface mounting. They are used, for example, in the interiors of residential, commercial, or industrial buildings. The housings are delivered with a frame and door and feature upper, lower, and side cable entry options. Each field also comes with a cable catch option at the top and bottom, which significantly simplifies cable installation. The QMS snap-in technology allows for the customization of the expansion with distribution fields and combo sets according to customer requirements. The housings meet the IP44 protection class and have a VDE test mark. Color: White RAL 9016 and powder-coated.

Delivered: Striebel&John Surface-Mounted Distribution Board 2FB, 4-row CA24V, Packaging Unit: 1 piece.
