TE Connectivity Cable sleeve CH6881-000 RayGel P
More than 10 items in stock at supplier
Product details

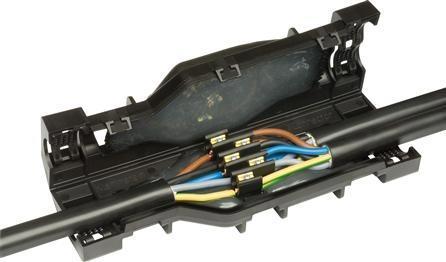

The CH6881-000 RayGel P cable joint from TE Connectivity is a highly advanced solution for the safe and reliable connection of cables. This joint is specifically designed for outdoor use and provides effective protection against moisture and water, making it ideal for applications in street, garden, and pool lighting. It allows for easy and clean installation without the need to cut the main conductor, significantly simplifying the installation process. The cable joint is suitable for various cable cross-sections and can be used for both aluminum and copper conductors. With its IP68 certification, it is well-suited for use in the ground and in damp environments. The environmentally friendly and label-free design ensures additional safety and sustainability.
- Suitable for cable cross-sections from 1.5 to 6 mm²
- Easy installation without cutting the main conductor
- IP68 protection class for use in the ground and in damp environments
- Environmentally friendly and label-free
- System tested according to the international joint standard CENELEC EN 50393.
Item number | 8460169 |
Manufacturer | TE Connectivity |
Category | Cable joints |
Manufacturer no. | CH6881-000 |
Release date | 21.4.2018 |
External links |
Exact colour description | Black |
Colour | Black |
Cable connection type | Cable sleeve |
Clamps diameter | 1.50 mm |
Suitable for cable cross-section | 6 mm² |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Protection type (IP code) | IP68 |

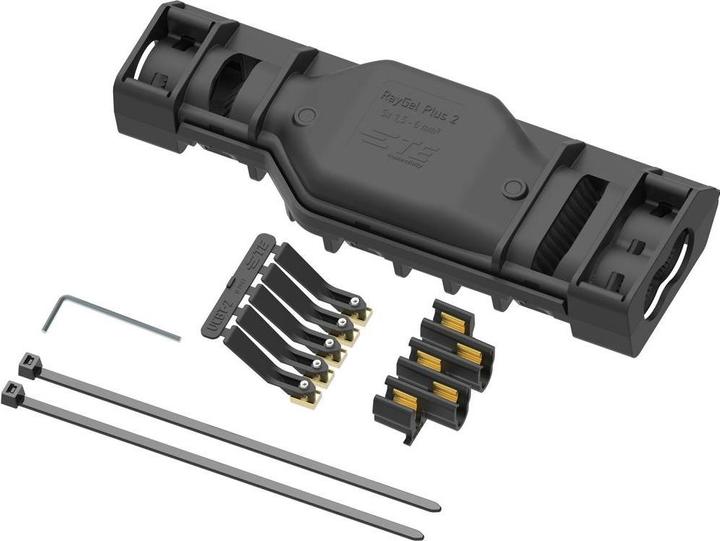

Scope of delivery | Cable ties, Connection terminals, Hexagon wrench, RayGel 2 sleeve |
Items per sales unit | 1 x |
Length | 233 mm |
Width | 78 mm |
Height | 404 mm |
