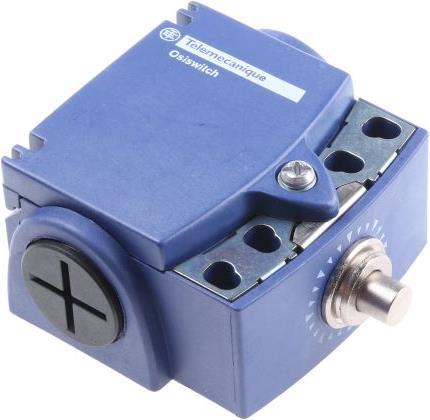

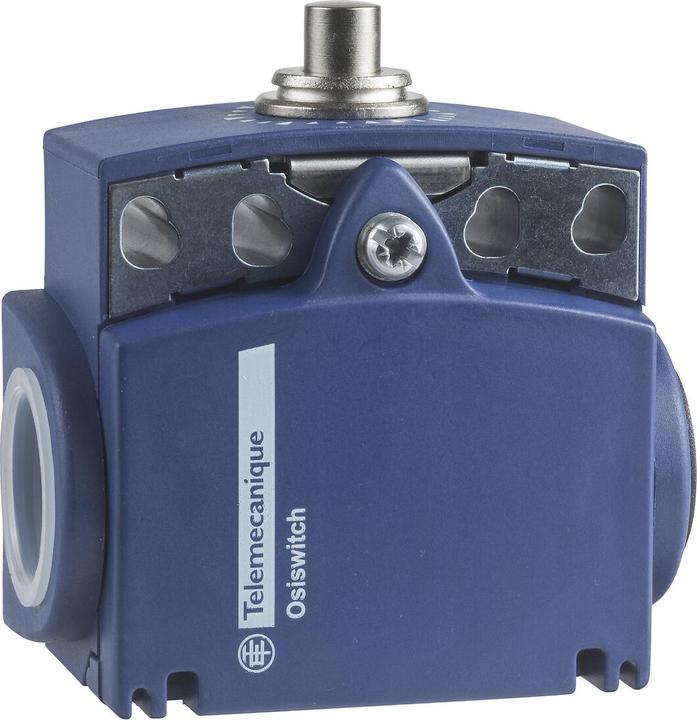

Telemechanique Sensors Position Switch XCKT2110P16

Manufacturer: Telemechanique Sensors
Designation: Universal Position Switch
Type: XCKT2110P16
Width of the sensor: 58 mm
Height of the sensor: 51 mm
Length of the sensor: 30 mm
Rated operational current Ie at AC-15, 230 V: 3 A
Rated operational current Ie at DC-13, 230 V: 0.27 A
Switching function: Snap-action
Latching switching function: No
Electronic output: No
Forced opening: Yes
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Interface design: Without
Interface design for safety-related communication: Without
Housing design: Special design
Material of the housing: Plastic
Coating of the housing: Other
Design of the actuator: Metal plunger
Orientation of the actuator: Other
Design of the electrical connection: Cable entry (metric)
With status indication: No
Suitable for safety functions: No
Explosion protection category for gas: None
Explosion protection category for dust: None
Ambient temperature during operation: -25 to 70 °C
Protection class (IP): IP66/IP67

Further details: OsiSense XC position switch XCK T, connection M16, actuator metal plunger, switching contacts normally open + normally closed, switching principle snap. Complete devices, encapsulated in plastic. Dimensions W/D/H 58 x 30 x 51 mm (without actuator). Protection class IP 66 and IP 67 as well as IK 04 (also available in modular design).
