Properties

• One for all: building authority approval for cracked & non-cracked concrete, perforated and solid brick and post-installed reinforcement connections.
• LEED and emission tested: for ecological and healthy living
• Commercial threaded rods* can be used
• Earthquake tested C1
• Can even be used at extremely low temperatures (down to -10 °C)
• Can be used in wet and water-filled boreholes
• Low axial and edge distances due to anchoring without expansion pressure
• Attachment of high loads up to 13.3 tons weight
• Can also be used overhead
• Reuse of the opened cartridge by changing the static mixer
• Variable anchorage depth - saves time and material

*Approval

Description & Application

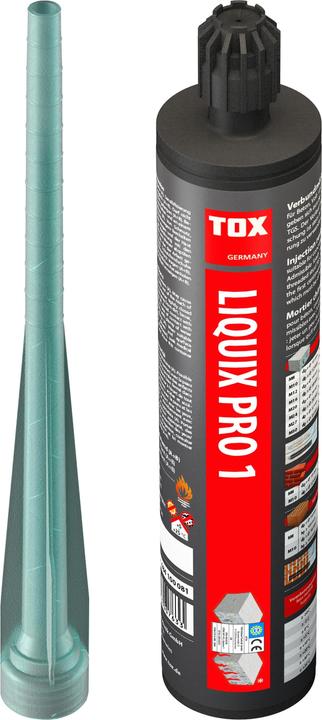

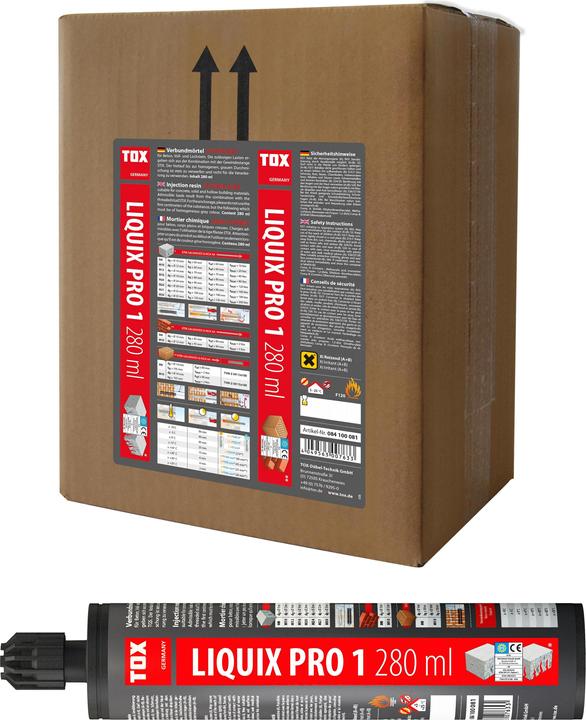

Liquix Pro 1 is a styrene-free vinyl ester compound mortar available in different cartridge types and cartridge sizes with static mixer Liquix Mix.

• For approval-relevant fixings in cracked and non-cracked concrete and brickwork
• Approved in connection with commercially available threaded rods or TOX Threaded Rod Stix

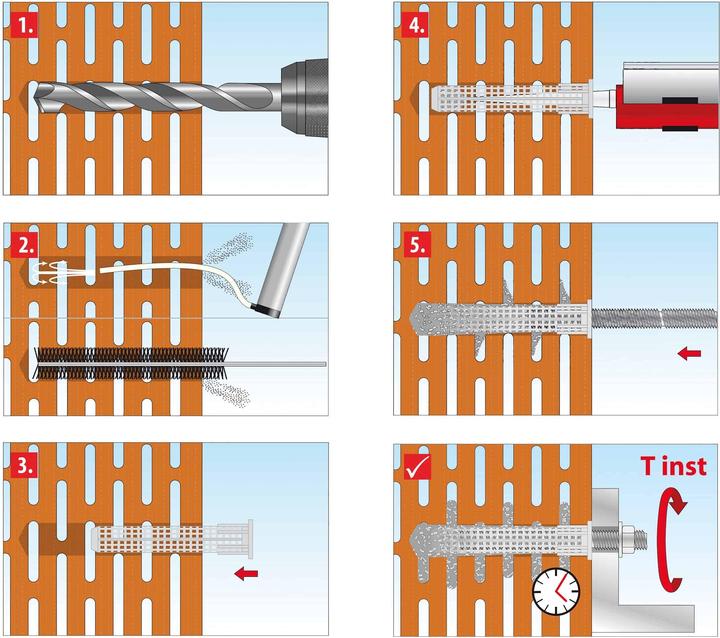

Processing & installation

• In perforated brick, work with sieve sleeve
• Clean drill hole
• Screw static mixer tightly onto cartridge
• Mark setting depth deviating from standard on anchor rod
• Discard the first approx. 10 cm of the composite mortar and do not use it for fixing
• Fill the cleaned drill hole approx. 2/3 of the way from the bottom of the drill hole or, if a sieve sleeve is used, fill it completely with composite mortar.
• Insert the anchor rod with slight twisting movements to the specified setting depth.
• Observe the torques and curing times of the respective valid approvals.

The mortar may be used in dry or moist concrete as well as in water-filled boreholes.

• For the application of coaxial, peeler and tubular film cartridges, use the Liquix Blaster and Liquix Blaster Pro squeeze guns; for side-by-side cartridges use the Liquix Blaster Plus squeeze gun.
