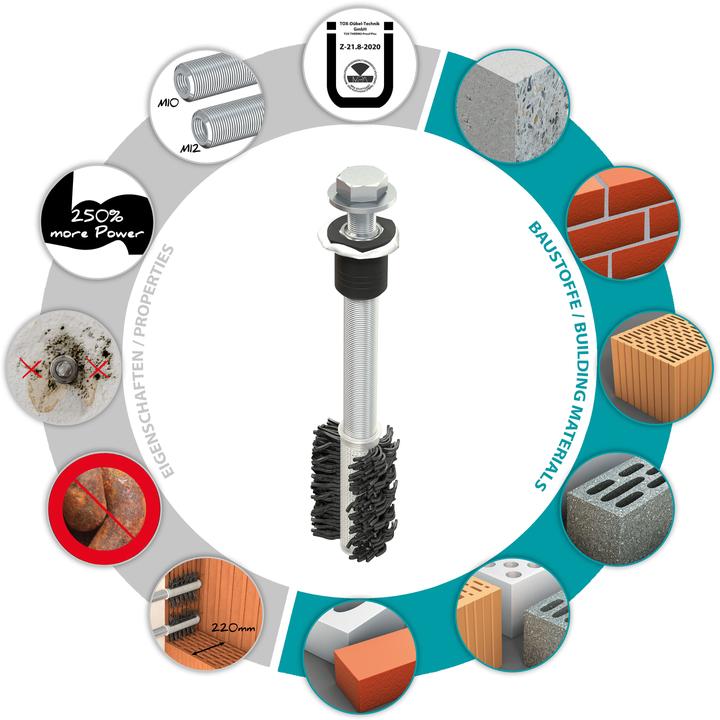

Properties

• Approved by building authorities
• Variable M10 or M12 threaded rod connection
• Only approved spacer fastener with M10 threaded connection as standard e.g. for French balconies. Balconies is used
• Up to 250% more power than competitive products
• Suitable for thick insulation layers and spacer mounts up to 220 mm
• Safe protection against rust, energy loss and thermal bridges due to stainless steel A4

Description & Application

• Heavy duty spacer mounting for insulation, clinker and flat roofs
• Practically no energy loss and no thermal bridges due to stainless steel A4
• Building authority approval for all spacer assemblies
• Simple and quick installation
• For insulations up to 220 mm

Processing & mounting

• Drill through thermal insulation (Ø 30 mm)
• Measure thermal insulation
• drill hole in building material & remove plaster layer if necessary
• Clean drill hole

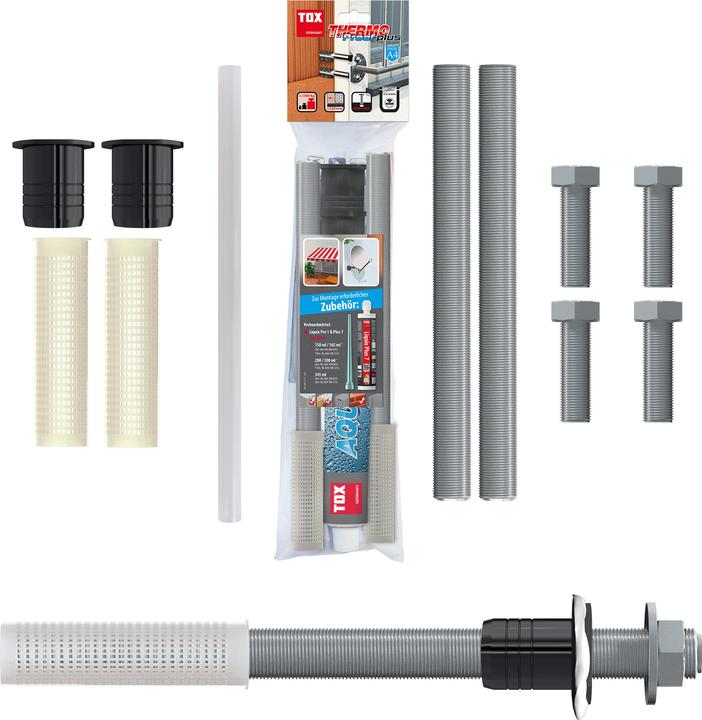

• Shorten threaded rods if necessary (length = drill hole depth + insulation layer) and screw on Iso Spacer
• In perforated brick only with sieve sleeve. Insert it completely into the drill hole
• Fill 2/3 of the borehole in the substrate or the sieve sleeve completely with composite mortar.

Insert threaded rod with pre-mounted Iso Spacer into the drill hole with a slight twisting motion.

• Allow the composite mortar to harden
• Seal gap with silicone
• Mount the attachment
