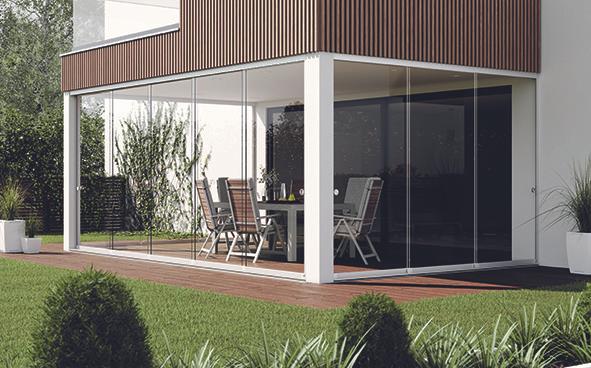

The innovative glass sliding door hardware Atrivant 80, featuring end stop damping and dampened leaf take-up for balcony and terrace glazing, offers great comfort for simple applications both outdoors and indoors.

Many practical features such as dampened leaf take-up, decoupling of the leaves for cleaning, damping system for each leaf, and a discreet locking mechanism allow for everyday extended use of the terrace. Naturally, the quiet operation of the leaves also permits indoor applications, such as a dressing room partition, up to a height of 3200 mm. Outdoor applications can go up to 2500 mm. Maximum leaf weight is 80 kg. Minimum leaf width is 610 mm.

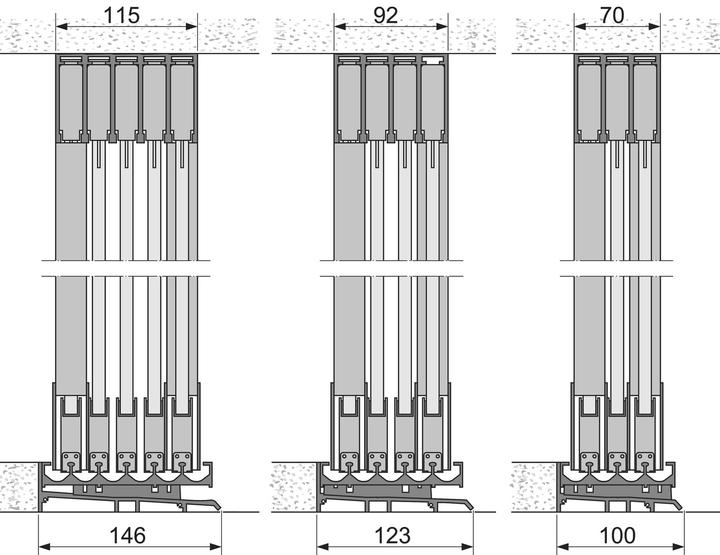

The system can be implemented in 3-, 4-, or 5-track configurations and requires little floor space thanks to the sliding leaves. The open leaves can be parked freely, allowing for ideal use against the wind.

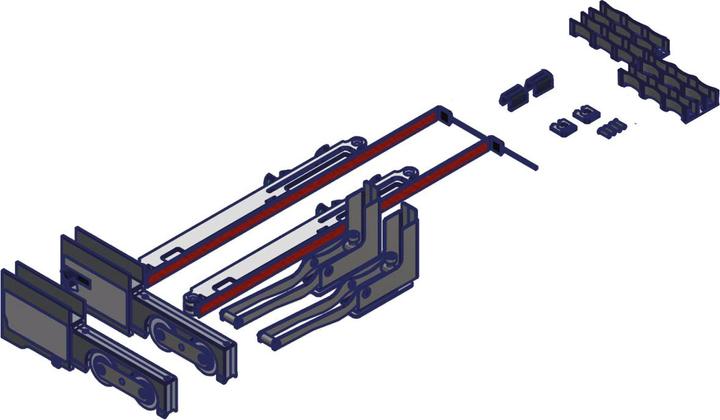

Includes:

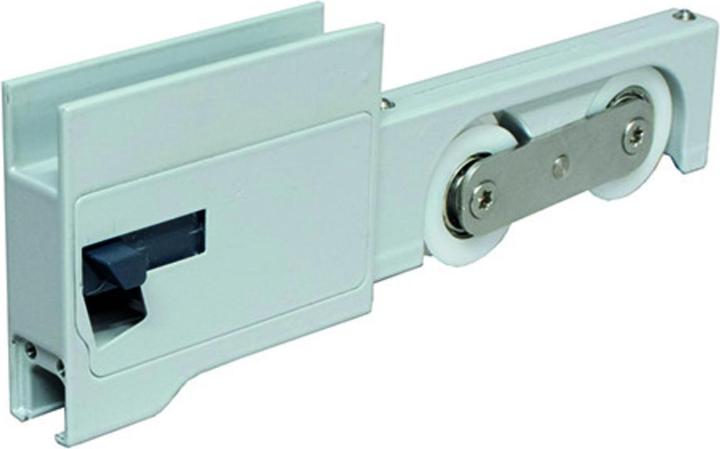

2 x running shoe adapters with running car and soft catch take-up
2 x damping and retraction systems (Comfort Stop and Perfect Close)
2 x end stops with activators
1 x set of hinge safety
1 x set of centering devices.
