Weidmüller A4C 2.5 BL

Price in EUR including VAT
Ratings
Delivered between Thu, 17.7. and Fri, 25.7.
More than 10 pieces in stock at supplier
free shipping

Product details

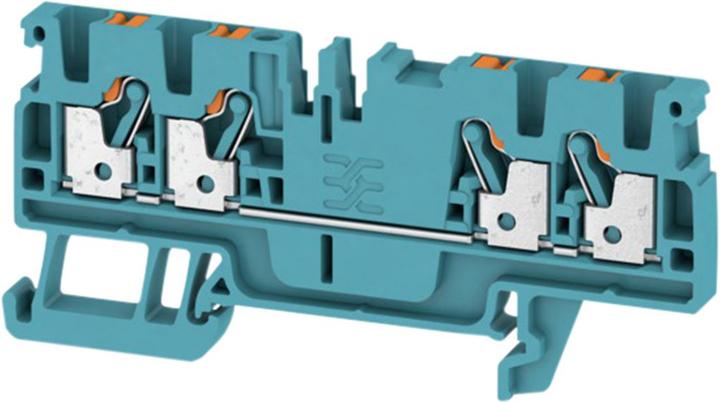

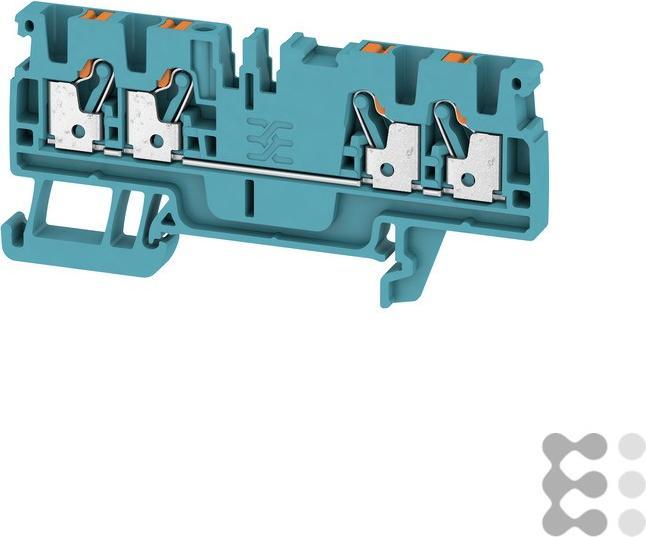

Weidmüller Feed-Through Terminal A4C 2.5 BL

Manufacturer: Weidmüller
Designation: Feed-Through Terminal 0.14-2.5 mm², blue
Type: A4C 2.5 BL

Connectable conductor cross-section fine-stranded without ferrule: 0.5..4 mm²
Connectable conductor cross-section fine-stranded with ferrule: 0.5..4 mm²
Connectable conductor cross-section solid: 0.5..2.5 mm²
Connectable conductor cross-section multi-stranded: 0.5..4 mm²

Rated current In: 24 A
Rated voltage: 800 V
Type of electrical connection 1: Plug connection
Type of electrical connection 2: Plug connection

Number of levels: 1
Number of connection points per level: 4
Suitable for conductor material: Copper
Mounting type: TH35 DIN Rail
Material of insulating body: Thermoplastic

Operating temperature: -60..130 °C
Flammability class of insulating material according to UL 94: V0
Width: 5.1 mm
Height: 77.5 mm
Depth: 36.5 mm
Explosion-proof version "Ex e": yes
End plate required: yes
Color: blue
Internally bridged levels: no

Weidmüller Feed-Through Terminal A4C 2.5 BL: additional details
Rail-mounted terminal for connecting or joining conductors with permanently secure contact. Hardened steel withstands mechanical forces, tin-plated copper ensures optimal conductivity.
EAN: 4050118328042.

Key specifications

Item number
9955421

General information

Manufacturer
Weidmüller
Category
Cable joints
Manufacturer no.
1521700000
Release date
22.10.2018
External links
Manufacturer's site (de)

Colour

Exact colour description
Blue
Colour
Blue

Material

Material
Wemid
Material group
Plastic

Cable connection Properties

Cable connection type
Plug-in terminals
Suitable for cable cross-section
5 mm²
Plug type
Angled on one side

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Feed-through terminal 0.14-2.5 qmm, blue
Items per sales unit
100 x

Product dimensions

Length
77 mm
Width
5.10 mm
Height
77.50 mm
