The compact bottle jack is a universal and flexible tool that combines high lifting power with a stable design. The pump lever can be easily removed, allowing the jack to take up less space during storage. It offers a variety of applications and can be used anywhere loads need to be lifted or lowered. Thanks to its handy size, low weight, and simple operation, the jack is also ideally suited for mobile use, making it the perfect helper for work on cars, trailers, vans, or minibuses.

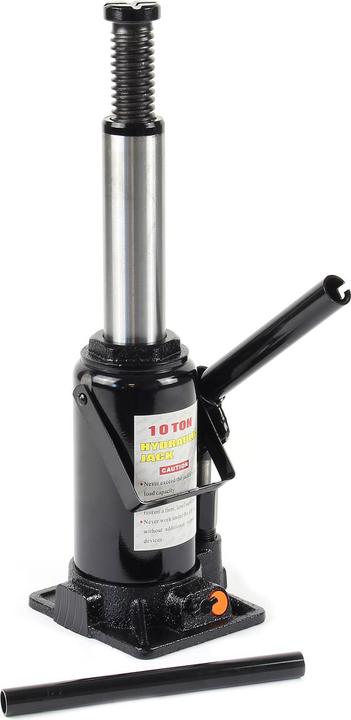

The 36 mm load plate and the powerful hydraulic unit ensure safe lifting of loads up to 10,000 kg. A smooth pump lever allows for a lifting height of 125 mm, and by unscrewing the load plate, the lifting height can be adjusted by an additional 60 mm, enabling the jack to reach a maximum lifting height of 185 mm. The ribbed support surface prevents the load from slipping, while the generous base plate ensures a stable stand for the jack.

Additionally, the jack features a practical slow-down function that ensures a lowering speed of no more than 0.15 m/s. Loads are lowered gently and evenly.

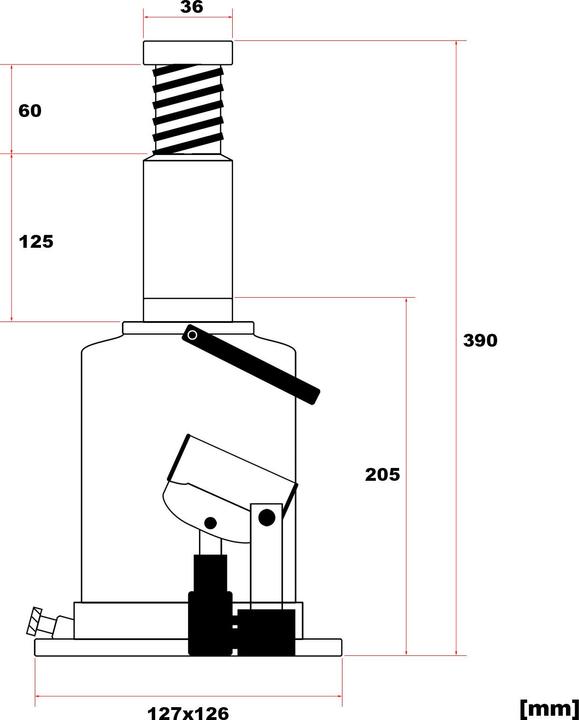

Technical specifications:

Max. load capacity (kg): 10,000
Min. height (mm): 205
Max. height (mm): 390
Piston stroke height (mm): 125
Adjustment height (mm): 60
Plate diameter (mm): 36
Pump piston diameter (mm): 12
Piston diameter (mm): 40
Base dimensions (mm): 127 x 126
Weight (kg): 6.2.
