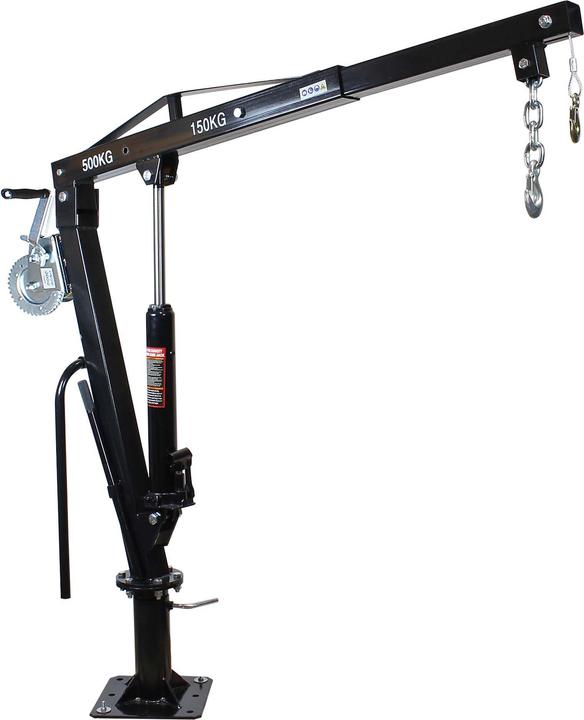

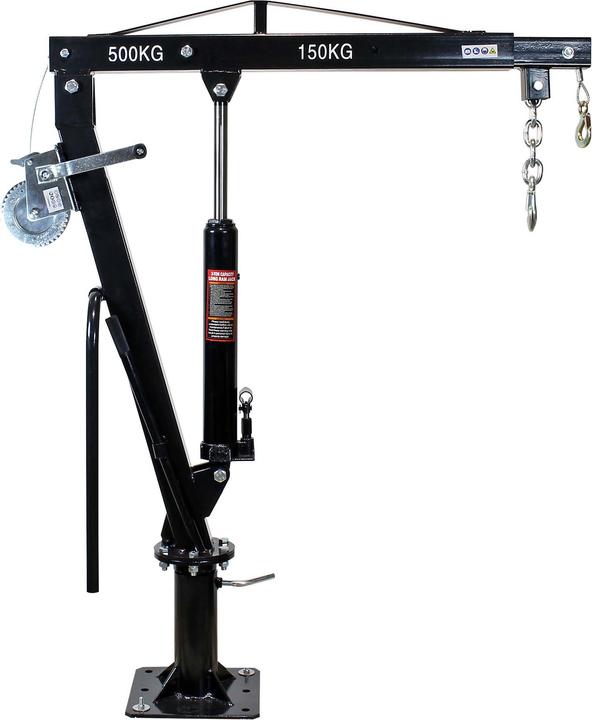

With the Wiltec pickup crane, loading and unloading tasks can be accomplished in no time. With a maximum load capacity of 500 kg, it is a practical helper for lifting jobs. To ensure optimal mobility, the crane is equipped with a 360° rotating slewing ring with ball bearings and a screw lock. This allows not only for lifting loads but also for swiveling the crane while loaded.

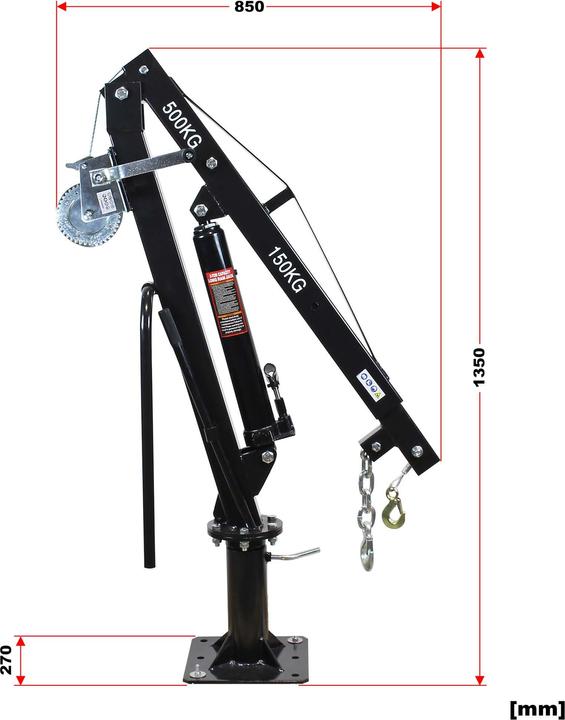

The crane's base features pre-drilled holes for securing it to the ground, providing a stable hold. By anchoring it to the floor, the crane cannot tip over; it can, for example, be mounted on the bed of a pickup truck. In this setup, the winch not only facilitates lifting loads but also allows for picking up loads directly from the ground. When loaded with 500 kg, the crane can lift the load to a height of 260 to 1560 mm in its extended position, with a reach of 1056 mm. With a load of 250 kg, it can reach a height of 0 to 1770 mm and a reach of 1430 mm.

Height at 500 kg: 260–1560 mm
Height at 125/250 kg: 0–1770 mm

Reach at 500 kg: 1056 mm
Reach at 125/250 kg: 1430 mm.
