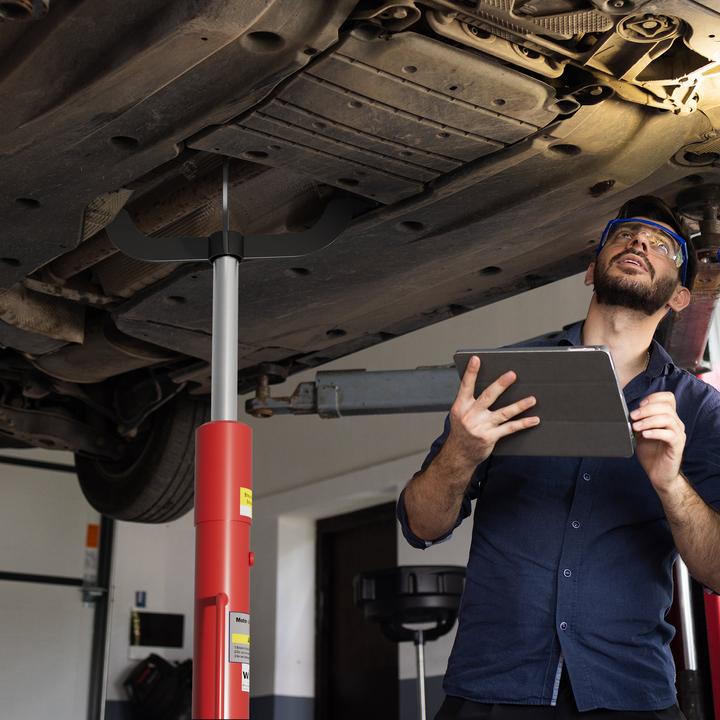

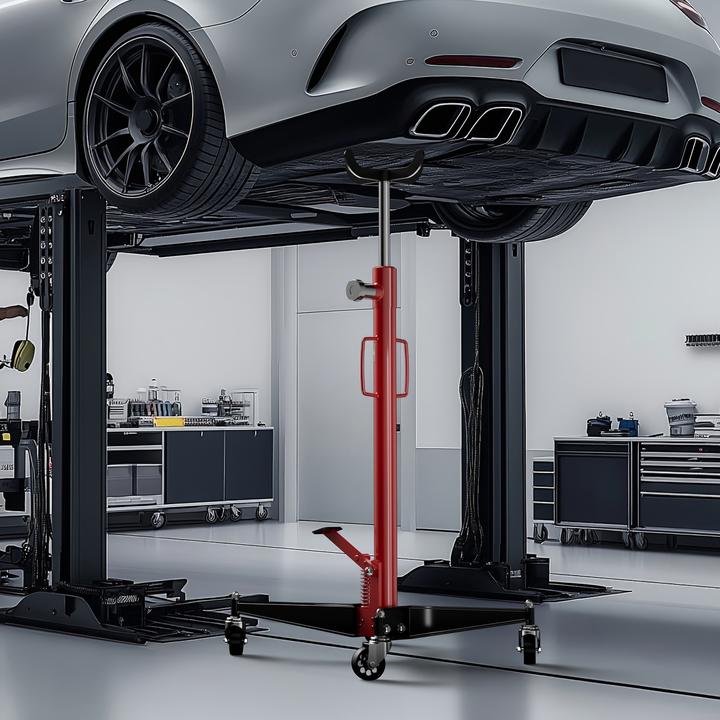

This transmission jack is ideal for use in workshops and garages. It significantly facilitates assembly work on transmissions, tanks, and chassis, as well as the replacement of bearings on a lift.

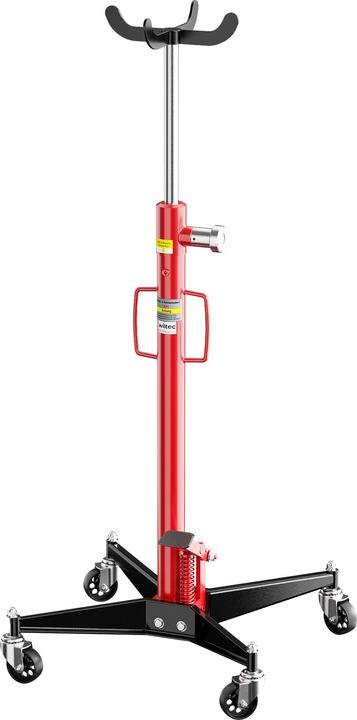

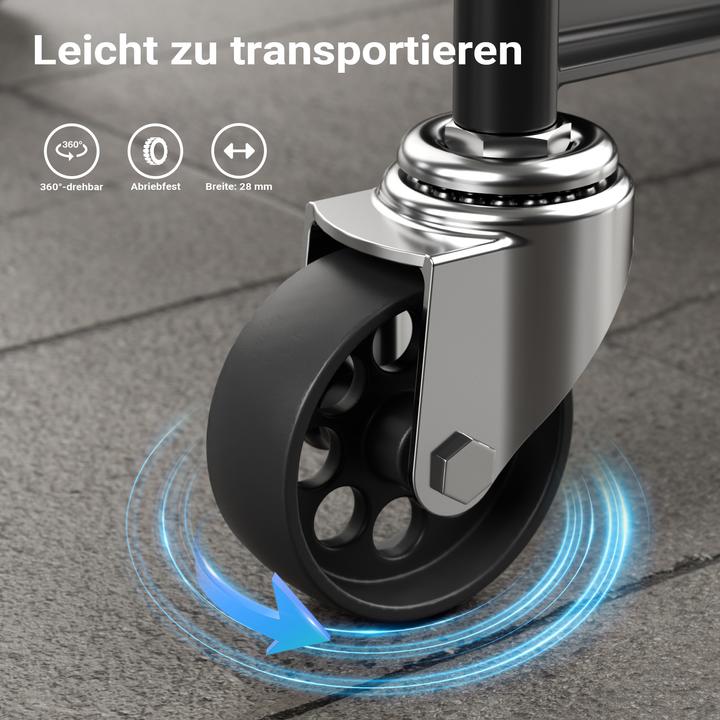

Thanks to its compact design and four smooth-rolling wheels, the transmission jack can be easily rolled under the vehicle and raised to the desired height using the easy-to-operate foot pedal.

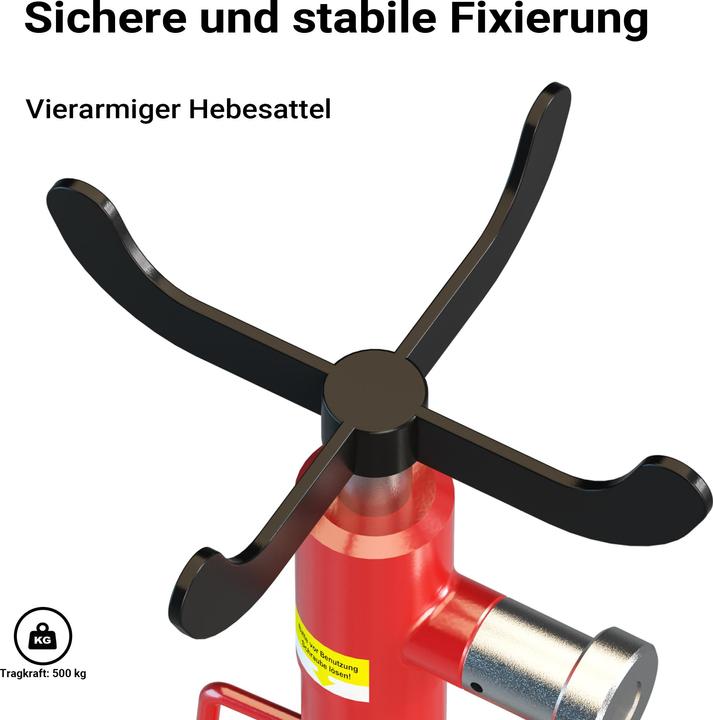

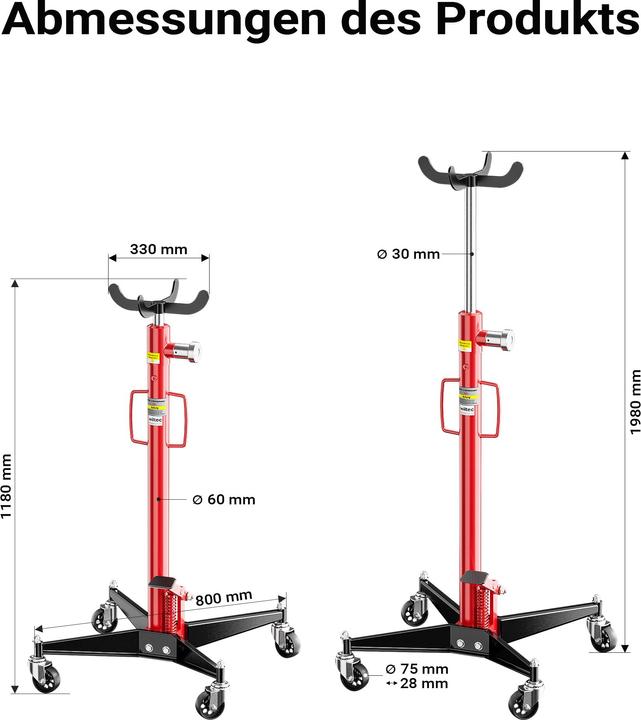

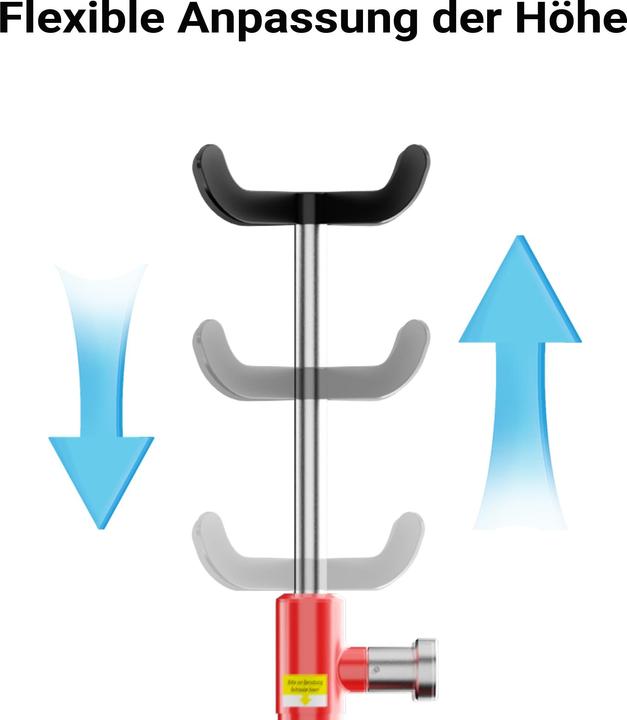

The piston has a diameter of 30 mm and is additionally equipped with a 4-arm receiving claw. The lifting height can be continuously locked at any height from 110 to 195 cm, allowing it to lift loads of up to 500 kg effortlessly.

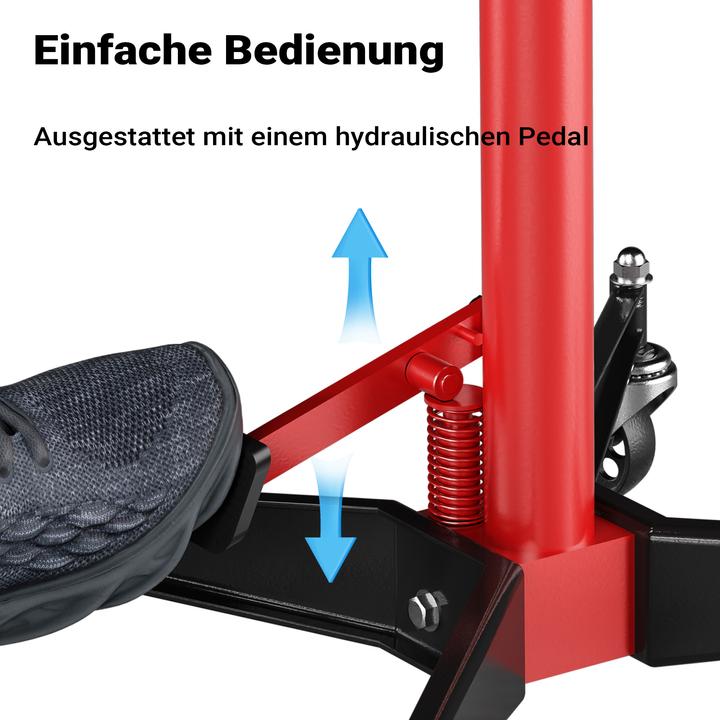

Lowering speed can be finely adjusted. The distance between the holding arms is 325 mm. Lifting is done via the foot pedal, and lowering is controlled by a handwheel. Height ranges from 110 cm to a maximum of 195 cm. Model: Transmission Jack 500/195HM.
