Best Schneider products in the Drive technology accessories category
On this page you'll find a ranking of the best Schneider products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

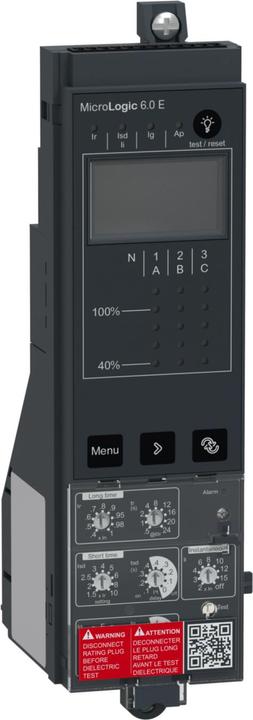

1. Schneider C6EFM
This new MicroLogic release unit belongs to the new generation of the ComPacT NS630bN to NS3200 series. The new generation of ComPacT NS offers the same performance and features a transparent front cover for visibility of accessories, as well as an ergonomic toggle switch and optional LED trip status. The MicroLogic trigger has a new design and color (dark gray). It is compatible with manually operated ComPacT NS circuit breakers in fixed installation. This control unit has basic protection functions and is designed to protect circuits and loads. MicroLogic 6.0E is an electronic control unit that provides adjustable long-time overload protection (ANSI Code 49). It also offers adjustable short-time and instantaneous protection against short circuits (ANSI Codes 51 and 50). MicroLogic 6.0E includes earth fault protection (ANSI Code 51N) for the return of residual or source earth. The performance of the control unit is determined by an additional long-time performance plug, which must be ordered separately via the product selector. The MicroLogic E type indicates overloads with an alarm LED and can display the trip cause through four additional LEDs. MicroLogic E is equipped with a digital LCD display that shows active energy with an accuracy of 2%. The new generation ComPacT NS is part of Schneider Electric's EcoStruxure Power architecture. The new generation ComPacT NS is more sustainable with eco-friendly packaging and partnerships.
2. Schneider VW3A7731

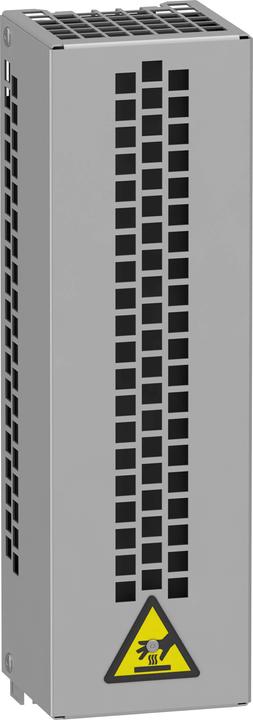

Schneider Electric Brake Resistor VW3A7731
Manufacturer: Schneider Electric
Description: Brake resistor 16 kW, IP20
Type: VW3A7731
Accessory/Spare part type: Brake resistor
Accessory: yes
Spare part: no
Additional details: Brake resistor for inverters ATV930U15M3-U22M3, ATV930U55N4-U75N4, ATV950U55N4-U75N4, ATV950U55N4E-U75N4E. Reference values for a light braking cycle. Power VA 0.16 kW, protection class IP20, resistance 60 Ohm at 20 °C. Supply voltage 200-240 V or 380-480 V 50/60 Hz.
Load factor for resistors: The value of the average power that can be dissipated from the resistor into the housing at 50 °C. Determined for a load factor during braking, which corresponds to the majority of common applications.
Standard overload: 0.8 s braking at a braking torque of 1.2 Tn for a cycle of 40 s.
High overload: 0.8 s braking at a braking torque of 1.5 Tn for a cycle of 40 s.
Required number per inverter: 1.
Brake resistors allow Altivar process frequency inverters to operate during braking until standstill by dissipating the braking energy. They enable a maximum transient braking torque. Brake resistors are designed for a defined cycle. Depending on your own applications and cycles, you can use these resistors or define a new value.
Brake resistors for light braking cycles for machines with cycles and mass inertia. The braking power is limited to 1.5 Tn for 0.8 s every 40 s. Brake resistors for medium braking cycles for machines with high mass inertia and conveyor systems. The braking power is limited to 1.35 Tn for 4 s every 40 s.
EAN: 3606480802256.
3. Schneider VW3L1T000R30
Schneider Electric Connection Cable VW3L1T000R30
Manufacturer: Schneider Electric
Description: Connection Cable
Type: VW3L1T000R30
Accessory/Spare Part Type: Other
Accessory: Yes
Spare Part: No
The Schneider Electric connection cable VW3L1T000R30 is an accessory for the integrated drives Lexium ILA, ILE, and ILS. It is a pre-assembled cable with a connector for the RS485 serial interface on the side of the integrated drive and an RJ45 connector on the other side. The cable length is 3 meters.

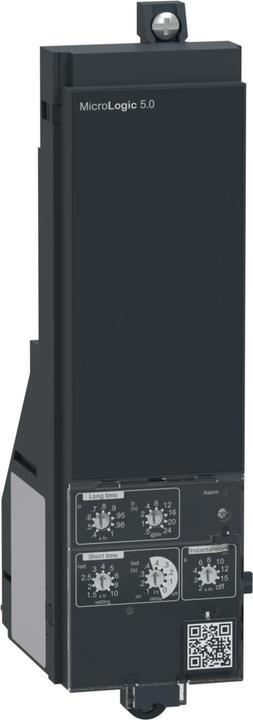

4. Schneider C50FM
This new MicroLogic release unit belongs to the new generation of the ComPacT NS630bN to NS3200 series. The new generation of ComPacT NS offers the same performance and features a new transparent front cover for accessory visibility and a new ergonomic toggle lever and optional LED trigger status. The MicroLogic trigger has a new design and a new colour (dark grey). It is compatible with ComPacT NS manual circuit-breakers in fixed installation. This control unit has basic protection functions and is designed to protect circuits and loads. MicroLogic 5.0 is an electronic control unit that offers adjustable long-term protection against overload (ANSI Code 49). It also provides adjustable short-time and instantaneous short-circuit protection (ANSI Code 51 and 50). The power of the control unit is determined by an additional long-term power plug, which must be ordered separately via the product selector. ComPacT NS new generation is part of the Schneider Electric EcoStruxure Power architecture. ComPacT NS new generation is more sustainable with environmentally friendly packaging and partnerships.

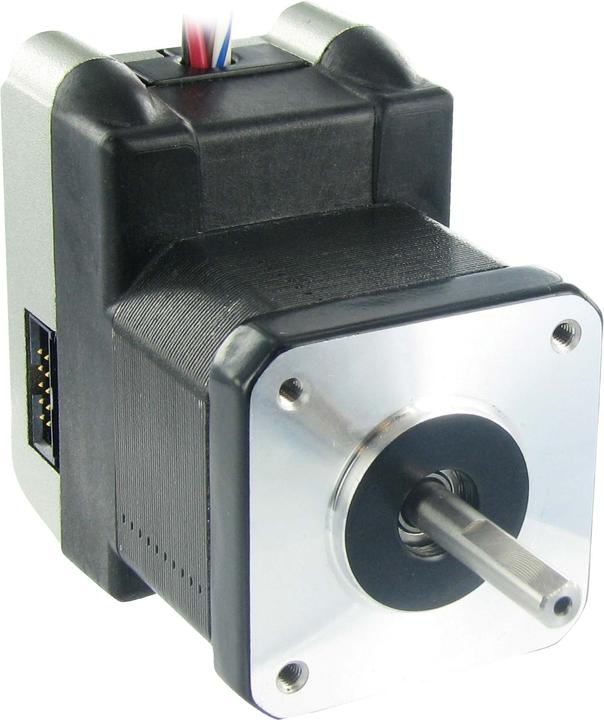

5. Schneider ILP2R421MB1A
Schneider Electric Integrated drive ILP2R421MB1A Manufacturer :Schneider Electric Designation :Integrated drive 24-48VDC RS485 Type :ILP2R421MB1A Version :Stepper motor Rated voltage :48 V Rated current :4.7 A Rated frequency :50..60 Hz Voltage type :DC Number of phases :3 Enclosure material :other Protection class (IP) :other Number of poles :2 Frame size :other Motor energy efficiency class :other IEC insulation class :other Duty cycle :other Rated torque :0.5 Nm Bearing :other With condensation protection :no With positive temperature coefficient (PTC) resistor :no With resistance thermometer detector (RTD) :no Intrinsic safety (IS) :none Suitable for frequency control :no Operating temperature :0..40 °C Overload capability :no Cooling method :other Shaft end design :other Vacuum pressure impregnation (VPI) :other Schneider Electric Integrated drive ILP2R421MB1A: more details Integrated drive ILP with 2-phase stepper motor, 24-48 V DC, RS485, 0.19 Nm , EAN: 3606480157004.

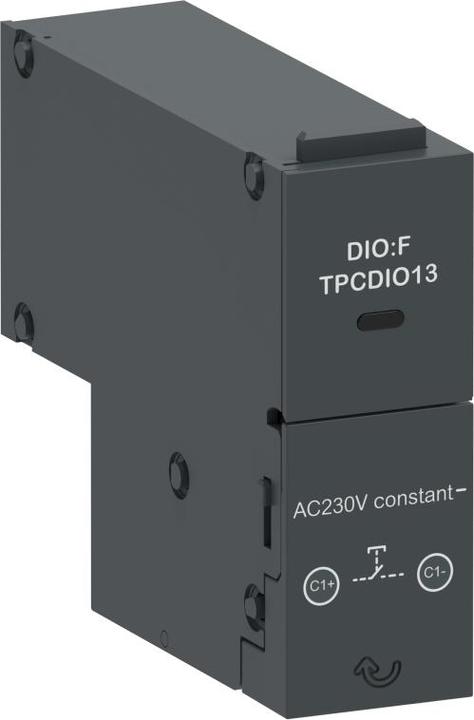

6. Schneider TPCDIO13
7. Schneider LUALB1

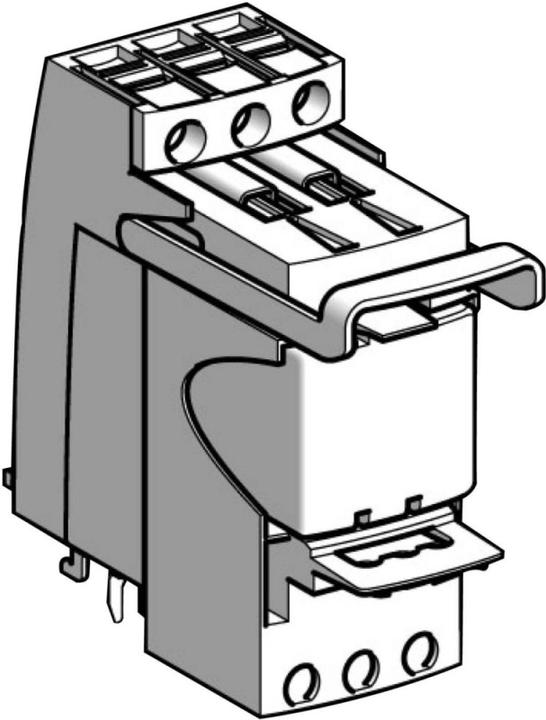

Schneider Electric Limiter LUALB1
Manufacturer: Schneider Electric
Designation: Limiter
Type: LUALB1
Max. Apparent Power: 35000 VA
Mounting Type: Direct Mounting
Conditional Rated Short-Circuit Current Iq: 130 kA
Rated Continuous Current Iu: 32 A
Short-Circuit Current Limiter: yes
The Schneider Electric Limiter LUALB1 offers additional details. The TeSys U motor starter is the first intelligent motor starter that combines control, switching, and protection in a single device. Compact, simple, and modular, it adapts to all applications.
8. Schneider LV432600T

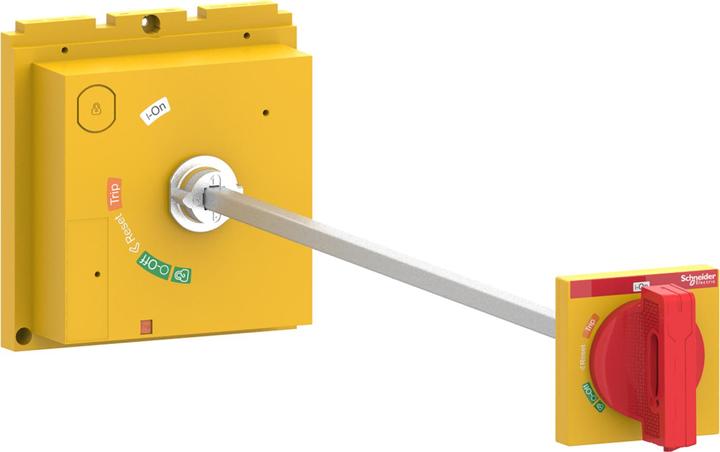

Schneider Electric Rotary Drive with LV432600T
Manufacturer: Schneider Electric
Description: Rotary drive with door coupling for ComP
Type: LV432600T
With shaft extension: yes
With door locking: no
Lockable: yes
With red/yellow handle: yes
This is a rotary drive with door coupling for the ComPacT NSX 400/630 and PowerPact Multistandard L assemblies. It is suitable for galvanic isolation and is used for standard applications. Access to the settings of the tripping device and the trip button remains available. The rotary drive features a red handle on the yellow front and indicates the three device positions O (OFF), I (ON), and tripped. This extended version allows for the operation of devices mounted at the back of the switchgear from the front of the switchgear. The distance between the back of the circuit breaker and the switchgear door ranges from 185 mm to 600 mm. The protection ratings are IP55 and IK08. This rotary drive can be locked in the OFF position with 1 to 3 padlocks (shackle diameter 5 to 8 mm). Optionally, it is possible to install a Ronis or Profalux key switch on the underside of the handle to achieve the same function as a padlock.

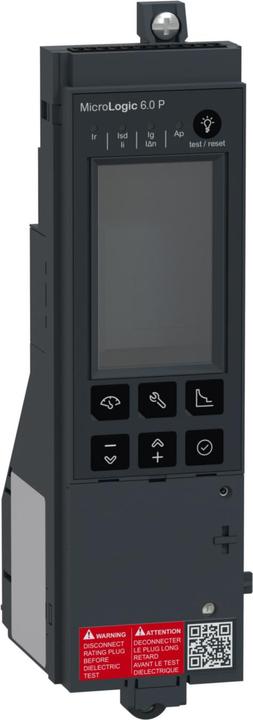

9. Schneider C6PWM
This new MicroLogic release unit belongs to the new generation of the ComPacT NS630bN to NS1600 series. The new generation of ComPacT NS offers the same performance and features a new transparent front cover for accessory visibility and a new ergonomic toggle lever and optional LED trigger status. The MicroLogic trigger has a new design and a new colour (dark grey). It is compatible with manually operated ComPacT NS circuit-breakers with slide-in technology. This control unit has basic protection functions and is designed to protect circuits and loads. MicroLogic 6.0P is an electronic control unit that offers adjustable long-term protection against overload (ANSI Code 49). It also provides adjustable short-time and instantaneous short-circuit protection (ANSI Code 51 and 50). MicroLogic 6.0P has earth fault protection (ANSI Code 51N) for the return of residual or source earth. The power of the control unit is determined by an additional long-term power plug, which must be ordered separately via the product selector. The MicroLogic P type indicates overloads with an alarm LED and can indicate the cause of tripping via 4 additional LEDs. MicroLogic P is equipped with a digital LCD display that shows all measurements and events. The MicroLogic P type calculates in real time all electrical values (V, A, W, VAR, VA, Wh, VARh, VAh, Hz), power factors and cos phi factors. ComPacT NS new generation is part of the Schneider Electric EcoStruxure Power architecture. ComPacT NS new generation is more sustainable with environmentally friendly packaging and partnerships.

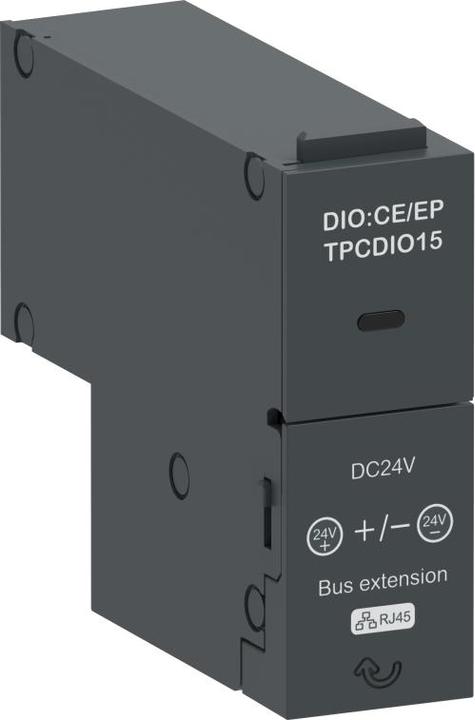

10. Schneider TPCDIO15
