Best Hensel products in the Electrical enclosures category
On this page you'll find a ranking of the best Hensel products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

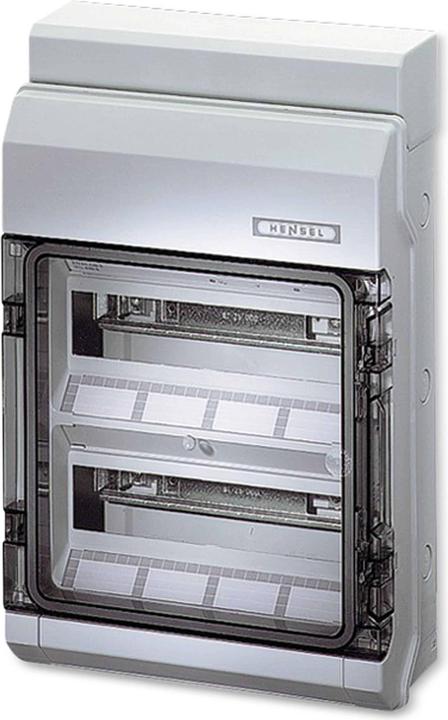

1. Hensel KV 90Automatic housing 24 pitch units
24 pitch units: 2 x 12 x 18 mm, 2-row, per PE/N number x cross-section 6 x 25 mm², 24 x 4 mm² Cu, FIXCONNECT plug-in terminal technology, N separable, up to 4 different potentials. For installation of devices with snap-on mounting on DIN mounting rail, top hat profile 35 mm, with transparent door. With cable entry cover. With cover strip for the device cut-out. With integrated, elastic sealing membranes for cable entry.

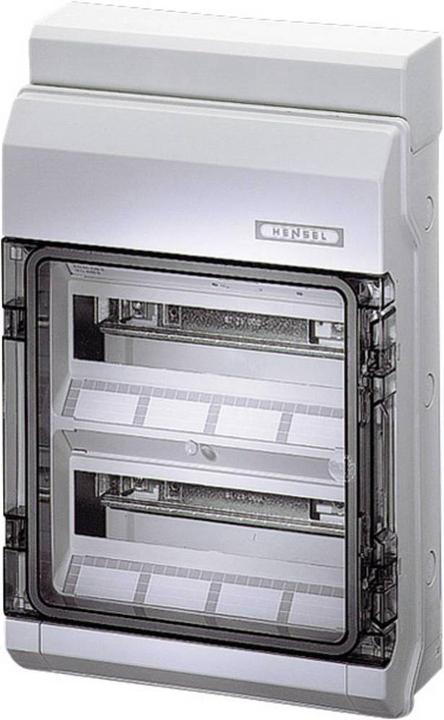

2. Hensel KV2524
Hensel KV 2524 KV automatic enclosure. This small distribution board is made of high-quality thermoplastic (polystyrene) and is suitable for surface-mounted applications in buildings or protected outdoor installations. It features 24 partition units for the installation of devices with snap-on fastening on a DIN mounting rail. Cable entry is facilitated by integrated elastic sealing membranes. The enclosure includes a transparent door, a cable entry panel, an integrated accessory compartment, and a cover strip for the device cut-out. It has a protection class of IP 54.

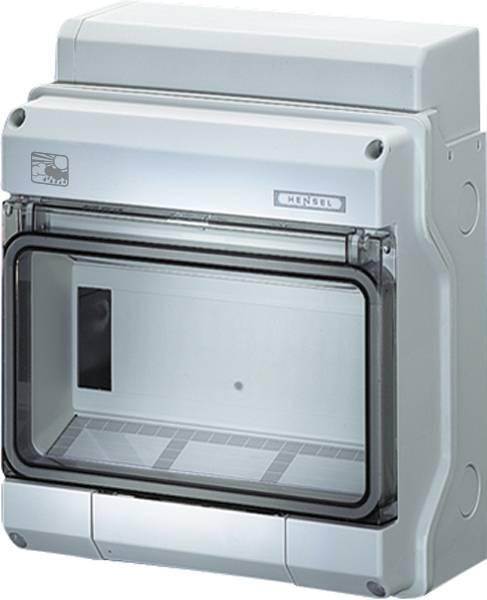

3. Hensel HEN KV PC 9109 KV automatic enclosure KV PC 9109 9 graduated enclosure
The Hensel KV PC 9109 KV distribution box is a robust small distributor made from high-quality thermoplastic (polycarbonate). This enclosure is specifically designed for surface-mounted applications and is suitable for both outdoor and indoor use. With a capacity of 9 modular units, it allows for easy installation of devices on a DIN rail using snap fastening. Cable entry is facilitated through metric pre-formed knockouts, simplifying the installation process. The enclosure features a transparent cover that enables easy visual inspection of the installed devices. Additionally, it includes a cable entry cover and a knock-out for device cutouts to accommodate specific requirements. With an IP 65 protection rating, the enclosure offers high protection against dust and water, making it an ideal choice for various applications.
- Made from high-quality thermoplastic (polycarbonate)
- Suitable for unprotected installations outdoors and indoors
- Easy mounting on DIN rail with snap fastening
- IP 65 protection rating for high protection against dust and water.
Electrical enclosures
EUR50,05
Hensel HEN KV PC 9109 KV automatic enclosure KV PC 9109 9 graduated enclosure

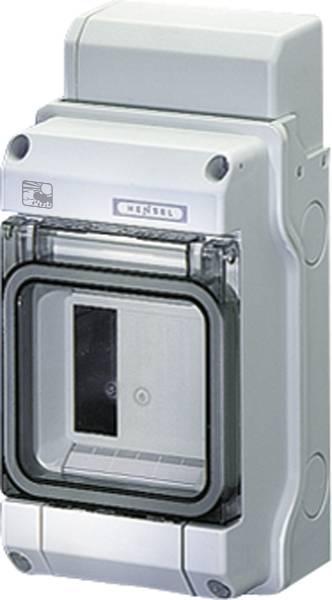

4. Hensel HEN KV PC 9103 KV automatic enclosure KV PC 9103 3 graduation units (3x18 mm), IP
The Hensel KV PC 9103 KV distribution box is a high-quality small distributor made from robust thermoplastic (polycarbonate). This enclosure is specifically designed for surface-mounted applications and is suitable for both outdoor and indoor use. With three division units that allow for easy installation of devices with snap-on mounting on a DIN rail, it offers a flexible solution for various electrical installations. Cable entry is facilitated through metric pre-formed knockouts, simplifying the installation process. The enclosure features a transparent cover, a cable entry plate, and a knock-out device cutout to optimize access to the electrical components. With an IP 65 protection rating, it ensures high protection against dust and water, making it an ideal choice for demanding environments.
- Made from high-quality thermoplastic (polycarbonate) for durability
- Suitable for unprotected installations outdoors and indoors
- Easy mounting on DIN rail with snap-on fastening
- IP 65 protection rating for optimal dust and water protection.
Electrical enclosures
EUR35,41
Hensel HEN KV PC 9103 KV automatic enclosure KV PC 9103 3 graduation units (3x18 mm), IP

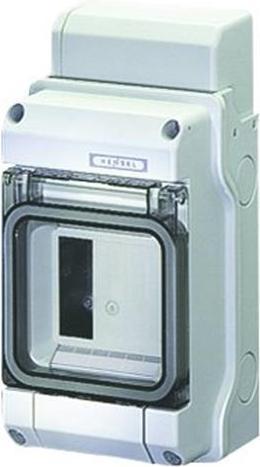

5. Hensel KV vending machine housing
Hensel KV-Automatic Enclosure KV 1503
Manufacturer: Hensel
Description: KV-Automatic Enclosure 3TE 3x18mm IP54
Type: KV 1503
Mounting Type: Surface-mounted
Number of Rows: 1
Width in Division Units: 3
Type of Cover: Door
Cover Design: Closed
Transparent Cover/Door: Yes
With Lock: No
Material of the Enclosure: Plastic
Installation Depth: 72 mm
Internal Depth: 79 mm
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: Gray
RAL Number: 7035
Protection Class (IP): IP54
Height: 197 mm
Width: 102 mm
Depth: 92 mm
Hensel KV-Automatic Enclosure KV 1503: Additional Details
Small distribution board made of high-quality thermoplastic (polystyrene). Suitable for surface-mounted applications in buildings or protected outdoor installations. Automatic enclosure with 3 division units for the installation of devices with snap fastening on DIN mounting rail. Cable entry via integrated elastic sealing membranes. Features a transparent flap, cable entry cover, and break-out device cutout. Protection class IP 54.

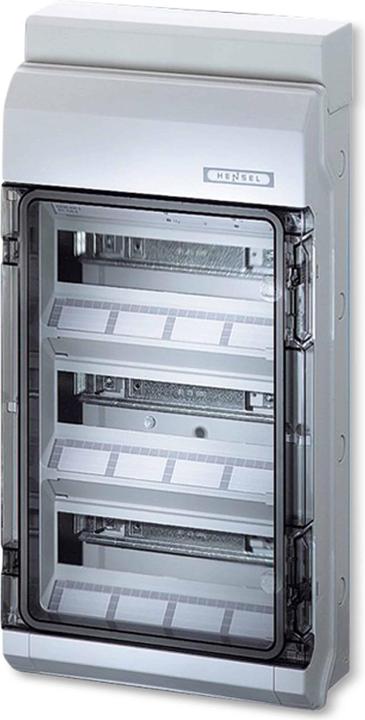

6. Hensel KV 90Automatic housing 36 graduation units
36 pitch units: 3 x 12 x 18 mm, 3-row, per PE/N number x cross section 6 x 25 mm², 24 x 4 mm² Cu, FIXCONNECT plug-in terminal technology, N separable, up to 4 different potentials. For installation of devices with snap-on mounting on DIN mounting rail, top hat profile 35 mm, with transparent door. With cable entry cover. With cover strip for the device cut-out. With integrated, elastic sealing membranes for cable entry.

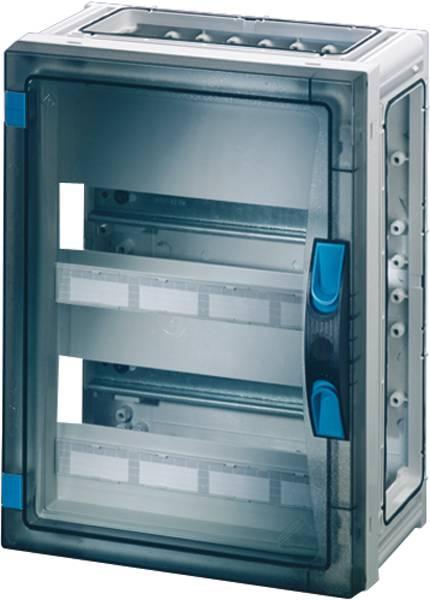

7. Hensel HEN FP 1219 ENYSTAR vending machine housing FP 1219, 24 TE
Hensel Enystar Circuit Breaker Enclosure FP 1219
Manufacturer: Hensel
Designation: Enystar Circuit Breaker Enclosure
Division Units: 24
Type: FP 1219
Mounting Type: Surface-mounted
Number of Rows: 2
Width in Division Units: 12
Type of Cover: Door
Cover Design: Closed
Transparent Cover/Door: Yes
Material of Enclosure: Plastic
Height: 366 mm
Width: 276 mm
Depth: 186 mm
Installation Depth: 93 mm
Inner Depth: 136 mm
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: Gray
RAL Number: 7035
Protection Class (IP): IP65
With Lock: No
Further Details:
Enclosure with door for the construction of installation distribution boards up to 250 A for operation by laypersons according to IEC 61439-3. Open enclosure walls for combination or as a standalone enclosure with closure plates. Made of high-quality polycarbonate, protection insulated. Quick enclosure connection via connectors and integrated seals. Large wall penetrations for the electrical connection of enclosures to each other. Cable entry through flanges. Wall mounting directly on the enclosure, via external tabs or with mounting rails. Circuit breaker enclosure with 24 division units for the installation of modular devices according to DIN 43880. With PE and N terminals for copper conductors. N separable for different potentials. With cover strips to close unused device cutouts and labeling strips for circuit identification. Transparent door and sealable door lock with manual operation.

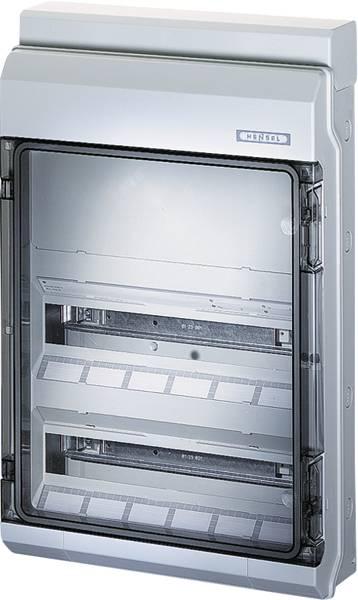

8. Hensel Vending machine housing
Hensel Distribution Enclosure 2-Row KV 9350
Manufacturer: Hensel
Description: 2-Row Distribution Enclosure
Type: KV 9350
Mounting Type: Surface-mounted
Number of Rows: 2
Width in Division Units: 18
Type of Cover: Door
Cover Design: Closed
Transparent Cover/Door: Yes
With Lock: No
Material of the Enclosure: Plastic
Installation Depth: 93 mm
Internal Depth: 114 mm
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: Gray
RAL Number: 7035
Protection Class (IP): IP65
Height: 630 mm
Width: 403 mm
Depth: 129 mm
Hensel Distribution Enclosure 2-Row KV 9350: Additional Details
Small distribution board made of high-quality thermoplastic with space for non-operational devices. Equipped with a DIN mounting rail for devices and terminal blocks. Suitable for surface-mounted applications in buildings or for protected outdoor installations. Distribution enclosure with 36 division units, without PE and N terminal. Designed for the installation of devices with snap-on mounting on a DIN rail. Cable entry via integrated elastic sealing membranes. Features a transparent door and cable entry cover, integrated accessory compartment, and cover strip for the device cutout. Protection class IP 65.

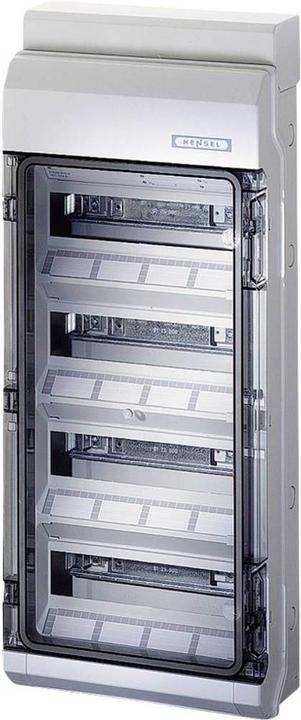

9. Hensel KV 90Automatic housing 48 graduation units
48 pitch units: 4 x 12 x 18 mm, 4-row, per PE/N number x cross section 6 x 25 mm², 24 x 4 mm² Cu, Fixconnect plug-in terminal technology, N separable, up to 4 different potentials. For installation of devices with snap-on mounting on DIN mounting rail, top hat profile 35 mm, with transparent door. With cable entry cover. With cover strip for the device cut-out. With integrated, elastic sealing membranes for cable entry.
10. Hensel KV 90 automatic housing
Hensel KV 90 Circuit Breaker Enclosure KV 9224 M
Manufacturer: Hensel
Designation: KV 90 Circuit Breaker Enclosure 24TE IP65 Metric Pre-formed
Type: KV 9224 M
Mounting Type: Surface-mounted
Number of Rows: 2
Width in Division Units: 12
Type of Cover: Door
Cover Design: Closed
Transparent Cover/Door: Yes
With Lock: No
Material of the Enclosure: Plastic
Installation Depth: 93 mm
Internal Depth: 114 mm
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: Gray
RAL Number: 7035
Protection Class (IP): IP65
Height: 458 mm
Width: 295 mm
Depth: 129 mm
Hensel KV 90 Circuit Breaker Enclosure KV 9224 M: Additional Details
Small distribution board made of high-quality thermoplastic (polystyrene). Suitable for surface-mounted applications in buildings or protected outdoor installations. Circuit breaker enclosure with 24 division units for the installation of devices with snap-on mounting on DIN rail. Cable entry is provided through metric pre-formed entries. Features a transparent door and cable entry cover, integrated accessory compartment, and cover strip for the device cutout. Protection class IP 65.
