Best selling Energy monitors from Janitza
On this page you’ll find a ranking of the best Energy monitors from Janitza. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Janitza Power analyzer
Energy measuring device UMG 96RM-P with Profibus, UL. Supply voltage 90V to 277V, 50/60Hz, 90V to 250V DC, 300V CATIII. Voltage measurement, measurement category 300V CATIII, 3 voltage measurement inputs L-N: 20V-300V, L-L: 34V-520V, 45Hz-65Hz, 31 current measurement inputs 0 to 5A, response current 5mA. Measurement in three-phase 4-wire systems with grounded neutral up to a maximum of 277V, 480V. Measurement in ungrounded three-phase 3-wire systems up to a maximum of 480V. Measurement in single-phase 3-wire systems up to a maximum of 220V-440V. Measurement in single-phase 2-wire systems up to a maximum of 220V. 24 digital outputs, 4 digital inputs, clock and data storage 5MB, 256 MB Flash. Interfaces: RS485, USB, Sub 9 pin. Protocol: Profibus. Included accessories: installation manual, safety instructions, and software GridVis quick start, mounting kit, USB connection cable, RS485 termination resistor 120 Ohm. Programming software GridVis Basic.

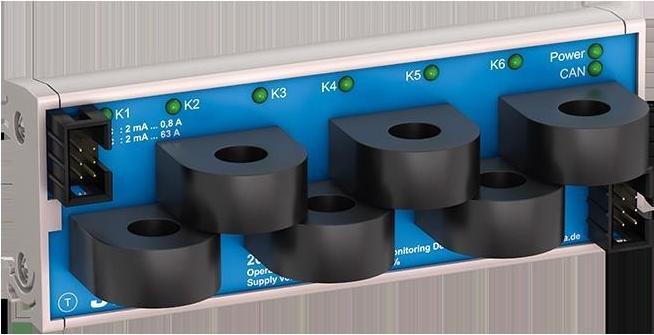

2. Janitza 1401626
The Janitza energy measuring device 20CM-CT6 is a highly advanced measuring module designed to expand an existing measurement system in conjunction with the head module UMG 20CM. It enables precise capture and monitoring of operating and differential currents through up to 6 current measuring inputs per module. With the ability to modularly expand to up to 96 current measuring inputs, this device offers a flexible solution for various applications in single-phase and multi-phase networks. The installation is user-friendly due to the automatic addressing of participants and the easy mounting on DIN rails. The device is suitable for use in different network forms and ensures high measurement accuracy, along with an integrated monitoring function supported by an LED display. With a generous memory of 956 kB, it can store data for up to 85 days, allowing for comprehensive analysis of current data.
- Modularly expandable to up to 96 current measuring inputs (16x6)
- Automatic range switching between operating and differential current
- Measurement accuracy of 0.5% for operating and differential current
- Integrated memory for 85 days at 10-minute averages
- Communication via CANopen with the head device UMG 20CM.
3. Janitza B24 312-10J Measuring transformer meter, 3-phase, 1/5 A,Modbu B2431210J
B24 312-10J for top-hat rail mounting 4TE tariffs with integrated RS485 interface Modbus RTU. It features 2 inputs for controlling the tariffs or for counting external pulses and 2 outputs that can be configured as pulse output for active or reactive energy or as alarm output. Pulse length ranges from 10 to 990 ms. Measuring accuracy for active energy is Class 1, while reactive energy is classified without MID. Connection cross-section measurement is 25 mm², with a transformer ratio of 15 A. The voltage range is 3x 220-240 AC, with a tolerance of -15% to +20%. Frequency is 50-60 Hz, and the temperature range is -40 to 70 degrees Celsius. There is no reset of the energy sensors. The device is calibrated according to MID and approved according to IEC B24 312-10J.
Energy monitors
EUR340,34
Janitza B24 312-10J Measuring transformer meter, 3-phase, 1/5 A,Modbu B2431210J
4. Janitza 5232004
The Janitza UMG96-PA-MID+ is a modularly expandable power analyzer specifically designed as an operating hour counter. This device enables precise monitoring of energy consumption and provides reliable measurement of current in amperes. With a maximum current of 6 amperes, the UMG96-PA-MID+ is suitable for various applications in industrial and commercial environments. The analog display ensures a clear and understandable representation of the measurement values, while the accuracy class B guarantees high precision. The installation of the device is straightforward, making it a practical solution for energy measurement.
- Modularly expandable for flexible applications
- Precise analog display of measurement values
- High accuracy with accuracy class B
- Easy installation for uncomplicated setup.

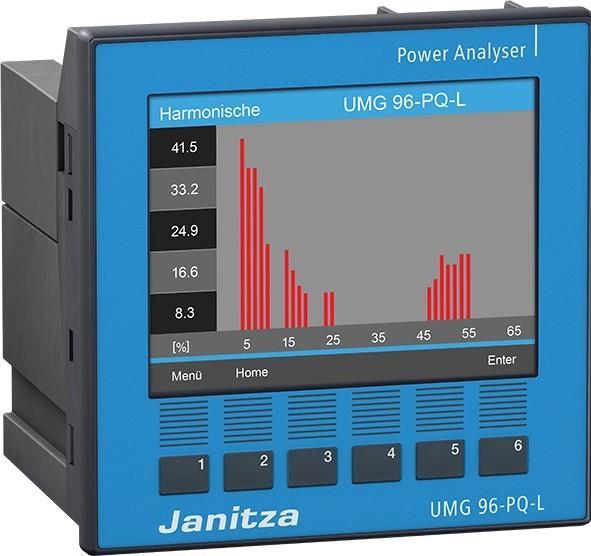

5. Janitza UMG 96-PQ-L, 90-277V
The Janitza UMG 96-PQ-L is a highly advanced multifunction measuring device designed for precise energy measurement in various electrical systems. With a supply voltage range of 90 to 277 V and the capability to measure in both TN and TT networks, this device offers a comprehensive solution for monitoring and analyzing electrical parameters. It is equipped with a 64 MB measurement data memory, allowing for long-term data storage. Its compact design (96 x 96 x 86 mm) and the option for panel mounting make it a flexible choice for different installation environments. The device supports the measurement of harmonics up to the 65th order and provides high accuracy with a class of 0.2S for active energy. Additionally, it features digital inputs and outputs as well as an analog output, facilitating integration into existing systems.
- Measurement of harmonics up to the 65th order
- 64 MB measurement data memory for long-term data storage
- Supports 3-phase 4-wire systems up to 720 V
- Includes programming software GridVis Essentials for easy data analysis
- Digital inputs and outputs for flexible system integration.

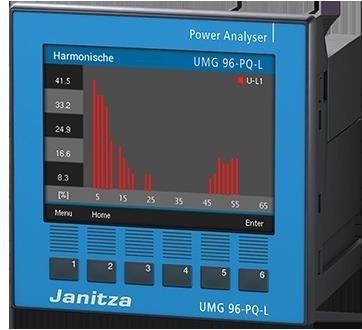

6. Janitza JANI Power Quality Analyser
The JANI Voltage Quality Analyzer from Janitza is a highly advanced energy measuring device designed for precise analysis of voltage quality in various electrical networks. With a compact design, the device is ideal for front panel mounting and offers comprehensive functions for monitoring and analyzing voltage and current parameters. The voltage quality analyzer supports measurements in TN, TT, and IT networks and is capable of capturing harmonics up to the 65th order. The integrated clock and the 64 MB measurement data storage allow for long-term data storage and analysis. The device is suitable for use in demanding environments and meets the installation category 300 V CAT III, ensuring high safety and reliability.
- Measurement of harmonics up to the 65th order
- Adjustable nominal current of 5A / 1A
- Integrated digital inputs and outputs for enhanced functionality
- RS485 interface for Modbus RTU communication
- Compatible with the GridVis Essentials programming software for data analysis.
7. Janitza JANI Transmitter
The JANI transducer from Janitza is a highly advanced voltage converter specifically designed for use with Rogowski current transformers. This device provides a standardized output signal of 0 to 1 A and is suitable for universal applications in measuring alternating currents. With an impressive measurement range of 250 to 4000 A, the transducer allows for precise and reliable measurements in various industrial applications. It is powered by 24 VDC, enabling easy integration into existing systems. The transducer is housed in a compact plastic enclosure that allows for mounting on a DIN rail, making it ideal for use in control cabinets and other electrical installations.
- Standardized output signal of 0 to 1 A
- Measurement range of 250 to 4000 A
- Power supply of 24 VDC
- Compact design for DIN rail mounting.

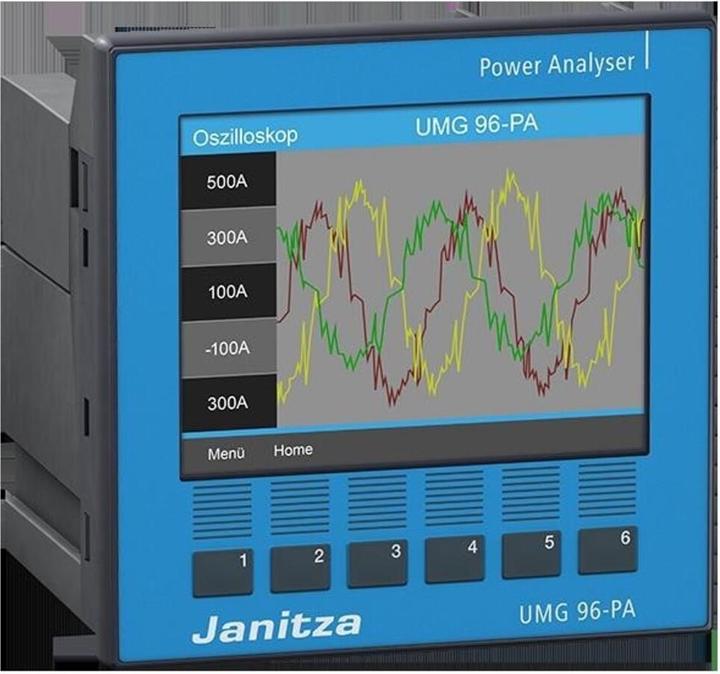

8. Janitza Universal measuring device
The UMG 96-PA universal measuring device from Janitza is a highly advanced energy measuring instrument designed for precise measurements in various electrical systems. It offers a comprehensive analysis of electrical parameters, including voltage, current, active power, and reactive power. With a wide supply voltage range of 90 to 277 V AC and 90 to 250 V DC, it is versatile in its applications. The device is suitable for front mounting and features a graphical display that provides a clear and understandable presentation of the measurement values. The integrated measurement data memory with 8 MB allows for the storage and analysis of measurement data over extended periods. The UMG 96-PA is ideal for applications in industrial and commercial environments where precise monitoring of energy consumption is required.
- Measurement of harmonics up to the 25th harmonic
- Supports Modbus RTU for communication
- IP54 protection class for increased durability
- Three voltage and three current measurement inputs
- Integrated measurement data memory with 8 MB.
9. Janitza 5232002
The multifunction measuring device UMG 96-PA from Janitza is a highly advanced energy measuring instrument designed for precise analysis of electrical networks. It is suitable for both TN and TT networks and offers comprehensive measurement functions, including the capture of harmonics up to the 25th order. The device is intended for installation in control cabinets and has a compact design of 96 x 96 x 86 mm. With a supply voltage of AC 24 V - 90 V or DC 24 V - 90 V, it is versatile in its applications. The digital display allows for clear readability of measurement values, while the integrated data memory with 4 MB ensures long-term data storage. The UMG 96-PA is equipped with various communication interfaces, including RS485 for Modbus RTU, facilitating integration into existing systems.
- Measurement in 3-phase 4-wire systems up to 720 V according to IEC
- Three current measurement inputs with adjustable nominal currents of 5A / 1A
- Digital inputs and outputs for enhanced functionality
- Integrated programming software GridVis Basic for easy data analysis
- Robust construction with installation category 600 V CAT III.
10. Janitza UMG 604-PRO 24 V power quality analyser Power quality analyser UMG 604-PRO
The UMG 604-PRO voltage quality analyzer from Janitza is a highly advanced multifunction measuring device designed for the precise analysis and monitoring of voltage quality parameters in electrical systems. With a supply voltage range of 20 to 50 V AC and 20 to 70 V DC, this device offers broad measurement capabilities, allowing it to capture both alternating and direct currents. The analyzer is equipped with four voltage and four current measurement inputs, enabling comprehensive data collection. The integrated digital display and the ability to log data make it an indispensable tool for professionals who need to monitor and analyze the quality of electrical energy. Additionally, the UMG 604-PRO offers a variety of interfaces, including Ethernet and RS232, facilitating easy integration into existing systems. The included apps and programming software enhance the device's functionality and provide a user-friendly interface for analyzing and visualizing measurement data.
- Measurement category: 300V CATIII for safe applications
- Integrated web server for remote monitoring
- 128MB flash memory for extensive data storage
- Two digital inputs and outputs for enhanced functionality
- Compatible with GridVis software for comprehensive data analysis.
Energy monitors
EUR1165,85
Janitza UMG 604-PRO 24 V power quality analyser Power quality analyser UMG 604-PRO
