Best selling Line lasers from Stabila
On this page you’ll find a ranking of the best Line lasers from Stabila. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Stabila Rotary laser LAR 160
Stabila Rotating Laser 7-piece Set 19241
Manufacturer: Stabila
Description: Rotating Laser 7-piece LAR 160 Set
Type: 19241
The Stabila Rotating Laser 7-piece Set 19241 offers the following details:
Fully automatic, motor-controlled rotating laser with high leveling accuracy of ± 0.1 mm/m and fast self-leveling within 20 seconds. Four laser functions allow for versatile use: horizontal and vertical rotation, plumb function, and right angle (90°) in vertical operation.
With an IP 65 protection class, the device is dustproof and waterproof. The shock-absorbing Stabila soft grip casing protects against impacts. Operation is simple via three buttons: On/Off, Tilt mode, and Manual mode.
The battery drawer allows for easy replacement, even directly on the tripod. The large working range with the set receiver REC 160 RG is up to 600 m in diameter. Two integrated 5/8 threads in the housing are designed for horizontal and vertical use on a tripod.
The construction tripod BST-S is height-adjustable from 100 to 160 cm, and the leveling rod NL is extendable from 80 to 240 cm. A target plate with magnetic holder and crosshair, as well as a laser visibility glasses that increase the visibility of the laser beam by 50%, are also included.
A sturdy carrying case ensures safe storage.
2. Stabila Rotary laser LAR 350
Fully automatic, motorised rotation laser for horizontal and vertical applications as well as manual tilting in two axes. Motion control Motion control - fast, safe and convenient operation of the laser by turning the remote control. Dual slope tilt function - tilt adjustment on 2 axes by up to 5°. Scan function for working directly on the visible laser line. Section mode - limited working range in rotation mode. LED assist system - for simple operation and work safety. Integrated LEDs indicate, for example, which axis is or will be inclined. Manual alignment function - swivelling in of an axis in vertical mode. Patented Stabila Proctor System - perfectly protected, even if the laser falls from the tripod from a height of up to 1.80 metres. Waterproof and dustproof to protection class IP 65, working range up to 800 m diameter. Construction tripod BST-S: height-adjustable from 100-160 cm. Levelling staff NL: extendable from 80-240 cm. 9-piece set.
3. Stabila 12 V system cross line laser LAX 600
Sharp laser lines: The CAS-12-V battery-powered, self-levelling line laser features bright, fine 3 x 360° lines for precise layout work. It can measure up to 30 m away thanks to high-power diodes.
Versatile: Two vertical lines at right angles to each other allow you to divide the space into four 90° sections. It also includes one plumb line for vertical alignment and one horizontal line for exact height transmissions.
Extremely robust: The sturdy aluminium and glass cages, along with a shock-absorbing STABILA Softgrip jacket, protect the laser from dirt and falls. It is waterproof and dustproof to IP 65 (without battery).
Long operating time: The CAS battery 12 V LI-POWER 2.0 Ah allows for use for up to 28 hours. Short charging times are possible with fast recharging of the battery in a maximum of 45 minutes using the SC 30 charger.
Extremely practical: The set includes a flexibly positionable universal mount SUB 10 with 1/4 and 5/8 thread, as well as a mountable wall mount SWB 10 with coarse and fine adjustment.
4. Stabila Cross line plumb laser LAX 300
Self-leveling cross-line laser for work directly on the laser lines. 1 horizontal line, 1 vertical line, plumb points up and down – visible up to 20 m. The vertical line covers almost the entire room. Plumb points for transferring the layout from the floor to the ceiling. Quick self-leveling through construction-site suitable pendulum technology. Easy function switching with one-button operation. Compact, rotatable housing with retractable foot for height adjustment for direct work on U-profiles. Variable application possibilities: on the floor, on a tripod (1/4" thread), with the rare earth magnet on metallic objects, or on the wall mount. Shock-absorbing Stabila soft grip casing. Pulse-modulated laser lines allow work with an optionally available line receiver. Protection class IP 54. Belt pouch. Laser telescope support – variable positioning of lasers to a desired working height of approximately 20 cm to 365 cm.
5. Stabila Nivellierlatte
Anodised aluminium levelling staff for use when levelling with laser and receiver over long distances. Levelling staff with adjusting slide for quick and easy height determination. Deviations of ± 50 cm from the reference level can be read quickly and easily (reference height approx. 80-190 cm). Printed scale in mm graduations. Extendable up to 240 cm (transport height: 130 cm).
6. Stabila Laser receiver REC 500 RG, Stable
Universal laser receiver for quick and precise determination of the laser beam position from rotating lasers or pulse-modulated line lasers with red or green laser diodes – over long distances outdoors or in bright indoor lighting. Dual digital display for fast operation. Visual indication using arrow symbols on the display shows the position of the receiver relative to the laser's reference plane – switchable multicolored LED target guidance (red, orange, green). Switchable acoustic target guidance with adjustable volume beeping tones. Four adjustable sensitivity levels for application-specific work: ± 0.3 mm (very fine), ± 1.0 mm, ± 2.0 mm, ± 5.0 mm (very coarse). Water and dustproof according to protection class IP 67 – optimal protection against rain in outdoor use and against dust in drywall applications. Variable mounting options – bracket for attachment to leveling rods as well as an integrated magnetic system. Operating time: 50 hours.
7. Stabila Laser receiver for REC 160 RG receiver
Laser receiver for precise determination of the position of the laser beam of rotary lasers with red or green laser diode - even at long distances.Digital display on both sides for fast working - illuminated at the push of a button.Visual display: Arrow symbols in the display indicate the position of the receiver relative to the reference plane of the laser.Switchable acoustic display by means of volume-adjustable beeps.Two adjustable sensitivity levels for application-specific work - ""Fine"" with sensitivity of ± 1 mm or ""Coarse"" with sensitivity of ± 3 mm.Water- and dust-proof according to protection class IP 66.Holder for attachment to leveling staffs.Battery status display.Height of receiver line: 80 mm.Operating time: 24 hours.
8. Stabila Multiline laser LA 180 L
Self-levelling multi-line laser for high-precision work results with motorised control and an accuracy of ± 0.07 mm/m.
The auto alignment function allows the receiver to automatically control the fine alignment of the laser at distances up to 40 m, enabling fully automatic transfer of axes and creation of right angles.
Achieve precise alignment without losing the reference point, eliminating measurement errors.
Pulsed laser lines facilitate precise height measurements with the receiver, effective up to 100 m both indoors and outdoors.
Versatile use includes 3 vertical lines, 1 horizontal line, and a plumb function.
The laser produces particularly sharp, highly visible lines for fast, effective work directly on the laser line, with a range of up to 20 m indoors.
Its unique housing shape allows for positioning in room corners and over edges, such as concrete slabs, for quick checking of right angles.
The shock-absorbing soft-grip casing ensures durability.
An extensive set of accessories is included: small and large target plates, laser sighting glasses, and a carrying case.
9. Stabila Rotary laser LAR 300
Fully automatic, motor-driven rotating laser for horizontal applications, ready for use thanks to quick self-leveling within 10 seconds. Quality and precision made in Germany.
Extremely robust due to the Stabila PROTECTOR system, perfectly protected even if the laser falls from a height of up to 1.80 m from the tripod: set it up, turn it on, and continue measuring.
Water and dustproof according to protection class IP 65.
Heat and cold resistant from -10 °C to +60 °C.
Extremely easy to use: just one button press to start.
Large working range with set receiver up to 800 m diameter.
Quick height adjustments with direct, millimeter-accurate reading of the deviation from the reference level on the receiver display.
Receiver with visual and acoustic target guidance as well as two displays.
5/8" thread for mounting on a tripod.
Carrying case for easy transport.
Compatible with standard machine controls.

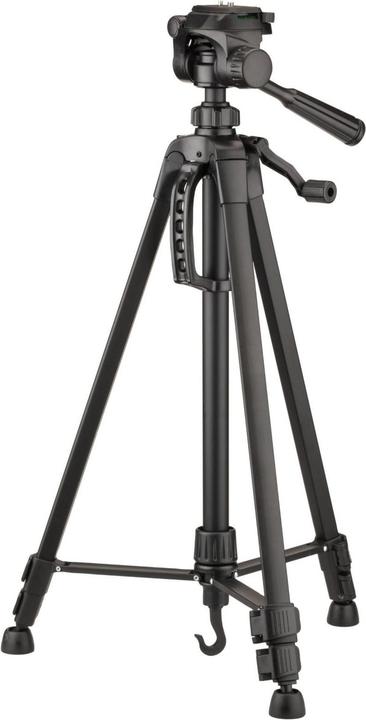

10. Stabila Tripod ST-K-S
Delivery contents:
- 1x Stabila Crank Column Tripod ST-K-S (19242)
Product description:
As an important accessory when working with measuring devices, the tripod serves to securely position laser distance meters and line lasers. With the help of the crank column, lasers can be precisely positioned at the desired working height. The tripod is adjustable in height from 55-140 cm. The built-in level helps with fine-tuning the laser. The legs with rubber caps and the spread protection ensure a firm and thus safe stand on the construction site. The tripod can be safely stored and transported using the included shoulder bag with carrying strap. With all these features, the tripod is the foundation for precise and safe work with lasers.
Technical specifications:
Manufacturer number: 19242
Height adjustable: 55-140 cm
Thread screw: 1/4"
For commercial use, please observe building regulations!.
