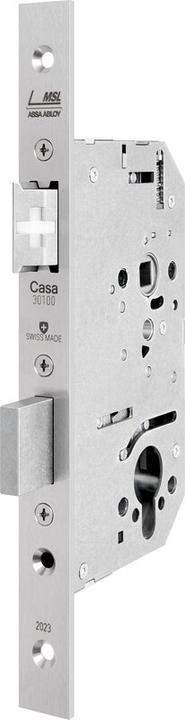

1. Assa Abloy Beta Einsteckschl. 30100.7/80/22ex248/9

The 30100 is the successor model to the 1123. It opens with a single turn of the lock in the opening direction. Closing is done manually with a single turn of the lock in the closing direction.

- Tool-free conversion for DIN left and right
- New spring concept with strong bolt springs for heavy handles
- With latch, bolt projection: single turn 20 mm
- Cylinder: 8 or 9 mm
- Available with round cylinder or profile cylinder
- Approved according to EN 12209
- Burglary-resistant up to class RC2 in suitable door systems
- Approval according to EN 1634-1 up to 3

Application Area
For new construction and renovation
Interior doors

Note
Only use bolt contact switch MSL 1886 on the frame side. more

Lock cylinders

EUR109,–

Assa Abloy Beta Einsteckschl. 30100.7/80/22ex248/9

Mortise lock

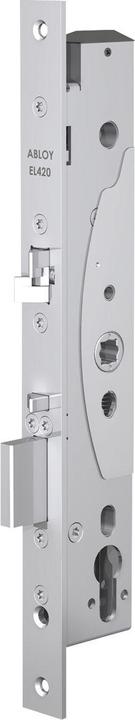

2. Assa Abloy EL 420 electric security lock, DM 35, forend 24x300 mm, stainless steel effect

With external control unitThe locks in the EL 420 series have a continuous follower and therefore require an interchangeable fitting (inside handle or panic bar, outside knob or handle bar).The lock is controlled by a card reader, code lock, timer, push-button, etc.The bolt is retracted by an electric motor and preloaded by a spring mechanism. When the door is closed, the control latch releases the pre-tensioned bolt and blocks the cross latch, which thus serves as an additional locking mechanism.The lock operates according to the working current principle and remains locked in the event of a power failure and can only be opened with a key or by operating the inside handle.Features:Self-locking with cross latch and deadbolt Mechanical sequence control between cross latch and control latch Integrated panic function via the inside lever handle Alternate function for unlocking via key from outsideApproval to DIN EN 179 and DIN EN 1125Suitable for installation in fire doorsSupervision contacts for:Bolt off / Bolt on - Control latchPushbutton actuation - Tamper loopProfile cylinderElectrical connection via EA420 motor lock control unitOperating voltage: 12 - 24 V DC stabilised (-/+ 15%) and 12 - 18 V AC (-10% / +15%)Rated current consumption: 12 V DC: max. 1300 mA inrush current, with motor operation 12 V DC 450 mA 24 V DC: max. 600 mA inrush current, with motor operation 24 V DC 220 mARelay output load capacity 24 V DC: 800 mAOperating temperature -20 °C to +60 °CProtection class (control unit) IP 40Dimensions (control unit) (W x H x D) 192 x 110 x 45 mmBolt exclusion 20 mmApprovals:DIN EN 179 EC Certificate of Conformity: 0432-CPR-00008-01DIN EN 1125 EC Certificate of Conformity: 0432-CPR-00008-02Scope of delivery: 2 levelling sleeves/adapters for 8 mm socketPin size(mm): 35Distance(mm): 92Socket(mm): 9Face width(mm): 24Forend length(mm): 300Forend material: Stainless steel effectType: EL 420Nut design: One-pieceBrand: Assa AbloyEscape door function: EC Approved na... more

Lock cylinders

EUR2356,98

Assa Abloy EL 420 electric security lock, DM 35, forend 24x300 mm, stainless steel effect

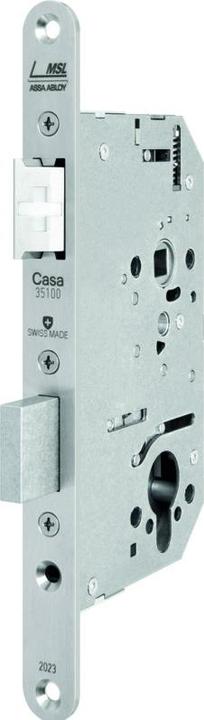

3. Assa Abloy Alpha Einsteckschl. 35100.6/80/18r/9

The 35100 is the successor model to the Casa 1255. The latch locking mechanism provides additional security. Unlocking is achieved by a single turn of the key in the opening direction. Locking is done manually with a single turn of the key in the closing direction.

- Tool-free conversion for DIN right and left
- Latch locking mechanism
- New spring concept with strong leaf springs for heavy handles
- With bolt, bolt projection: single turn 20 mm
- Cylinder: 8 or 9 mm
- Available with round cylinder or profile cylinder
- Approved according to EN12209
- Burglary-resistant up to class RC2 in suitable door systems
- Approved according to EN 1634-1 up to 3

Application area
In new construction and renovation
For exterior, house, and apartment entrance doors
For doors with higher load and security requirements in commercial areas

Note
Only use bolt switch contact MSL 1886 on the frame side. more

Lock cylinders

EUR109,–

Assa Abloy Alpha Einsteckschl. 35100.6/80/18r/9

Mortise lock

4. Assa Abloy PLANET Türdichtung KG-SL10 FH RD,DIN Links,1.459mm,F1/Silikon grau,TS 10mm

Planet KG-SL10 (sliding door), FH+RD (fire-retardant and smoke-shielding), silver anodised EV1 protection profile, bevel lip DIN L, 1459 mm, can be shortened to 1335 mm. Drop-down seal for glass sliding doors. Drop height from 5 to 18 mm. Acoustic insulation value up to 44 dB with optimum sealing. For all-glass sliding doors with 10 mm glass thickness. Planet KG-SL10 for attaching and gluing. Planet drop-down seal is glued into protection profile SL10. Unilateral and silent actuation. No scraping or trailing on the floor, thanks to parallel drop. High-quality silicone lip, lateral protrusion adjustable. Easy drop height adjustment. Automatic compensation for sloping or uneven floors. Can be shortened to the next smaller stock length. Plan in door locking mechanism (hook latch or roller retainer). 7-year warranty. Planet floor guide and cover cap for Planet KG-SL10, Planet stopping plate, type 1 (stainless steel) and cover plate. Automatic door drop-down seal Planet KG-SL10 FH+RD, suitable for fire and smoke-shielding-retardant doors, acoustic insulation level SK 1-3, single-sided release with parallel lowering and automatic compensation for sloping floors, protection profile in silver anodised EV1 or matt anodised stainless steel, for attaching and gluing, seal height of 5 to 18 mm. Silicone lip, protection profile and profile made of aluminium 25 x 46 mm, including cover plate. more

Lock cylinders

−23%

EUR299,– was EUR389,–

Assa Abloy PLANET Türdichtung KG-SL10 FH RD,DIN Links,1.459mm,F1/Silikon grau,TS 10mm

5. Assa Abloy PLANET Türdichtung KG-SL10 FH RD,DIN Links,1.334mm,F1/Silikon grau,TS 10mm

Planet KG-SL10 (sliding door), FH+RD (fire-retardant and smoke-shielding), silver anodised EV1 protection profile, bevel lip DIN L, 1334 mm, can be shortened to 1210 mm. Drop-down seal for glass sliding doors. Drop height from 5 – 18 mm. Acoustic insulation value up to 44 dB with optimum sealing. For all-glass sliding doors with 10 mm glass thickness. Planet KG-SL10 for attaching and gluing. Planet drop-down seal is glued into protection profile SL10. Unilateral and silent actuation. No scraping or trailing on the floor, thanks to parallel drop. High-quality silicone lip, lateral protrusion adjustable. Easy drop height adjustment. Automatic compensation for sloping or uneven floors. Can be shortened to the next smaller stock length. Plan in door locking mechanism (hook latch or roller retainer). 7-year warranty. Planet floor guide and cover cap for Planet KG-SL10, Planet stopping plate, type 1 (stainless steel) and cover plate. Automatic door drop-down seal Planet KG-SL10 FH+RD | 44 dB, suitable for fire and smoke-shielding-retardant doors, acoustic insulation level SK 1-3, single-sided release with parallel lowering and automatic compensation for sloping floors, protection profile in silver anodised EV1 or matt anodised stainless steel, for attaching and gluing, seal height of 5 – 18 mm. Silicone lip, protection profile and profile made of aluminium 25 x 46 mm, including cover plate. more

Lock cylinders

−10%

EUR269,– was EUR299,–

Assa Abloy PLANET Türdichtung KG-SL10 FH RD,DIN Links,1.334mm,F1/Silikon grau,TS 10mm

Mortise lock

6. Assa Abloy Electric security lock EL 560 escape door lock, backset 65

With integrated door handle control, the locks of the EL 560 model series feature a split handle rose and thus require an inside handle (or panic bar) and an outside handle. The lock is activated by a signal from a card reader, code lock, timer, button, etc. The bolt is retracted by the engaged outside handle, releasing the locking of the deadbolt. When closing the door, the control latch interacts with the deadbolt to prevent the preloaded bolt from extending and locks the deadbolt, serving as an additional locking mechanism. The adjustment for the panic side and the selection between holding and working current can be made at the lock if necessary. The operating nominal voltage is 12 - 24 V DC.

Working current version: As long as the power is on, the lock can also be opened via the outside handle. However, when power is turned off (or in case of a power failure), the outside handle is inactive.

Holding current version: As long as no power is supplied (or in case of a power failure), the lock can also be opened via the outside handle. However, when power is restored, the outside handle is inactive.

Features:
- Self-locking with deadbolt and latch
- Mechanical control between deadbolt and control latch
- Integrated panic function via the inside handle
- Override function for unlocking with a key from the outside
- Approval according to DIN EN 179 and DIN EN 1125
- Suitable for installation in fire protection doors

Technical Data:
- Operating nominal voltage 12 V to 24 V DC stabilized (-10% / +15%), at 12 V DC 480 mA inrush current for 1 sec., in operation 12 V DC 240 mA, at 24 V DC 270 mA inrush current for 1 sec., in operation 24 V DC 110 mA
- Load capacity microswitch 24 V DC: 200 mA
- Operating temperature -20 °C to +60 °C
- Bolt projection 20 mm

Approvals:
- DIN EN 179 EC conformity certificate: 0432-CPR-00008-01
- DIN EN 1125 EC conformity certificate: 0432-CPR-00008-02

With panic function featuring a split square. more

Lock cylinders

EUR1069,39

Assa Abloy Electric security lock EL 560 escape door lock, backset 65

7. Assa Abloy Electric security lock EL 460 escape door lock, backset 35

With integrated door handle control. The locks of the EL 460 model series feature a split handle rose and therefore require an inside handle (or panic bar) and an outside handle. The lock is activated by a signal from a card reader, code lock, timer, button, etc. The bolt is retracted by the coupled outside handle, releasing the locking of the deadbolt. When closing the door, the control bolt interacts with the deadbolt to exclude the preloaded bolt and lock the deadbolt, thus serving as an additional locking mechanism. The adjustment of the panic side and the selection between power and standby mode can be done at the lock if necessary. The operating nominal voltage is 12 - 24 V DC.

Working current version: As long as power is supplied, the lock can also be opened via the outside handle. However, when power is turned off (or in case of a power outage), the outside handle is inoperative.

Standby current version: As long as no power is supplied (or in case of a power outage), the lock can also be opened via the outside handle. However, when power is supplied, the outside handle is inoperative.

Features:
- Self-locking with deadbolt and latch
- Mechanical control between deadbolt and control bolt
- Integrated panic function via the inside handle
- Override function for unlocking with a key from the outside
- Approval according to DIN EN 179 and DIN EN 1125
- Suitable for installation in fire doors
- Low backset: 15 mm

Technical data:
- Operating nominal voltage 12 V to 24 V DC stabilized (-10% / +15%), at 12 V DC 480 mA inrush current for 1 sec., in operation 12 V DC 240 mA, at 24 V DC 270 mA inrush current for 1 sec., in operation 24 V DC 110 mA
- Load capacity of microswitch 24 V DC: 200 mA
- Operating temperature -20 °C to +60 °C
- Backset for tubular frame version 30, 35, 40, 45 mm
- Bolt throw 20 mm

Approvals:
- DIN EN 179 EU conformity certificate: 0432-CPR-00008-01
- DIN EN 1125 EU conformity certificate: 0432... more

Lock cylinders

EUR1069,41

Assa Abloy Electric security lock EL 460 escape door lock, backset 35

8. Assa Abloy FF Motor-519NE0018500000Multi-point lock 519Ne 24V Dc mandrel

The 519N is a self-activating panic lock with multi-point locking and a motorized drive for single-leaf doors. It meets the requirements for burglary-resistant doors, fire doors, emergency exit doors, and panic doors in accordance with EN 179 and EN 1125. A mechanical sequence control system reliably prevents unwanted extension of the bolt when the door is open. The lock can be used universally for DL/DR with a universal double action latch and switchable control latch.

It features an integrated electronic control device for external triggering or connection to the ASSA ABLOY Hi/O bus system. Integrated monitoring functions via contactless sensors allow for status queries through the external OneSystem IO module, including door status via strike plate contact, bolt retracted and extended, cylinder monitoring, and handle follower monitoring.

The lock includes an integrated motorized drive and an electronic control device for external activation without additional control, with additional functions available via the external OneSystem IO module. Hi-O bus technology enables connection to the ASSA ABLOY Hi-O bus system.

The lock is equipped with three solid, surface-hardened deadbolts with a 20 mm throw and a transverse shear stress of 20,000 N. It has a 6 mm full face plate with an integrated drive rod for added security. An optional integrated unlocking pin is available for double-leaf panic doors. Please note that the connection cable and strike plate must be ordered separately. more

Lock cylinders

EUR2779,–

Assa Abloy FF Motor-519NE0018500000Multi-point lock 519Ne 24V Dc mandrel

9. Assa Abloy Electric security lock EL 560 escape door lock, backset 55

With integrated door handle control, the locks of the EL 560 model series feature a split handle rose, requiring an interior handle (or panic bar) and an exterior handle. The lock is activated by a signal from a card reader, code lock, timer, button, etc. The bolt is retracted by the coupled exterior handle, releasing the locking of the deadbolt. When closing the door, the control latch works in conjunction with the deadbolt to exclude the pre-tensioned bolt and lock the deadbolt, thus serving as an additional locking mechanism. The adjustment of the panic side and the choice between holding and working current can be made at the lock if necessary. The operating nominal voltage is 12 - 24 V DC.

Working current version: As long as power is supplied, the lock can also be opened via the exterior handle. However, when power is turned off (or in case of a power outage), the exterior handle is inoperative.

Holding current version: As long as no power is supplied (or in case of a power outage), the lock can also be opened via the exterior handle. However, when power is supplied, the exterior handle is inoperative.

Features: self-locking with deadbolt and latch, mechanical control between deadbolt and control latch, integrated panic function via the interior handle, change function for unlocking with a key from the outside, approved according to DIN EN 179 and DIN EN 1125, suitable for installation in fire protection doors.

Technical data: Operating nominal voltage 12 V to 24 V DC stabilized (-10% / +15%), at 12 V DC 480 mA inrush current for 1 sec., in operation 12 V DC 240 mA, at 24 V DC 270 mA inrush current for 1 sec., in operation 24 V DC 110 mA. Load capacity of microswitch 24 V DC: 200 mA. Operating temperature -20 °C to +60 °C. Bolt throw 20 mm.

Certifications: DIN EN 179 EC conformity certificate, DIN EN 1125 EC conformity certificate. Panic function with split square. more

Lock cylinders

EUR1069,39

Assa Abloy Electric security lock EL 560 escape door lock, backset 55

10. Assa Abloy PLANET Türdichtung KG-SL10 FH RD,DIN Links,959mm,F1/Silikon grau,TS 10mm

Planet KG-SL10 (sliding door), FH+RD (fire-retardant and smoke-shielding), silver anodised EV1 protection profile, bevel lip DIN L, 959 mm, can be shortened to 835 mm. Drop-down seal for glass sliding doors. Drop height from 5 to 18 mm. Acoustic insulation value up to 44 dB with optimum sealing. For all-glass sliding doors with 10 mm glass thickness. Planet KG-SL10 for attaching and gluing. Planet drop-down seal is glued into protection profile SL10. Unilateral and silent actuation. No scraping or trailing on the floor, thanks to parallel drop. High-quality silicone lip, lateral protrusion adjustable. Easy drop height adjustment. Automatic compensation for sloping or uneven floors. Can be shortened to the next smaller stock length. Plan in door locking mechanism (hook latch or roller retainer). 7-year warranty. Planet floor guide and cover cap for Planet KG-SL10, Planet stopping plate, type 1 (stainless steel) and cover plate. Automatic door drop-down seal Planet KG-SL10 FH+RD | 44 dB, suitable for fire and smoke-shielding-retardant doors, acoustic insulation level SK 1-3, single-sided release with parallel lowering and automatic compensation for sloping floors, protection profile in silver anodised EV1 or matt anodised stainless steel, for attaching and gluing, seal height of 5 to 18 mm. Silicone lip, protection profile and profile made of aluminium 25 x 46 mm, including cover plate. more

Lock cylinders

EUR869,–

Assa Abloy PLANET Türdichtung KG-SL10 FH RD,DIN Links,959mm,F1/Silikon grau,TS 10mm

Mortise lock
