Best selling Mobile power distributors from Phoenix Contact
Here you’ll find the best Mobile power distributors from Phoenix Contact. The ranking is based on the best-selling products from this brand within the category. In addition to sales volume, factors such as availability, pricing, and overall customer relevance also influence the order. For each product, we include a short description and the most important highlights from customer reviews, giving you a quick overview of the most popular Phoenix Contact options. This page always stays fresh and updates automatically.
1. Phoenix Contact Vmt Ext Ps
2. Phoenix Contact DIN Rail Power Supply ST PS
New specialists expand the STEP POWER family. The 12V power supplies are ideal for e-mobility. A 3A device is available for powering single-board computers. The flat power supply with NEC Class 2 approval is specifically designed for the American market.
3. Phoenix Contact DIN-rail power supply unit (DIN-rail
Quint Power with SFB technology ensures maximum system availability. With six times the rated current for 12 ms, even standard miniature circuit breakers trip reliably and quickly for the first time. Preventive function monitoring reports critical operating states before faults occur.
Reliable starting of difficult loads is achieved through power boost. Remote monitoring is facilitated through active switching output and potential-free relay contact. Compensation of voltage drops and charging of batteries is possible with adjustable output voltage. High operational safety is ensured due to long power failure bridging of over 20 ms. Connections include screw terminals, up to and including 10 A service-friendly screw/plug-in terminals. The three-phase devices function faultlessly even in the case of permanent failure of one phase.
4. Phoenix Contact PHOE Power supply
The PHOE power supply from Phoenix Contact is a high-performance system power supply specifically designed for mounting on DIN rails. With a rated power of 1.4 kW and an output current of 40 A, this power supply provides a reliable and stable power source for various applications. The output voltage is 26 V DC, making it ideal for use in industrial environments. The PHOE power supply features a high efficiency of 95.7%, contributing to reduced energy consumption and operating costs. It is suitable for indoor use and can operate within a temperature range of -25 °C to 70 °C. The IP20 protection rating ensures that the device is protected against contact and solid foreign objects, enhancing operational safety. With a long mean time between failures (MTBF) of 517,000 hours, this power supply is a reliable choice for demanding applications.
- Input voltage of 400-500 V AC for flexible application options
- High efficiency of 95.7% to reduce energy consumption
- Operating temperature range of -25 °C to 70 °C for versatile applications
- IP20 protection rating for increased safety indoors
- Long MTBF of 517,000 hours for reliable operation.
5. Phoenix Contact QUINT4-PS/1AC/24DC/2.5/SC
Starting heavy loads with dynamic boost. Preventive function monitoring reports critical operating conditions before faults occur. Space-saving in the control cabinet due to a narrow and flat design.
6. Phoenix Contact QUINT-PS-24DC/24DC/10
Output voltage: 24 V dc
Input voltage: 18 to 32 V dc
Input nominal voltage: 24 V dc
Isolation voltage: 1.5 kV
Rated power: 240 W
Output current: 10 A
Mounting type: DIN rail mounting
Number of outputs: 1
Efficiency: 88 %
Minimum temperature: -25 °C
Maximum temperature: +70 °C
Load regulation: ±2 %
Line regulation: ±0.1 %
Width: 80 mm
The QUINT DC/DC converter transforms the direct current into an adjustable, controlled, and galvanically isolated 24 V output voltage. When a regulated and stable 24 V dc supply for a load is not available, DC/DC converters ensure the adjustment of the 24 V load: An unregulated direct current is converted into an adjustable output voltage ranging from 22.5 V to 28.5 V. Due to electrical isolation, the direct current circuits are safely electrically separated from each other. With a mounting width of only 80 mm, the housing is compact. A potential-free DC-OK output and an LED are available for signaling.
Features and benefits:
- Compact design
- Overvoltage protection
- Horizontal NS-35 mounting on DIN rail
- Electrical isolation
- Stable voltage conversion.
7. Phoenix Contact PHOENIX 1285036
Primary switched LED power supply, STEP POWER, push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 3.75 A.
8. Phoenix Contact QUINT4-PS/1AC/12DC/7.5/PT DIN-Rail Power Supply 7.5 A 90 W
The QUINT4-PS/1AC/12DC/7.5/PT DIN rail power supply from Phoenix Contact is a high-performance system power supply designed for use in industrial applications. With a nominal power of 90 watts and an output current of 7.5 amperes, this device provides a reliable power supply for various electronic systems. The primary switched-mode power supply allows for efficient conversion of alternating current to direct current, with the output voltage set at 12 V DC. The power supply is suitable for mounting on DIN rails and features a push-in connection that ensures easy and secure wiring. The operating temperature ranges from -25 °C to 70 °C, making it suitable for use in different environments. With a compact design and a weight of 370.7 g, it is easy to install and integrate.
- High efficiency with an efficiency rating of 91.5%
- Isolation voltage of 4 kV for enhanced safety
- MTBF of 1,221,000 hours for long-term reliability
- Protection class IP20, suitable for indoor use
- Adjustable output voltage between 12 V and 15 V.
Mobile power distributors
EUR125,09
Phoenix Contact QUINT4-PS/1AC/12DC/7.5/PT DIN-Rail Power Supply 7.5 A 90 W

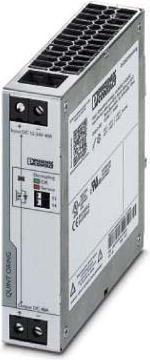

9. Phoenix Contact QUINT4 Redundancy Module 12/24Vdc 1x40A
The QUINT4 Redundancy Module from Phoenix Contact is a reliable solution for ensuring stable power supply in systems that require high availability. With a nominal voltage of 12/24 Vdc and a nominal current of 40 A, this module offers an effective way to increase redundancy in power supply applications. It is specifically designed for use with QUINT POWER power supplies and allows for easy integration into existing systems. The module is suitable for mounting on DIN rails, which facilitates installation and replacement. By using high-quality materials and a thoughtful design, the QUINT4 module ensures a long lifespan and high reliability, making it an ideal choice for industrial applications.
- Enables redundancy in power supply applications
- Easy mounting on DIN rails
- Compatible with QUINT POWER power supplies.
10. Phoenix Contact QUINT4-PS/1AC/24DC/2.5/PT
AC or DC input voltage: AC
Minimum input voltage: 100 V AC, 110 V DC
Output voltage: 24 V DC
Minimum output voltage: 24 V DC
Maximum output voltage: 28 V DC
Output current: 2.5 A
Rated power: 60 W
Number of outputs: 1
Electrical phases: 1
Type: Switch Mode
Dimensions: 32 x 90 x 106 mm
Width: 32 mm
Depth: 90 mm
Quint 4 power supply units from Phoenix Contact. The new generation of TRIO POWER power supplies from Phoenix Contact is specifically designed for use in mechanical engineering. All functions and the space-saving design are tailored to meet the high demands in this field. The power supplies for DIN rail mounting feature a robust electrical and mechanical construction that ensures reliable power supply to all loads even under harsh environmental conditions. To ensure high system availability for all machines and systems, these new Trio power supplies offer dynamic power boosting, capable of starting heavy loads with 150 percent of the rated current for five seconds.
Features and benefits:
- Robust construction
- Available in single-phase and three-phase
- Protection class IP20
- Tool-free plug connection
- High MTBF (Mean Time Between Failure) values of over 1 million hours
- Active function monitoring with DC OK LED
- Potential-free signal contact to ensure the safe supply of all connected 24 V DC loads
- Temperature range from -25 °C to +70 °C
- DIN rail mounting
Typical applications:
Quint power supplies (PSU, Power Supply Unit) can be used within the automotive industry in control cabinets or in process technology to ensure uninterrupted production. Due to their coating, they can be deployed in environments with corrosive gas, dust, and 100% humidity.
