Best Striebel & John products in the Mobile power distributors category
On this page you'll find a ranking of the best Striebel & John products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Striebel & John NH load-break switch
The NH load disconnect switch ZH411 from Striebel & John is a reliable device for separating electrical loads in system power supplies. With a maximum rated current of 160 A and a maximum operating voltage of 400 V, this load disconnect switch is designed for indoor use. It features a robust construction and is suitable for mounting on disconnecting crossbars. The load disconnect switch is equipped with a cover handle that allows for easy operation. The IP30 protection rating ensures that the device is protected against dust and contact, enhancing operational safety. The NH load disconnect switch is an essential component in electrical installations that require safe and efficient load separation.
- Maximum rated current of 160 A
- Suitable for indoor applications
- Robust construction with IP30 protection rating
- Easy operation with cover handle
- Mounting on disconnecting crossbars possible.

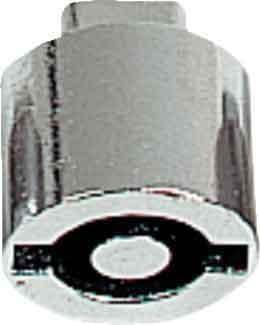

2. Striebel & John Actuating mandrel
Striebel ZH130 operating mandrel 3mm.
3. Striebel & John Striebel&John NH load-break switch ZH414
Striebel&John NH switch-disconnector ZH414 Manufacturer :Striebel&John Designation :NH switch-disconnector 160A Type :ZH414 Design as main switch :yes Design as safety switch :no Max. Rated operational voltage Ue at AC :400 V Rated continuous current Iu :160 A Conditional rated short-circuit current Iq :50 kA Rated short-time withstand current Icw :50 kA Suitable for fuse links :NH00 Number of poles :3 With fuse monitoring :no Connection type main circuit :clamping bracket Cable entry :other Equipped with connectors :no Suitable for floor mounting :no Suitable for front mounting :no Suitable for busbar mounting :yes Version of actuating element :cover handle Position of actuating element :front Motor drive optional :no Motor drive integrated :no Version as EMERGENCY STOP device :no Protection class (IP), front side :IP30 Striebel&John NH switch-disconnector ZH414: further details Fuse switch-disconnector NH00, rated current (In) max. 160 A, without disconnector panels, with U-clamps up to 50 mm², for mounting with EDF mounting frame on busbar systems, Cu 12 x 5 mm or Cu 12 x 10 mm, busbar spacing 40 mm. , EAN: 4011617629504.

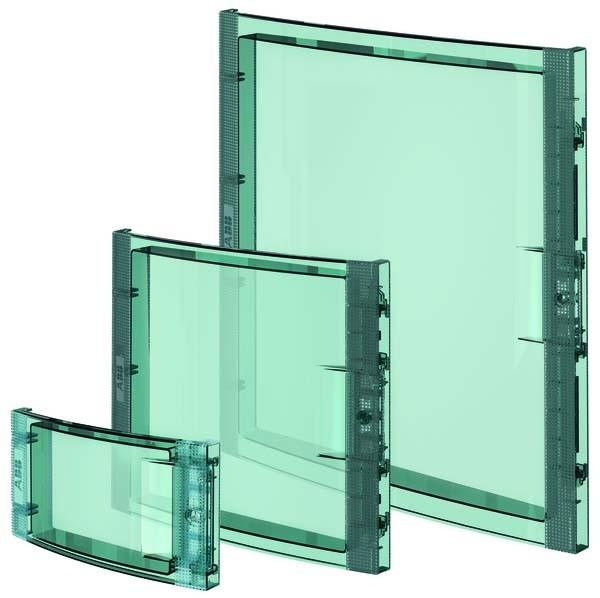

4. Striebel & John Striebel&John Door transparent M65TT336
Striebel & John Transparent Door M65TT336
Manufacturer: Striebel & John
Description: Transparent Door M65 3x12
Type: M65TT336
Design: Protective Door
Design as Viewing Door: Yes
Design as Door for Circuit Breaker Locking: No
Width: 330 mm
Height: 530 mm
Depth: 445 mm
EMC Version: No
Material: Plastic
Surface Finish: Untreated
Color: Other
Protection Class (IP): IP65
The transparent door in Petrol Blue has an opening angle of 180 degrees. The door stop can be easily changed by rotating the front frame or the entire circuit distributor. The ergonomic handle with snap closure simplifies the opening and closing of the door. A safety lock can be optionally installed. Transparent door compatible with the Mistral 65 series circuit distributors, M65W336TN3, 3-row, 3 x 12 module units. EAN: 8000126107180.
5. Striebel & John Cavity wall set UZ90P4
For retrofitting a sub-frame manifold to a cavity wall manifold. For wall thicknesses from 8 - 35 mm.
