Best Vortice products in the Ventilation fan category
On this page you'll find a ranking of the best Vortice products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

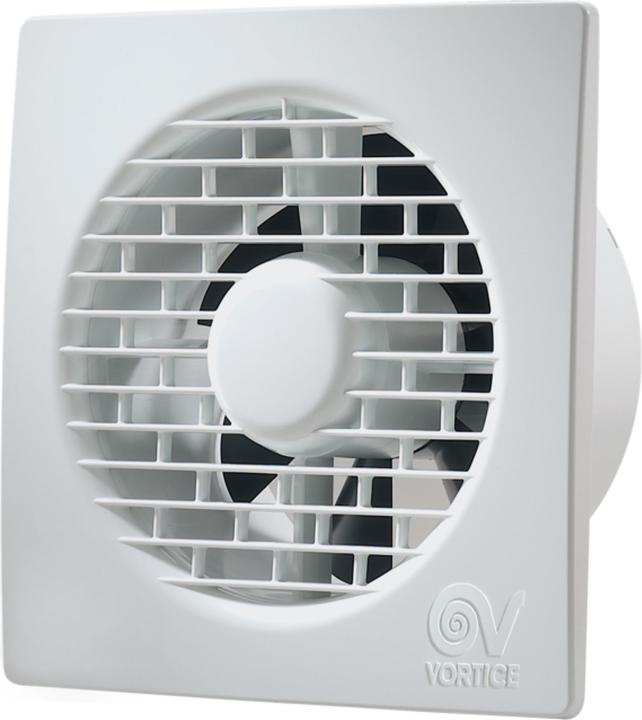

1. Vortice Filo MF 100
Dimensions and technical details: 220-240 Volt ~ 50 Hertz. Various options available. Housing colour: white. Housing material: UV-resistant ABS plastic. Nominal size: 100 mm. Max. wattage: 15 W. Max. current consumption: 0.09 A. Revolutions per minute: 2400. Speed levels: 1. Max. airflow rate: 85 m³/h. Total pressure Pmax: 29 Pa. Sound pressure level Lp-3m: 31 dB(A). Max. temperature for continuous operation: 50°C. Protection code: IPX4. Protection class: II. Weight: 0.51 kg. Thermal overload protection. Integral shutter flap prevents cold air from infiltrating. Used to extract air from the inside directly to the outside. Mounting options: wall mounting (horizontal, vertical, diagonal position). Optional condensation gasket for ceiling installation kit sold separately.
Type: Equipment
Filo MF 100: Standard
Filo MF 100 T: Time delay (adjustable 2-30 min)
Filo MF 100 THCS: Time.

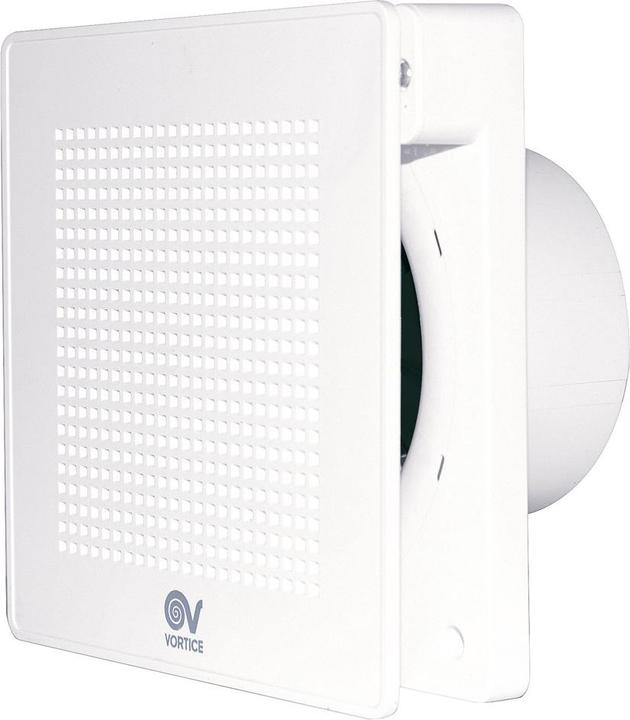

2. Vortice Punto Evo Me
Dimensions and technical data
- 230 - 240 Volt / 50 Hertz
- Material: Motor bracket, front grille and non-return flaps made of impact-resistant, UV-resistant ABS plastic
- Diagonal impeller made of polypropylene
- Colour: White
- Selectable design: ME 100 LL / ME 100 LL T / ME 100 LL T PIR / ME 100 LL TP / ME 100 LL TP HCS
- Main features: Two-stage, low power consumption, high output
- Quick and easy installation, particularly space-saving
- Installation possible in any position (horizontal, vertical or diagonal)
- Quality: Long, trouble-free service life of the appliance (ball-bearing motor with thermal overload protection)
- Control: 2-stage shaded-pole motor
- Power min. / max. (Watt): 5 / 9
- Current consumption min. / max. (amperes): 0.039 / 0.052
- Total pressure Pmax min. / max. (Pa): 27.46 / 46.09
- Sound pressure Lp-3m min. / max. (dB(A)): 20.8 / 26.9
- Speed min. / max. (rpm): 1700 / 2240
- Air flow rate min. / max. (m³/h): 65 / 95
- Protection class: IP45 (splash-proof), protection class II
- Very quiet, low noise development with high performance
- Service life: Approx. 30 years.

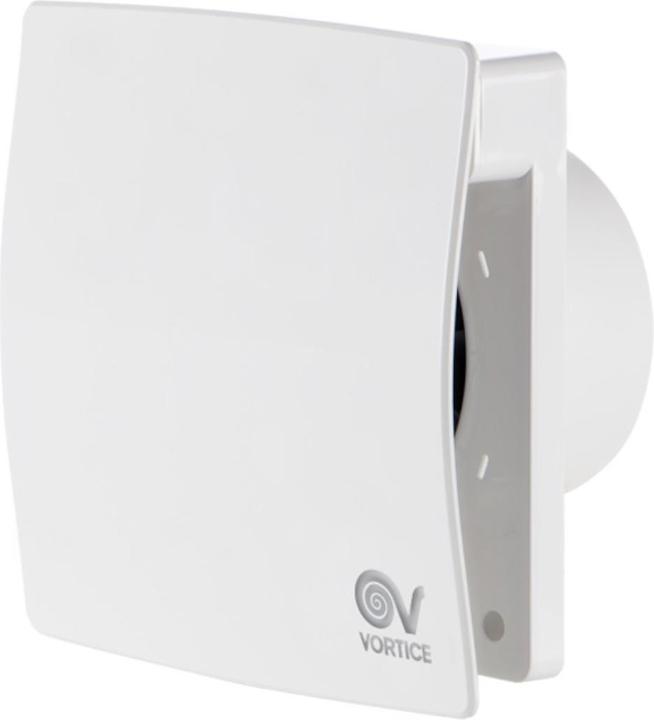

3. Vortice Punto Evo Flexo MEX
The Punto Evo Flexo MEX by Vortice is a powerful ventilation fan specifically designed for exhaust in small spaces such as restrooms and bathrooms. With a compact design and a nominal diameter of 100 mm, this fan offers an air flow rate of up to 90 m³/h, making it ideal for efficient air circulation. The fan is made from UV-resistant, non-yellowing plastic and is finished in a simple pure white, making it a discreet addition to any room. The ball-bearing motor ensures quiet operation with a sound pressure level of only 26.9 dB(A), while the integrated backdraft damper prevents the ingress of cold air. The thermal overload protection provides additional safety and longevity for the device. The fan can be mounted on both walls and ceilings, allowing for flexible installation.
- Energy-efficient performance of 9 W
- Maximum transport medium temperature of +50°C
- Protection class IP45 for increased durability
- Integrated backdraft damper to prevent cold air ingress
- Ball-bearing motor for quiet operation and longevity.

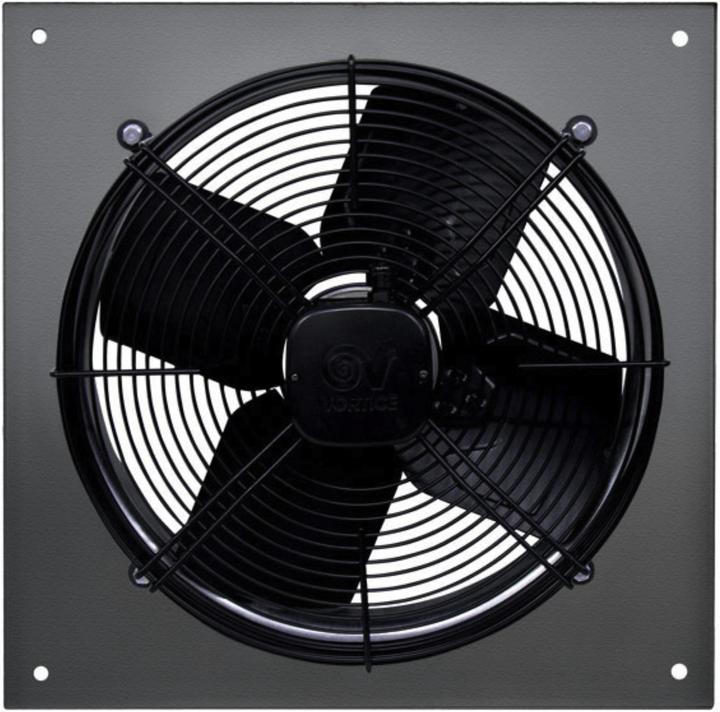

4. Vortice A-E / T 400 V
The A-E / T 400 V ventilation fan from Vortice is a powerful solution for air circulation in commercial and industrial environments. With an airflow of up to 7309 m³/h and a power rating of 616 watts, this radial fan provides efficient ventilation for various applications, including hospitals, warehouses, factories, and gyms. The fan is equipped with a closed, maintenance-free asynchronous motor that features thermal overload protection. Its robust construction made of cold-rolled steel and weather-resistant epoxy powder coating ensures long life and reliability. Additionally, the fan is suitable for use in temperature ranges from -30°C to 50°C and has an IP54 protection rating, making it splash-proof. The low noise level of 61 dB ensures that operation remains discreet even in noise-sensitive environments.
- Energy-efficient radial fan with 7309 m³/h airflow
- Maintenance-free asynchronous motor with thermal overload protection
- Robust construction made of cold-rolled steel with weather-resistant coating
- Suitable for temperatures from -30°C to 50°C
- IP54 protection rating for additional splash-proof protection.

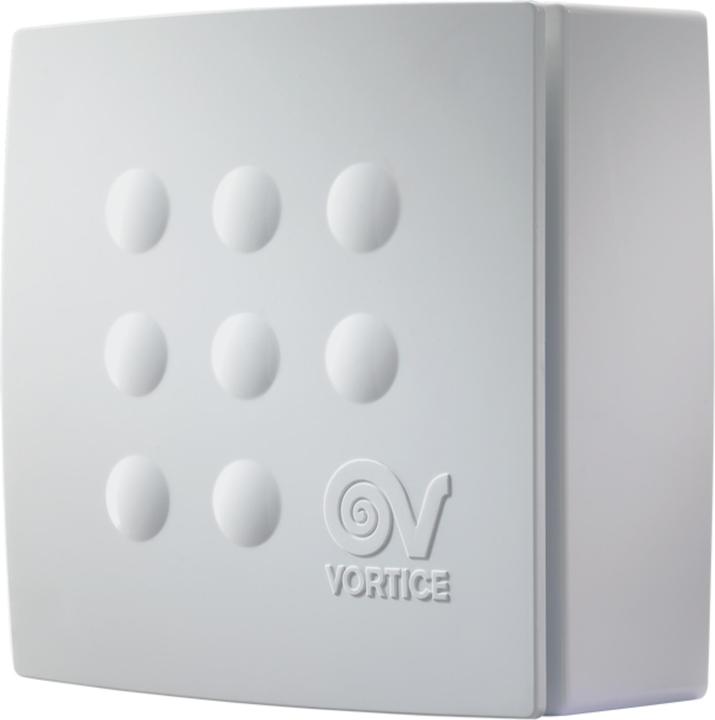

5. Vortice Quadro Super T
The Quadro Super T from Vortice is a powerful ventilation fan designed for efficient air circulation in various applications. With a robust housing made of non-yellowing and UV-resistant ABS plastic, this fan not only offers durability but also an appealing look. The fan features three speed settings, allowing for flexible adjustment to individual needs. The airflow ranges from 140 to 280 m³/h, making it ideal for use in residential and commercial spaces. Additionally, the integrated thermal overload protection ensures extra safety during operation. The Quadro Super T is easy to install and can be mounted in any position, making it a versatile solution for ventilation.
- Adjustable timer from 3 to 20 minutes to control operation as needed
- Washable synthetic fiber filter for easy maintenance and long-term efficiency
- Integrated backdraft damper prevents cold air ingress when the fan is turned off
- Self-lubricating bearings ensure quiet and low-maintenance operation
- IPX4 protection rating guarantees safe use in humid environments.

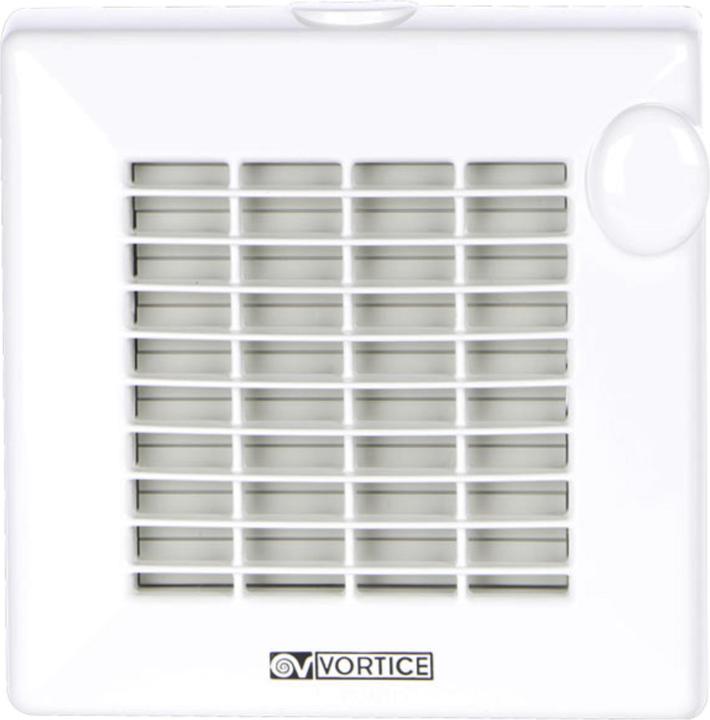

6. Vortice Punto M 150 A T-HCS LL
Dimensions and Technical Data
- 220-240 V ~ 50 Hz
- Housing color: white
- Housing material: UV-resistant ABS plastic
- Nominal diameter: 150 mm
- Bearings: ball bearings
- Speed levels: 1
- Power: 30 W
- Current consumption: 0.15 A
- Revolutions per minute: 2100
- Max. air flow rate: 335 m³/h
- Max. sound pressure Lp-3m: 46 dB(A)
- Max. total pressure Pmax.: 59 Pa
- Protection class: IPX4
- Protection category: II
- Front cover: 214 x 215 x 47 mm
- Total depth: 117 mm
- Diameter of connection nozzle: 156 mm
- Weight: 1.1 kg
- Adjustable after-run (3-20 min), humidity sensor (60-90% r.H.): the device switches off after the set after-run time once the threshold value is undershot
- Thermal overload protection
- Automatic internal shutter against cold air ingress
- Mounting options: wall, ceiling.

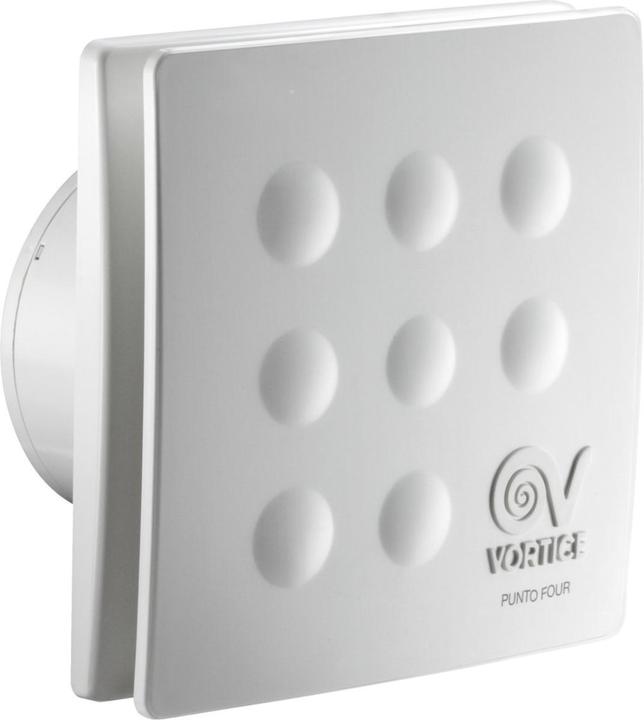

7. Vortice Punto Four MFO
Dimensions and technical details:
- Voltage: 220-240 Volt
- Frequency: 50 Hertz
- Various options available
- Housing colour: white
- Housing material: UV-resistant ABS plastic
- Nominal size: 90 mm
- Maximum wattage: 14 W
- Maximum current consumption: 0.08 A
- Revolutions per minute: 2500
- Speed levels: 1
- Maximum airflow rate: 65 m³/h
- Total pressure Pmax: 25 Pa
- Sound pressure level Lp-3m: 29.6 dB(A)
- Maximum temperature for continuous operation: 50°C
- Protection code: IPX4
- Protection class: II
- Weight: 0.55 kg
- Thermal overload protection
- Integral shutter flap prevents cold air from infiltrating
- Used to extract air from the inside directly to the outside
- Mounting options: wall mounting (horizontal, vertical, diagonal position)
- Optional condensation gasket for ceiling installation kit sold separately
Type: Punto Four MFO 90
Equipment: Standard
Controller: Can be added
Type: Punto Four MFO 90 T
Equipment: Time delay (adjustable).
8. Vortice Punto MG
Dimensions and technical details:
- Voltage: 220-240 V ~ 50 Hz
- Housing colour: White
- Housing material: ABS plastic, non-yellowing, UV-resistant
- Nominal size: 120 mm
- Speed levels: 1
- Wattage: 20 W
- Current consumption: 0.12 A
- Revolutions per minute: 2250
- Airflow rate: 160 m³/h
- Sound pressure level (Lp-3m): 43 dB(A)
- Total pressure (Pmax): 44 Pa
- Max. temperature of transported air: +50°C
- Diameter: 119 mm
- Length: 103 mm
- Weight: 0.6 kg
- IP code: IPX4
- Ball-bearing motor
- Thermal overload protection
- Integral non-return valve prevents cold air from infiltrating the system
- Mounting options: Any position
- Suitable for air supply and air extraction (depending on the mounting direction) in bathrooms, washrooms, kitchens, etc.
9. Vortice Punto M 150 A P
Dimensions and technical details:
- Voltage: 220-240 V ~ 50 Hz
- Housing colour: white
- Housing material: UV-resistant ABS
- Nominal size: 150 mm
- Bearings: plain bearing
- Speed levels: 1
- Wattage: 30 W
- Current consumption: 0.15 A
- Revolutions per minute: 2100
- Maximum airflow rate: 335 m³/h
- Maximum sound pressure level (Lp-3m): 46 dB(A)
- Maximum total pressure (Pmax): 59 Pa
- IP rating: IPX4
- Insulation class: II
- Front cover dimensions: 214 x 215 x 47 mm
- Total depth: 117 mm
- Diameter of duct connector: 156 mm
- Weight: 1.1 kg
- Pull switch operation: on/off
- Thermal overload protection
- Automatic internal shutters prevent cold air from infiltrating the system
- Mounting options: wall, ceiling.

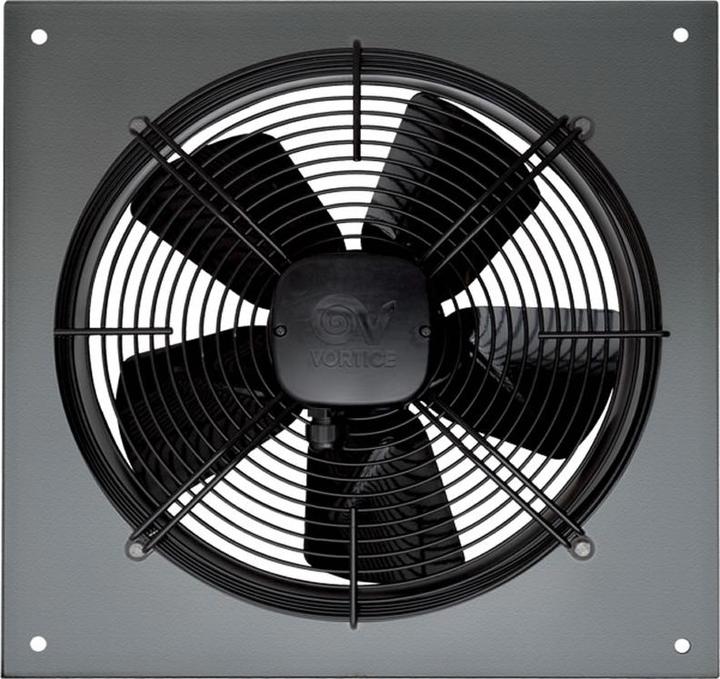

10. Vortice A-E / M 230 V
The A-E / M 230 V ventilation fan from Vortice is a powerful and reliable fan designed for use in various commercial and industrial environments. With an air flow rate of 4063 m³/h and a power of 334 W, this fan provides effective air circulation, which is beneficial in warehouses, hospitals, nightclubs, offices, theaters, factories, gyms, and restaurants. The fan is equipped with a maintenance-free, ball-bearing external rotor motor that ensures long life and reliable operation. Its robust construction made of cold-rolled, phosphated steel with a weather-resistant epoxy powder coating guarantees high resistance to environmental influences. With an IP54 protection rating, the fan is also suitable for demanding conditions. Installation is straightforward and can be done on walls, making it a flexible solution for various applications.
- Maintenance-free, ball-bearing external rotor motor for high reliability
- Robust construction made of cold-rolled steel with weather-resistant coating
- Suitable for various commercial and industrial environments
- High air flow rate of 4063 m³/h for effective ventilation
- IP54 protection rating for additional protection against dust and splashes.
